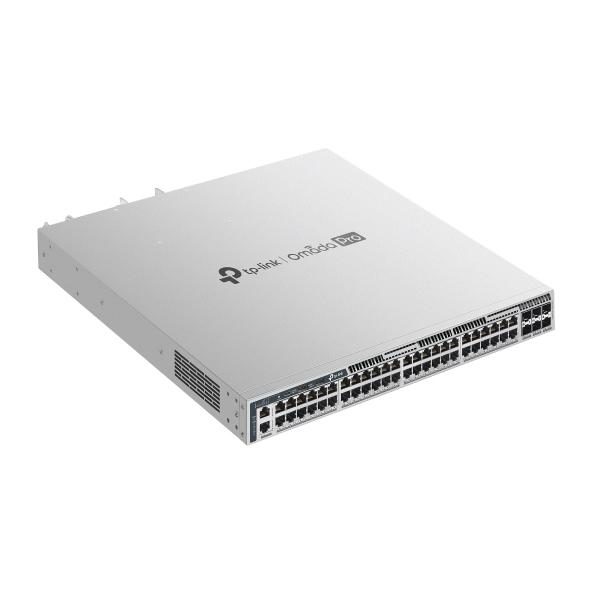

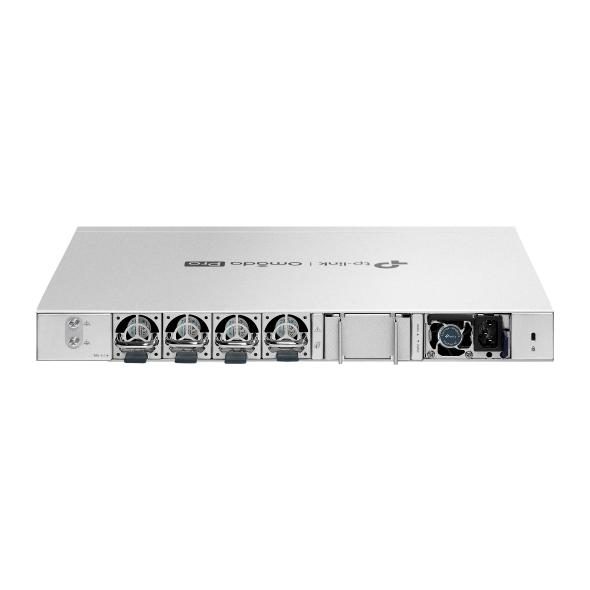

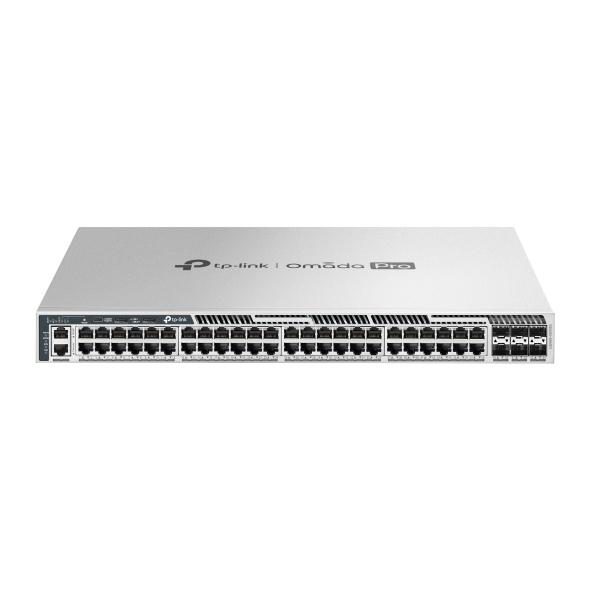

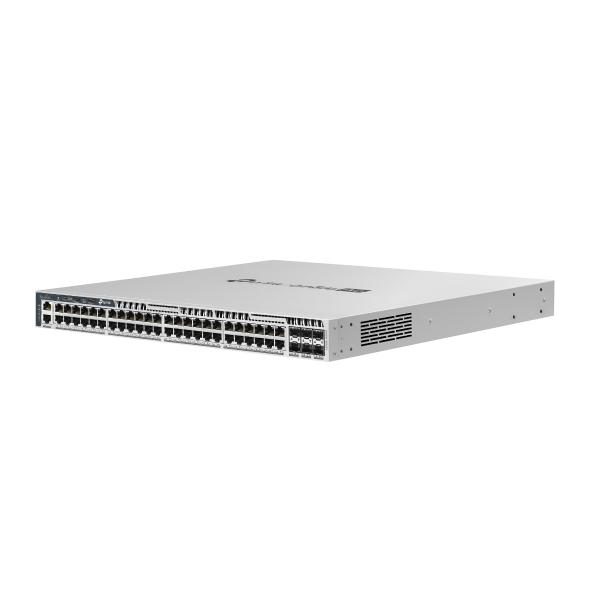

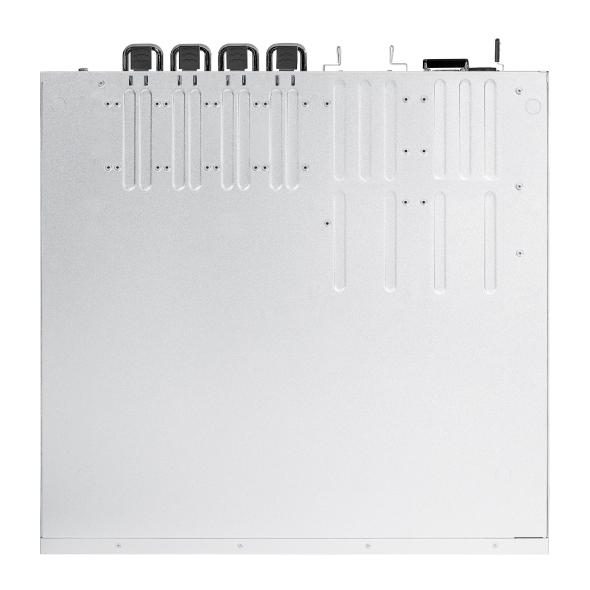

TP-Link Omada Pro S6500-48M6Y network switch Managed L3 2.5G Ethernet (100/1000/2500) 1U Grey
TP-LinkModel S6500-48M6Y
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Flash memory
- 32 MB
- Rate limiting
- Yes
- Internal memory
- 512 MB
Overview
TP-Link Omada Pro S6500-48M6Y network switch Managed L3 2.5G Ethernet (100/1000/2500) 1U Grey is a TP-Link switches & adapter with a number of vlans of 4000 and a virtual lan features of IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Number of VLANs is 4000. Virtual LAN features is IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN. Packet buffer memory is 3 MB. Switch type is Managed. Flow control support is Yes. Authentication type is AAA, RADIUS, TACACS+. SSH/SSL support is Yes. Loop protection is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|
| Flash memory | 32 MB |
|---|---|
| Rate limiting | Yes |
| Internal memory | 512 MB |
|---|
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Width | 440 mm |
|---|---|
| Depth | 420 mm |
| Height | 44 mm |
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | Grey |
|---|---|
| Number of fans | 4 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Power consumption (max) | 635.7 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Multicast support | Yes |
|---|
| DHCP features | DHCP relay, DHCP server, DHCPv6 relay, DHCPv6 snooping |
|---|---|
| Password protection | Yes |
| IGMP snooping | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Static port security | Yes |
| MAC address table | 32000 entries |
|---|---|
| Switching capacity | 540 Gbit/s |
| Forwarding rate | 401.7 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| 10G support | Yes |
|---|---|
| Static route | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45/Micro-USB |
| SFP28 ports quantity | 6 |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L3 |
| Cloud-managed | Yes |
| ARP inspection | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
