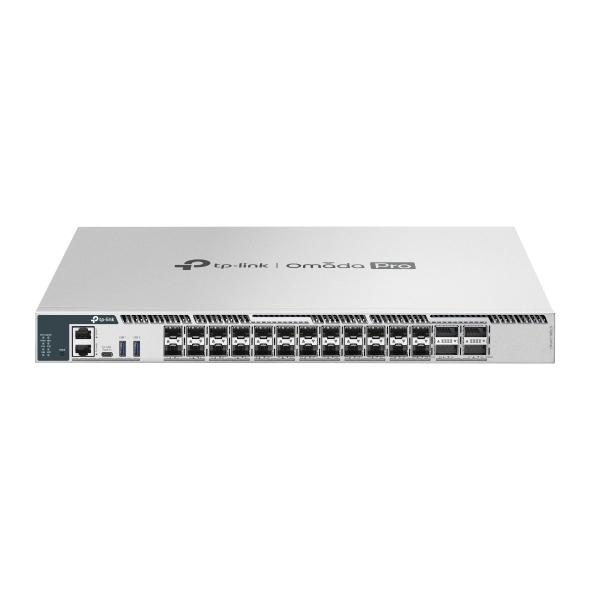

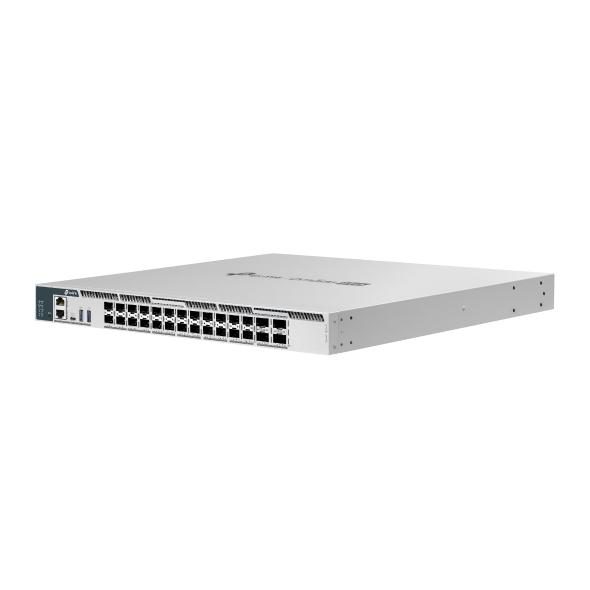

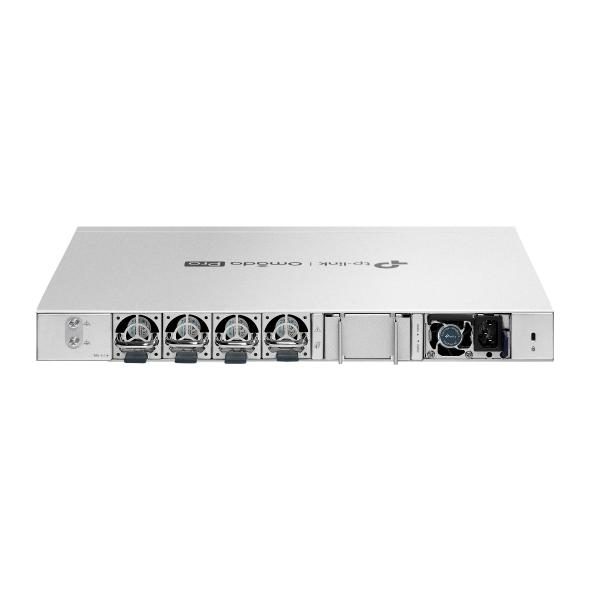

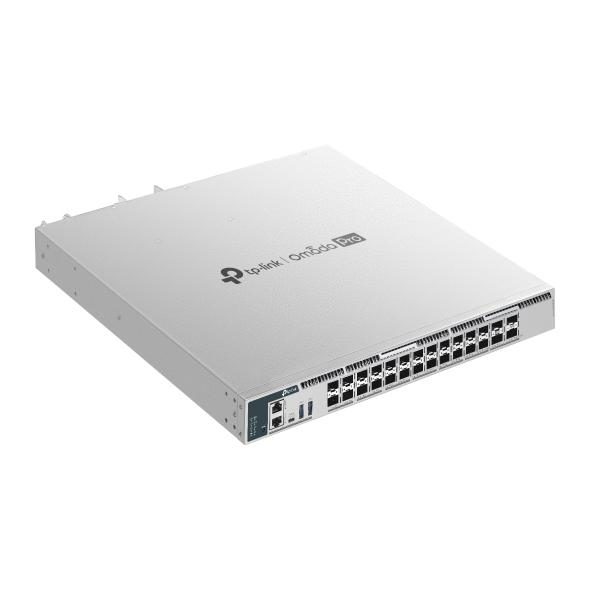

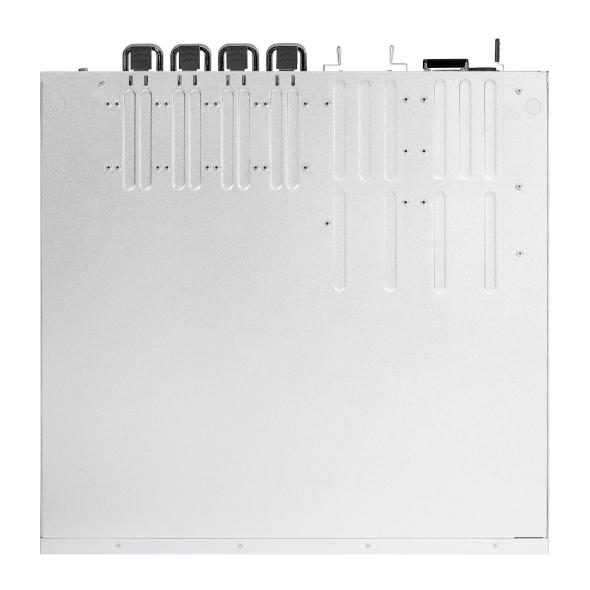

TP-Link Omada Pro S7500-24Y4C network switch Managed L3 Grey
TP-LinkModel S7500-24Y4C
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Cables included
- AC, LAN (RJ-45)
- Quick start guide
- Yes
- Rate limiting
- Yes
Overview
TP-Link Omada Pro S7500-24Y4C network switch Managed L3 Grey is a TP-Link switches & adapter with a virtual lan features of IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN and a packet buffer memory of 8 MB. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Virtual LAN features is IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN. Packet buffer memory is 8 MB. Heat dissipation is 1658.78 BTU/h. Switch type is Managed. Flow control support is Yes. Authentication type is AAA, RADIUS, TACACS+. SSH/SSL support is Yes. Link aggregation is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|
| Cables included | AC, LAN (RJ-45) |
|---|---|
| Quick start guide | Yes |
| Rate limiting | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 380 mm |
| Height | 44 mm |
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Stackable | Yes |
|---|---|
| Product colour | Grey |
| Number of fans | 4 fan(s) |
| Rack mounting | Yes |
| Heat dissipation | 1658.78 BTU/h |
|---|
| Power consumption (max) | 137.63 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| MAC address filtering | Yes |
|---|---|
| DHCP features | DHCP relay, DHCP server |
| IGMP snooping | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| Static port security | Yes |
| MAC address table | 128000 entries |
|---|---|
| Switching capacity | 2000 Gbit/s |
| Forwarding rate | 810 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 8 MB |
| 10G support | Yes |
|---|---|
| Static route | Yes |
| Networking standards | IEEE 802.1p |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN |
| Basic switching RJ-45 Ethernet ports type | No |
|---|---|
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45/USB Type-C |
| QSFP28 ports quantity | 4 |
| SFP28 ports quantity | 24 |
| Access Control List (ACL) | Yes |
|---|---|
| Switch layer | L3 |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
