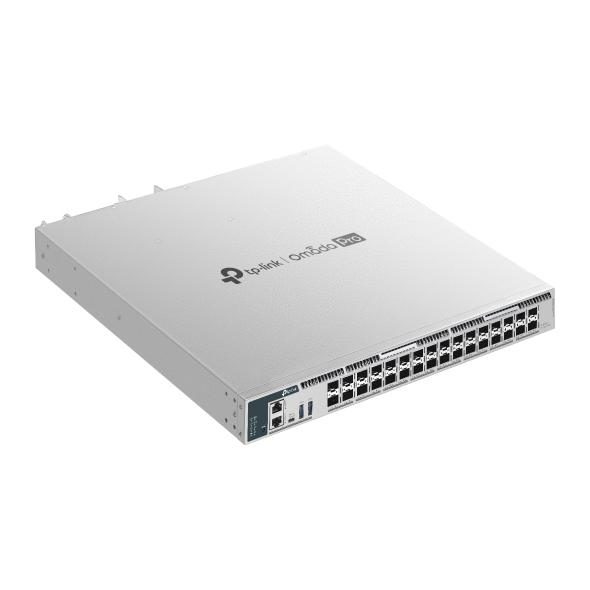

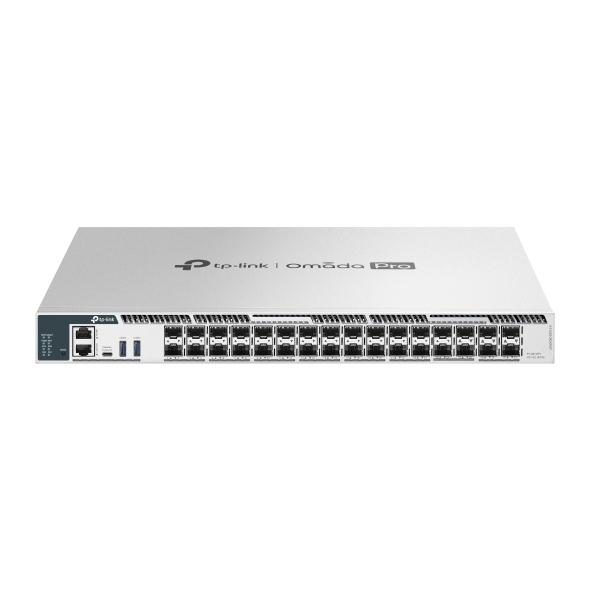

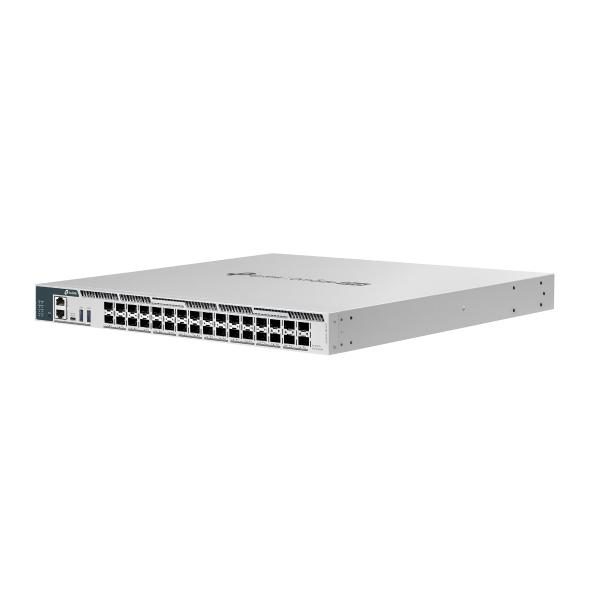

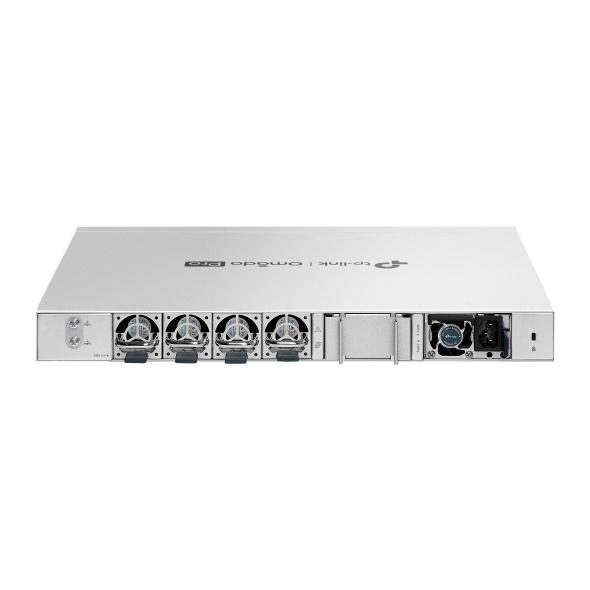

TP-Link Omada Pro S7500-26XF6Y network switch Managed L3 1U Grey
TP-LinkModel S7500-26XF6Y
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Rate limiting
- Yes
- Width
- 440 mm
- Depth
- 380 mm
Overview
TP-Link Omada Pro S7500-26XF6Y network switch Managed L3 1U Grey is a TP-Link switches & adapter with a power connector of AC-in jack and a virtual lan features of IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is AC-in jack. Virtual LAN features is IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN. Packet buffer memory is 8 MB. Heat dissipation is 295.85 BTU/h. Switch type is Managed. Flow control support is Yes. Rack mount kit is Yes. Authentication type is AAA, RADIUS, TACACS+. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|
| Rate limiting | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 380 mm |
| Height | 44 mm |
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 295.85 BTU/h |
|---|
| Cables included | AC, LAN (RJ-45) |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Power consumption (max) | 86.7 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Stackable | Yes |
|---|---|
| Product colour | Grey |
| Rack mounting | Yes |
| Form factor | 1U |
| Multicast support | Yes |
|---|
| IP-MAC-Port binding | Yes |
|---|---|
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping |
| IGMP snooping | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Static port security | Yes |
| MAC address table | 128 entries |
|---|---|
| Switching capacity | 820 Gbit/s |
| Forwarding rate | 610.1 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 8 MB |
| 10G support | Yes |
|---|---|
| Static route | Yes |
| Networking standards | IEEE 802.1p |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| SFP module slots quantity | 6 |
| SFP+ module slots quantity | 26 |
| Console port | RJ-45/USB Type-C |
| Power connector | AC-in jack |
| Web-based management | Yes |
|---|---|
| Switch layer | L3 |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
