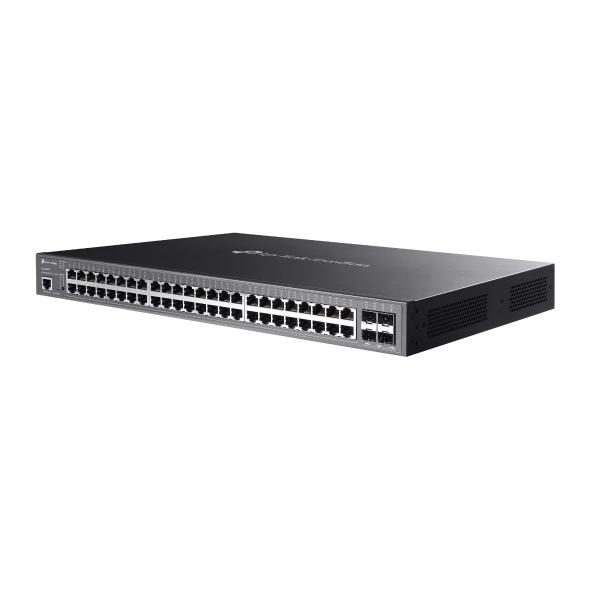

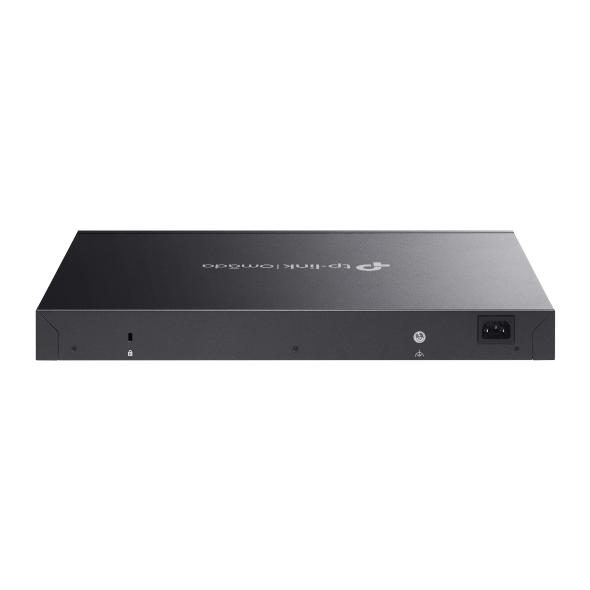

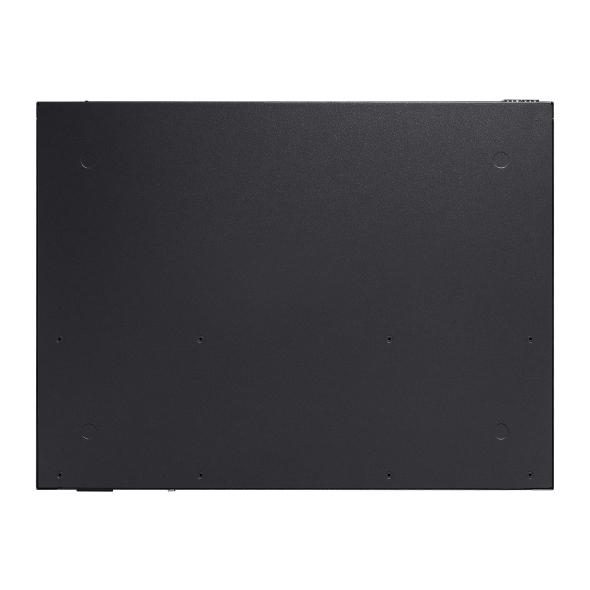

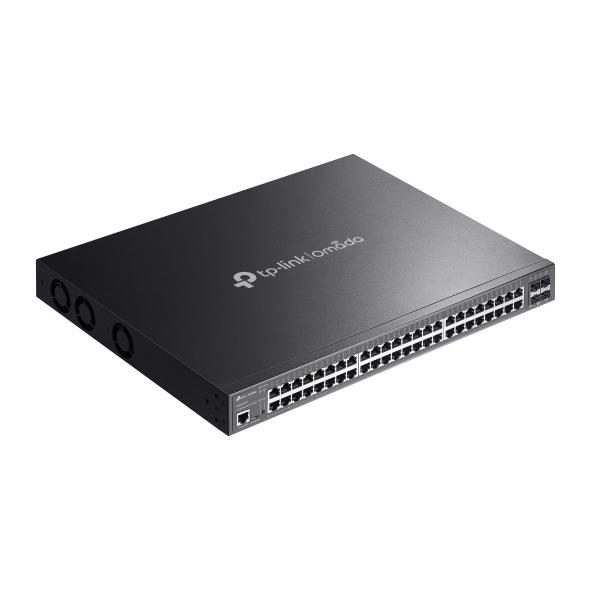

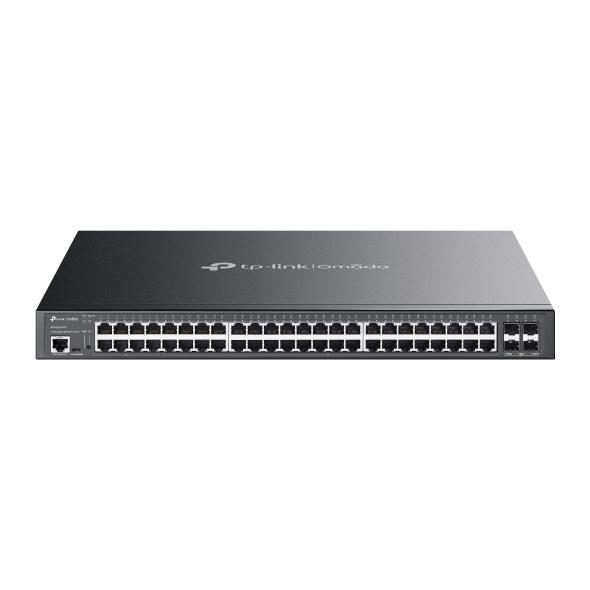

TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
TP-LinkModel SG3452XMPP
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Certification
- CE, FCC, RoHS
- Cables included
- AC
- Quick start guide
- Yes
Overview
TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black is a TP-Link switches & adapter with a power connector of AC-in jack and a certification of CE, FCC, RoHS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is AC-in jack. Certification is CE, FCC, RoHS. Reset button is Yes. Packet buffer memory is 12 MB. Heat dissipation is 2169.2 BTU/h. Switch type is Managed. Flow control support is Yes. Authentication is Auto VLAN, Guest VLAN. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|---|
| Certification | CE, FCC, RoHS |
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rate limiting | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 330 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Product colour | Black |
|---|---|
| Number of fans | 3 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Heat dissipation | 2169.2 BTU/h |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 40 |
|---|---|
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 750 W |
| Power consumption (max) | 635.7 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | Yes |
| Multicast support | Yes |
|---|
| IP-MAC-Port binding | Yes |
|---|---|
| MAC address filtering | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server |
| System event log | Yes |
| IGMP snooping | Yes |
| Authentication | Auto VLAN, Guest VLAN |
| SSH/SSL support | Yes |
| Static port security | Yes |
| BPDU filtering/protection | Yes |
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.9 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| 10G support | Yes |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Head-of-line (HOL) blocking | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L2+ |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| Reset button | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
