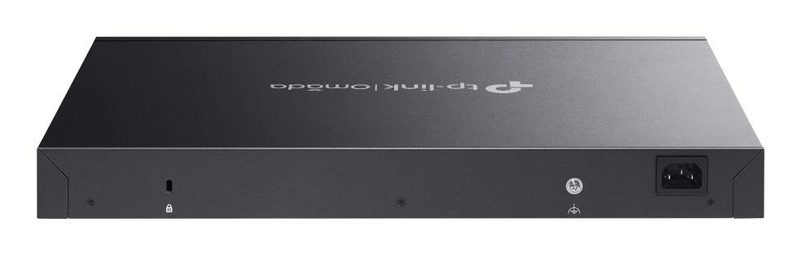

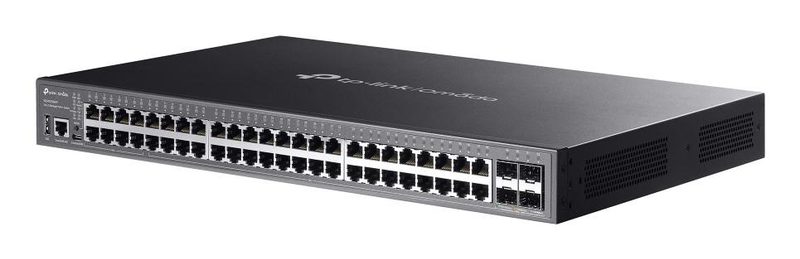

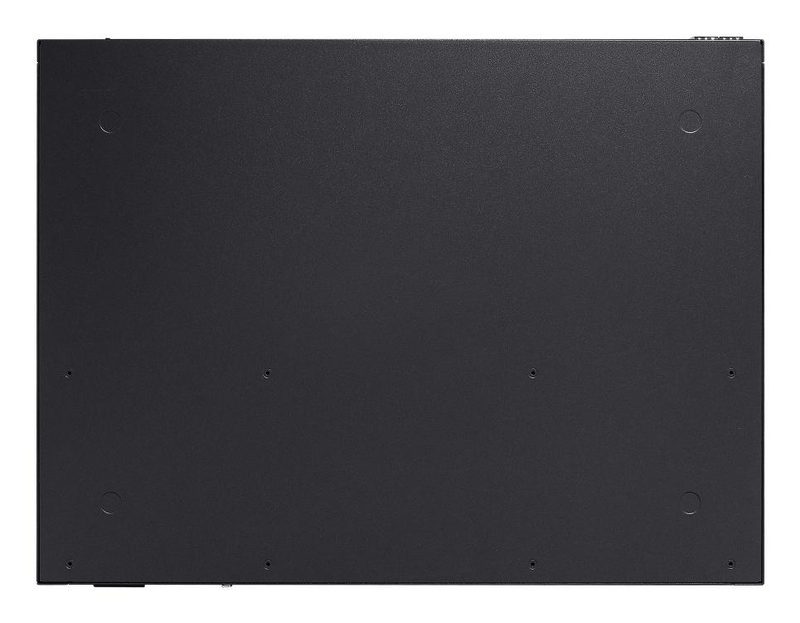

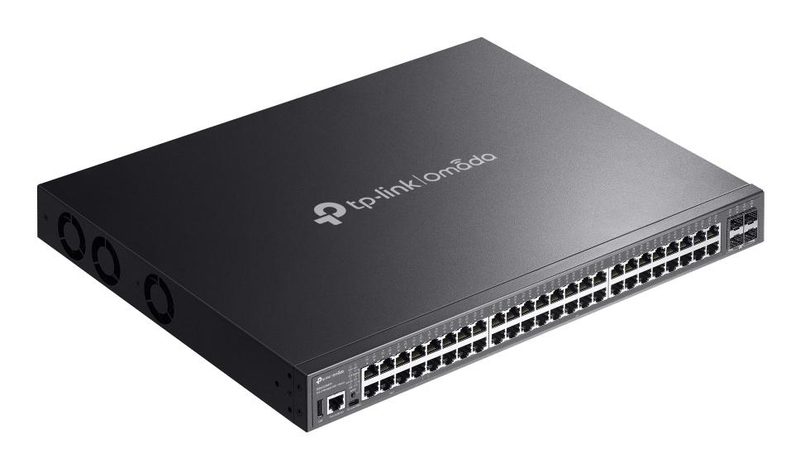

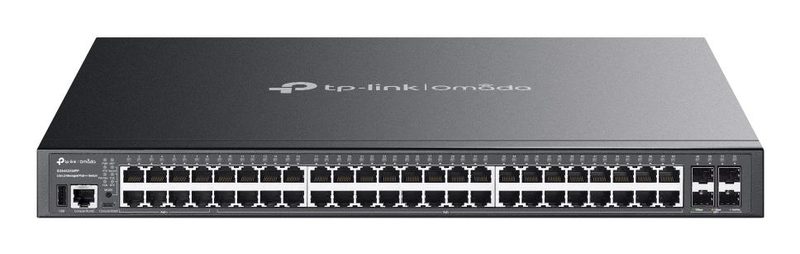

TP-Link Omada SG5452XMPP network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-LinkModel SG5452XMPP
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Memory type
- DRAM
- Surge protection
- Yes
- Flash memory
- 512 MB
- Noise level
- 58.5 dB
Overview
TP-Link Omada SG5452XMPP network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black is a TP-Link switches & adapter with a mean time between failures (mtbf) of 275.277 h and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Mean time between failures (MTBF) is 275.277 h. Fanless is Yes. Firmware upgradeable is Yes. Surge protection voltage is 6 kV. Number of VLANs is 4000. Virtual LAN features is MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN. Packet buffer memory is 12 MB. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Memory type | DRAM |
|---|---|
| Surge protection | Yes |
| Flash memory | 512 MB |
| Noise level | 58.5 dB |
| Mean time between failures (MTBF) | 275.277 h |
| Width | 440 mm |
|---|---|
| Depth | 330 mm |
| Height | 44 mm |
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Stackable | Yes |
|---|---|
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Rack mounting | Yes |
| Heat dissipation | 3047.18 BTU/h |
|---|
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Management level | 4 |
|---|---|
| Bandwidth | 88 Gbit/s |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Switch type | Managed |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 40 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 770 W |
| Power consumption (max) | 893.6 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | Yes |
| Surge protection voltage | 6 kV |
| Internal memory | 2000 MB |
|---|---|
| Physical stacking (units) | 4 |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Telnet | Yes |
| Fanless | Yes |
| Multicast support | Yes |
|---|
| IP-MAC-Port binding | Yes |
|---|---|
| MAC address filtering | Yes |
| DHCP features | DHCP relay, DHCP server |
| Password protection | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.94 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| 10G support | Yes |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Port mirroring | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| USB Type-C ports quantity | 1 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Processor manufacturer | ARM |
|---|
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L3 |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Firmware upgradeable | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
