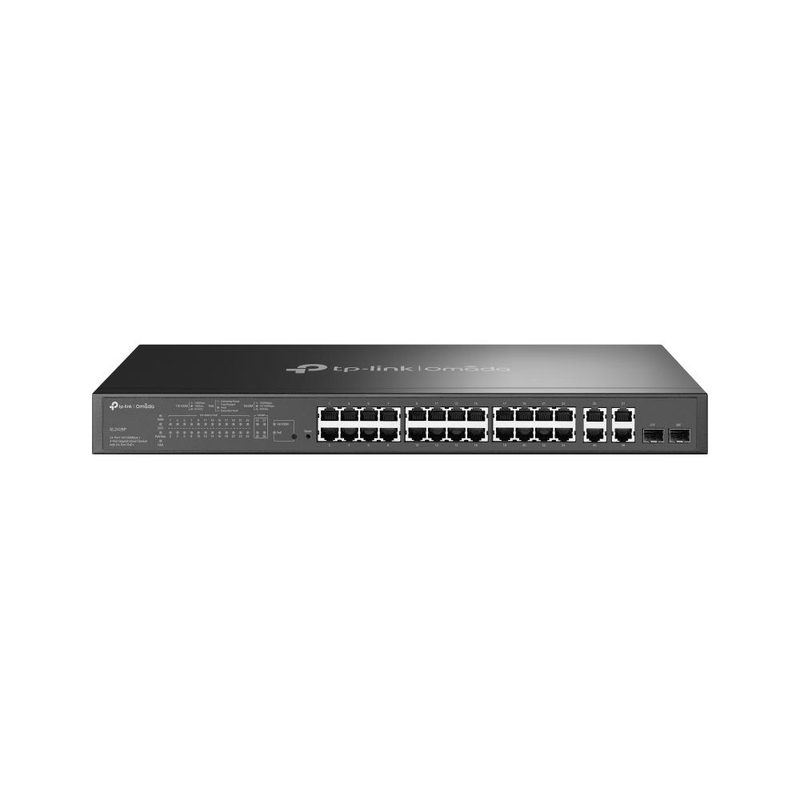

TP-Link Omada SL2428P Managed Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
TP-LinkModel SL2428P(UN)
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compatible operating systems
- Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
- Switch type
- Managed
- Certification
- CE, FCC, RoHS
- Management protocols
- SNMP v1/v2c/v3, RMON, SNTP, TFTP
Overview
TP-Link Omada SL2428P Managed Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black is a TP-Link switches & adapter with a certification of CE, FCC, RoHS and a management protocols of SNMP v1/v2c/v3, RMON, SNTP, TFTP. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS. Management protocols is SNMP v1/v2c/v3, RMON, SNTP, TFTP. Firmware upgradeable is Yes. Number of VLANs is 512. Packet buffer memory is 4.1 MB. Heat dissipation is 995.09 BTU/h. Compatible operating systems is Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux. Switch type is Managed. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux |
|---|---|
| Switch type | Managed |
| Certification | CE, FCC, RoHS |
| Management protocols | SNMP v1/v2c/v3, RMON, SNTP, TFTP |
|---|
| Power consumption (max) | 291.6 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | Yes |
| Auto MDI/MDI-X | Yes |
|---|---|
| Rate limiting | Yes |
| Width | 440 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | Black |
|---|---|
| Number of fans | 2 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Heat dissipation | 995.09 BTU/h |
|---|
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
|---|---|
| Total Power over Ethernet (PoE) budget | 250 W |
| Multicast support | Yes |
|---|
| System event log | Yes |
|---|---|
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 12.8 Gbit/s |
| Forwarding rate | 9.5 Mpps |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Packet buffer memory | 4.1 MB |
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring | Yes |
| Security algorithms | SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 512 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| Firmware upgradeable | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
