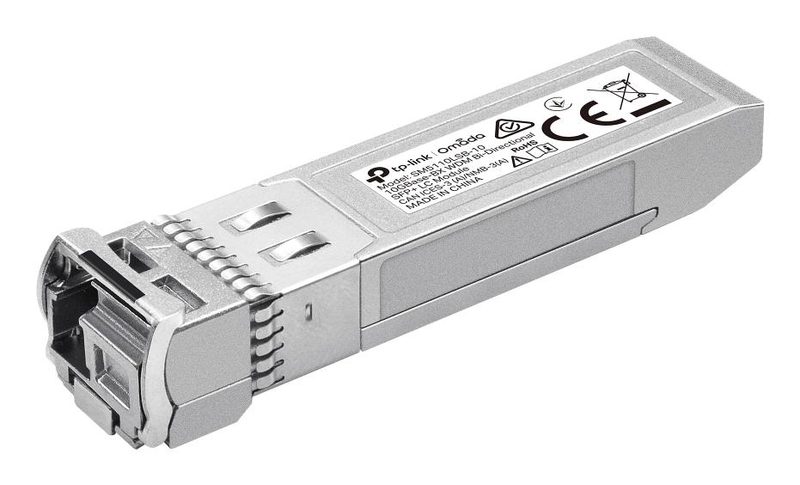

TP-Link Omada SM5110LSB-10 network transceiver module Fiber optic 10312 Mbit/s SFP+
TP-LinkModel SM5110LSB-10
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Interface type
- SFP+
- Networking standards
- IEEE 802.3ae
- Manual
- Yes
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Interface type | SFP+ |
| Networking standards | IEEE 802.3ae |
|---|
| Manual | Yes |
|---|---|
| Quantity per pack | 1 pc(s) |
| Width | 57 mm |
|---|---|
| Depth | 14 mm |
| Height | 12 mm |
| Input voltage | 3.3 V |
|---|
| Product colour | Silver |
|---|
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Maximum data transfer rate | 10312 Mbit/s |
|---|---|
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum transfer distance | 10000 m |
| Single-mode fiber (SMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx wavelength (max) | 1270 nm |
| Rx wavelength (max) | 1330 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC (UPC) |
|---|
