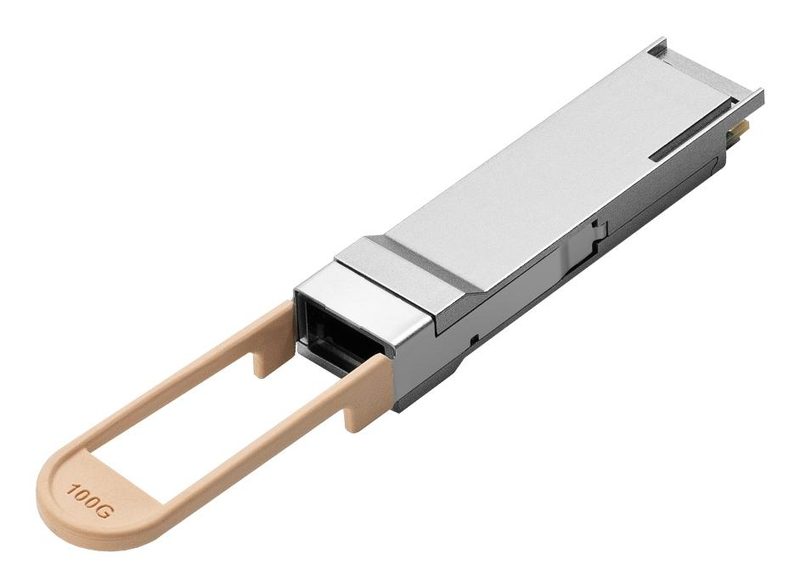

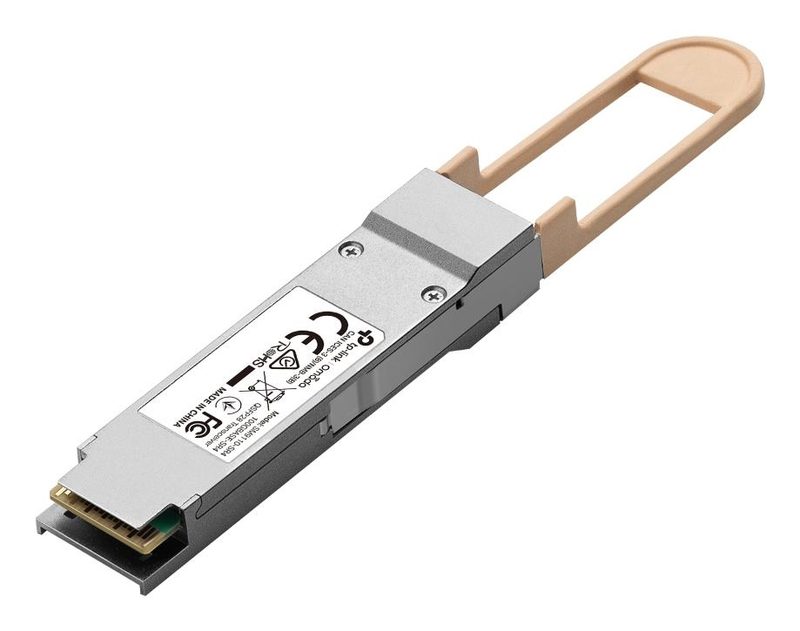

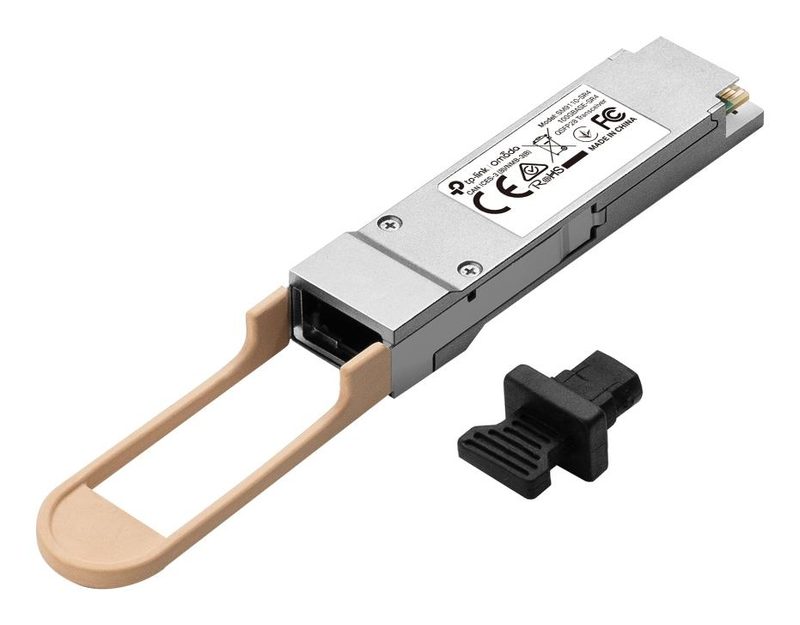

TP-Link Omada SM9110-SR4 network transceiver module Fiber optic 100000 Mbit/s QSFP28 850 nm
TP-LinkModel SM9110-SR4
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Interface type
- QSFP28
- Certification
- QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
- Country of origin
- China
Overview
TP-Link Omada SM9110-SR4 network transceiver module Fiber optic 100000 Mbit/s QSFP28 850 nm is a TP-Link switches & adapter with a certification of QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP and a country of origin of China. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP. Country of origin is China. User guide is Yes. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Interface type is QSFP28. Digital Diagnostics Monitoring (DDM) is Yes. Height is 11.7 mm. Depth is 18.4 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Interface type | QSFP28 |
| Certification | QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP |
| Country of origin | China |
|---|
| Quantity per pack | 1 pc(s) |
|---|---|
| User guide | Yes |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
|---|---|
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Width | 124 mm |
|---|---|
| Depth | 18.4 mm |
| Height | 11.7 mm |
| Plug and Play | Yes |
|---|
| Input voltage | 3.3 V |
|---|
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Maximum data transfer rate | 100000 Mbit/s |
|---|---|
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum transfer distance | 150 m |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| SFP transceiver standard | SR4 |
| Wavelength | 850 nm |
| Tx power (min) | -8.4 dBmW |
| Tx power (max) | 2.4 dBmW |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ethernet cabling technology | 40GBASE, 100GBASE |
|---|
| Fiber optic connector | MPO-12, MTP |
|---|
| Product colour | Metallic |
|---|---|
| Form factor | QSFP28 |
