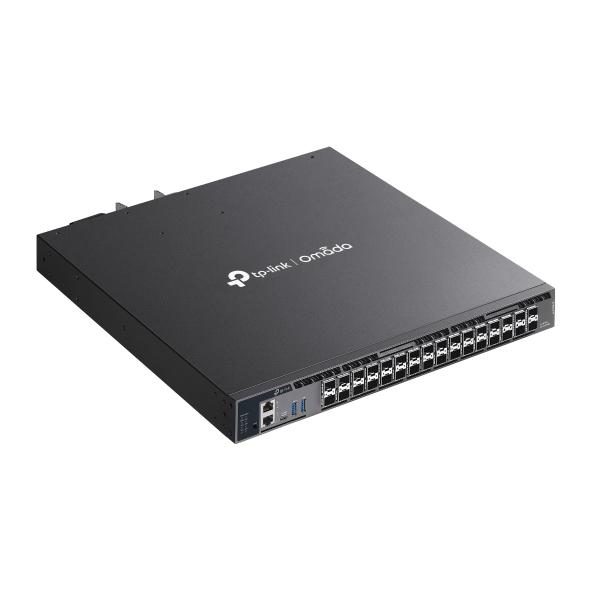

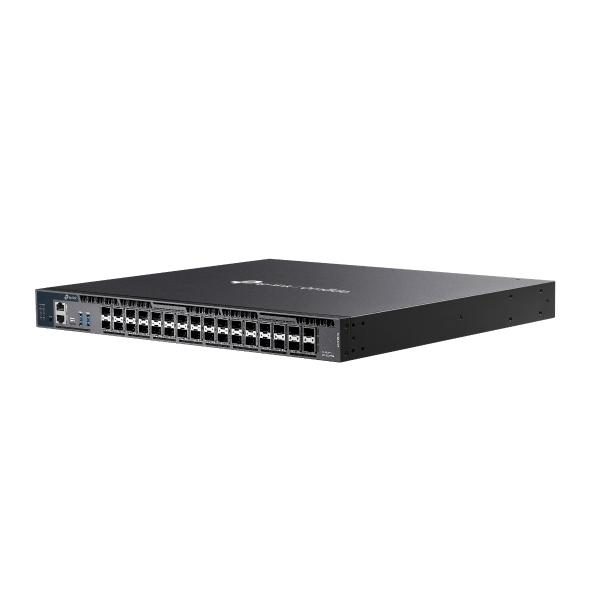

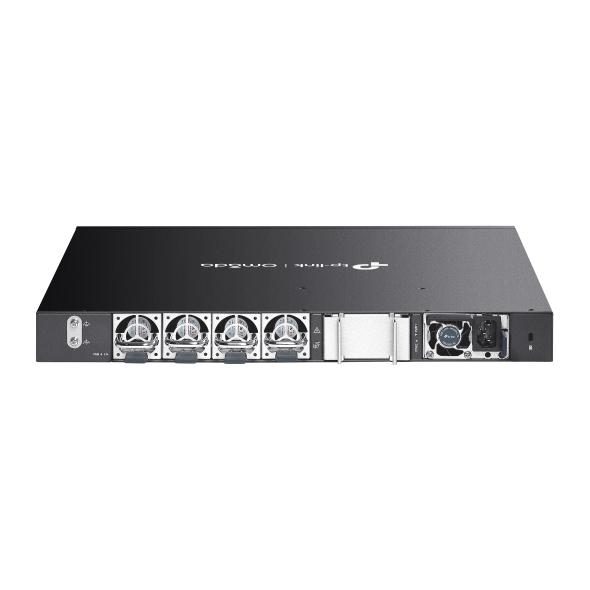

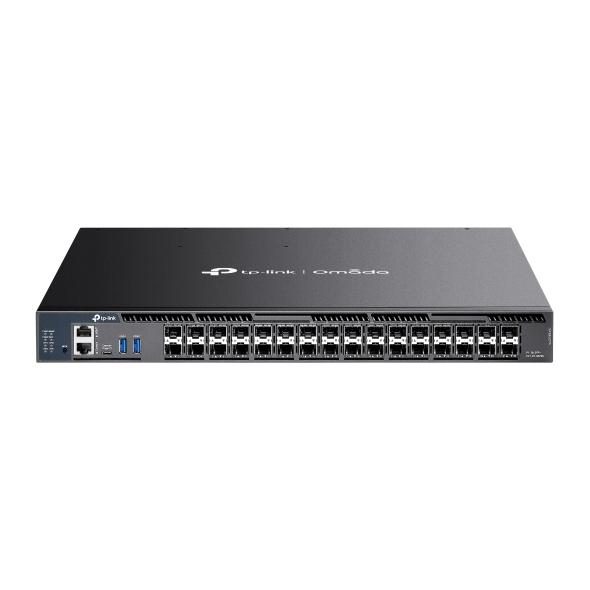

TP-Link Omada SX6632YF network switch Managed L2+/L3 Black
TP-LinkModel SX6632YF
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Minimum system requirements
- Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
- Switch type
- Managed
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
Overview
TP-Link Omada SX6632YF network switch Managed L2+/L3 Black is a TP-Link switches & adapter with a management protocols of SNMPv1/v2c/v3 and a virtual lan features of MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Management protocols is SNMPv1/v2c/v3. Virtual LAN features is MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN. Packet buffer memory is 8 MB. Minimum system requirements is Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.. Switch type is Managed. Rack mount kit is Yes. SSH/SSL support is Yes. ARP inspection is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Minimum system requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. |
|---|
| Switch type | Managed |
|---|
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Number of power supply units | 2 |
| Power source | AC |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | No |
| Management protocols | SNMPv1/v2c/v3 |
|---|
| Width | 440 mm |
|---|---|
| Depth | 380 mm |
| Height | 44 mm |
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Stackable | Yes |
|---|---|
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Rack mounting | Yes |
| USB Type-A ports quantity | 2 |
|---|
| Cables included | Power |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Multicast support | Yes |
|---|
| MAC address filtering | Yes |
|---|---|
| DHCP features | DHCP Option 82 |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
| MAC address table | 128000 entries |
|---|---|
| Switching capacity | 820 Gbit/s |
| Forwarding rate | 610.1 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 8 MB |
| 10G support | Yes |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah |
| Port mirroring | Yes |
| IP routing | Yes |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Basic switching RJ-45 Ethernet ports type | No |
|---|---|
| USB Type-C ports quantity | 1 |
| SFP module slots quantity | 6 |
| SFP+ module slots quantity | 26 |
| Number of management ports | 1 pc(s) |
| Console port | RJ-45 |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L2+/L3 |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
