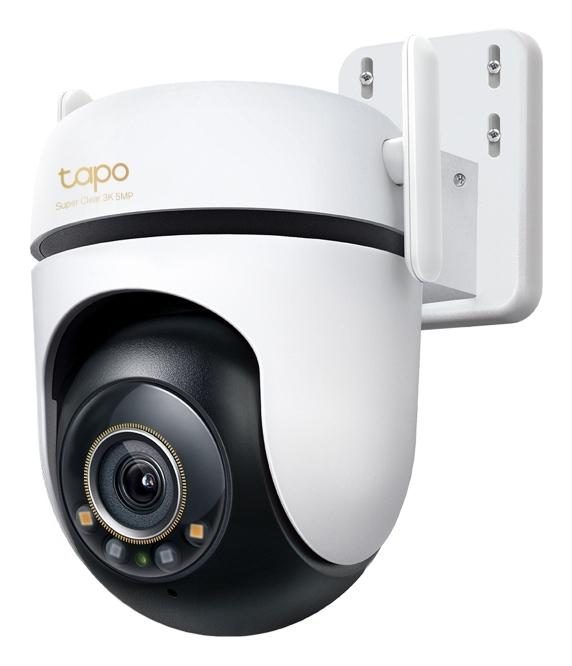

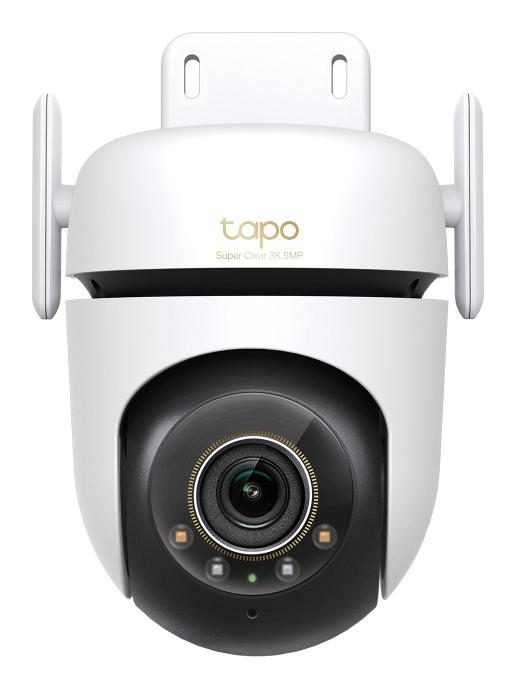

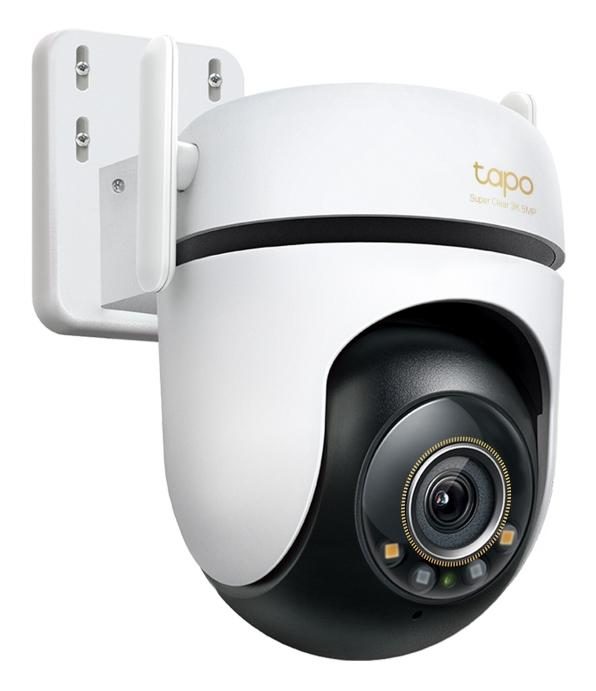

TP-Link Outdoor Pan/Tilt Security Wi-Fi Camera SPEC: 3K 5MP (2880x1620), 2.4 GHz, 2 × External Antennas, 1 × Ethernet Port, Horizontal 360º
TP-LinkModel TAPO C530WS
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Manual
- Yes
- Drilling template included
- Yes
- Mounting kit
- Yes
- Screws included
- Yes
Overview
TP-Link Outdoor Pan/Tilt Security Wi-Fi Camera SPEC: 3K 5MP (2880x1620), 2.4 GHz, 2 × External Antennas, 1 × Ethernet Port, Horizontal 360º is a TP-Link cctv camera with a ethernet lan (rj-45) ports of 1 and a maximum memory card size of 512 GB. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN (RJ-45) ports is 1. Maximum memory card size is 512 GB. Reset button is Yes. International Protection (IP) code is IP66. Compatible memory cards is MicroSD (TransFlash). Maximum operating distance is 29.9 m. Mounting brackets included is Yes. DC output voltage is 9. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 2 Years. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Manual | Yes |
|---|---|
| Drilling template included | Yes |
| Mounting kit | Yes |
| Screws included | Yes |
| Maximum operating distance | 29.9 m |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired & Wireless |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | No |
| Maximum memory card size | 512 GB |
| Width | 123.8 mm |
|---|---|
| Depth | 90 mm |
| Height | 123 mm |
| Package width | 160 mm |
|---|---|
| Package depth | 210 mm |
| Package height | 145 mm |
| Package weight | 740 g |
| Package type | Box |
| Mounting brackets included | Yes |
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Tilt angle range | 60 - 130° |
|---|
| Built-in speaker(s) | Yes |
|---|
| Supported graphics resolutions | 2880 x 1620 |
|---|
| Cloud-managed | Yes |
|---|---|
| Reset button | Yes |
| Maximum resolution | 2880 x 1620 pixels |
|---|
| AC input voltage | 100 - 240 V |
|---|---|
| Power source type | AC, DC |
| AC input frequency | 50/60 Hz |
| DC output voltage | 9 |
| DC output current | 0.85 A |
| Built-in siren | Yes |
|---|---|
| Siren noise level | 99 dB |
| Video motion detection | Yes |
| HTTPS encryption | Yes |
| Alert notification type | Push notification |
| Motion sensor | Yes |
| Mirror | Yes |
| Antennas quantity | 2 |
|---|
| Audio output channels | 1.0 channels |
|---|
| Type | IP security camera |
|---|---|
| Placement supported | Outdoor |
| Ethernet LAN | Yes |
|---|---|
| Remotely operated | Yes |
| Networking standards | IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | External |
| Live view | Yes |
| Audio input channels | 1.0 channels |
|---|---|
| Audio system | 2-way |
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Audio detection | Yes |
| Video compression formats | H.264 |
|---|---|
| Frame rate | 30 fps |
| Image quality adjustment | DNR |
| Night vision | Yes |
|---|---|
| LED type | IR/White |
| Focal length range | 3.2 mm |
|---|
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
|---|---|
| Progressive scan | Yes |
| Sensor type (panoramic camera) | CMOS |
|---|
| Digital zoom | 12x |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Total megapixels | 5 MP |
| Video recording | Yes |
| Lens viewing angle, horizontal | 95° |
| Lens viewing angle, vertical | 53° |
| Lens viewing angle, diagonal | 112° |
| Product colour | White |
|---|---|
| Housing material | Metal |
| Protection features | Waterproof |
| Weatherproof | Yes |
| Form factor | Turret |
| International Protection (IP) code | IP66 |
| Audio formats supported | RTSP |
|---|---|
| Number of cameras | 1 |
| Sensor type | CMOS |
| Auto pan mode | Yes |
| Day/night mode | Yes |
| Remote viewing | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
|---|
| Mounting type | Wall |
|---|
Warranty
2 Years
