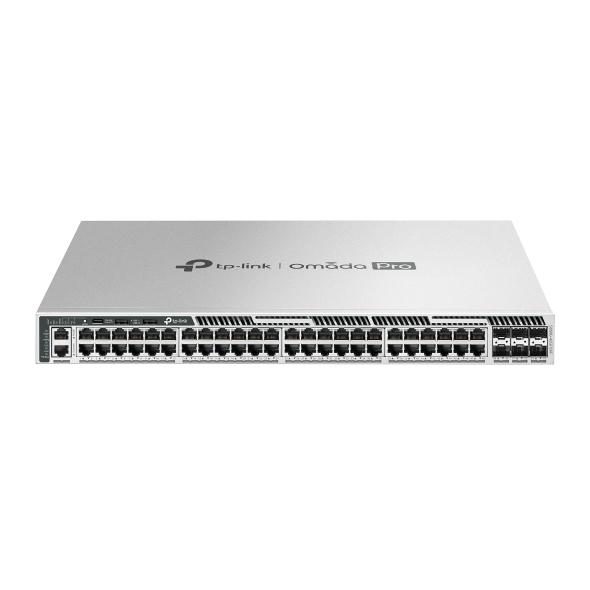

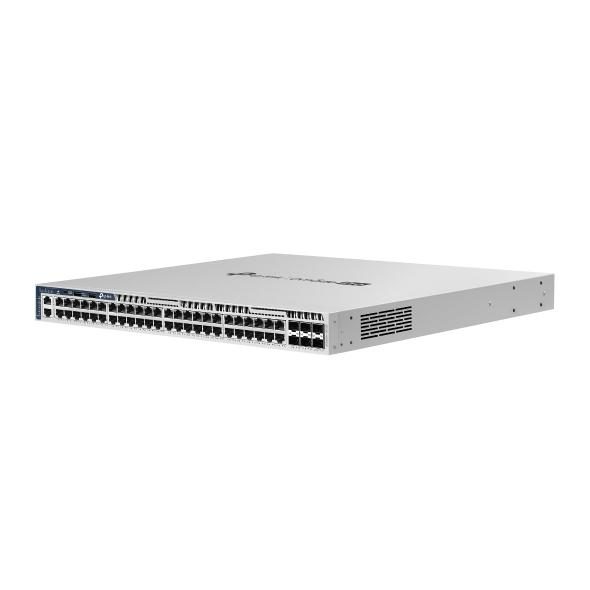

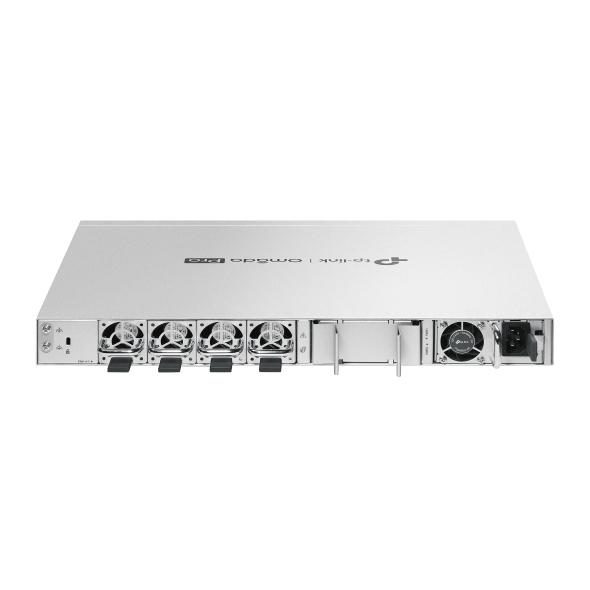

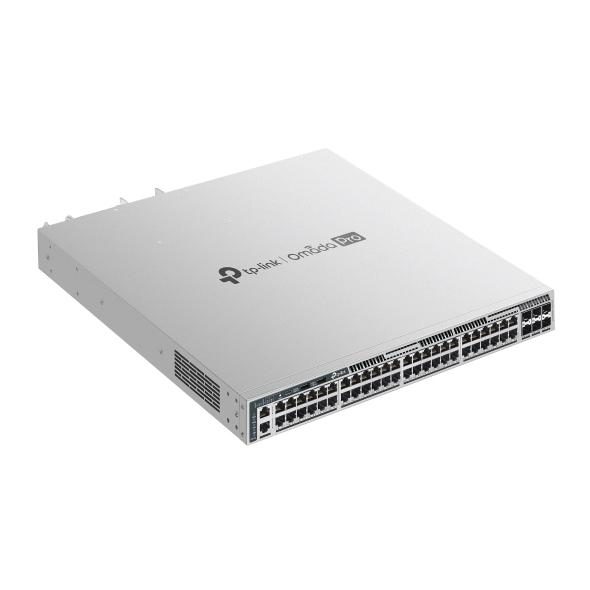

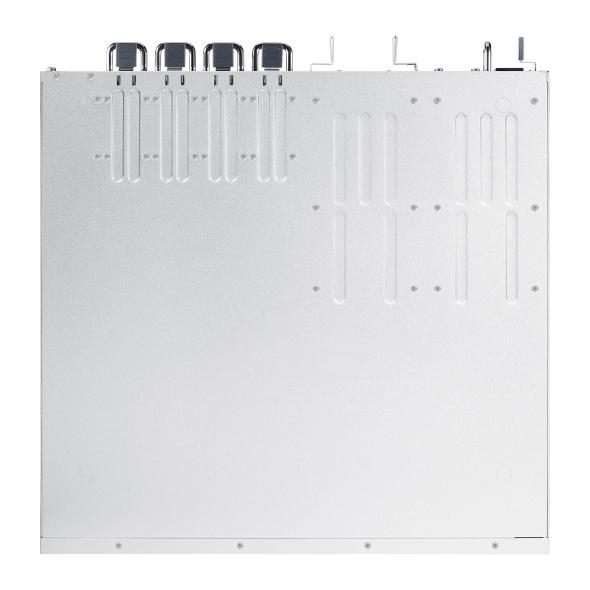

TP-Link S6500-48GP6XF network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
TP-LinkModel S6500-48GP6XF
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Rate limiting
- Yes
- Width
- 440 mm
- Depth
- 420 mm
Overview
TP-Link S6500-48GP6XF network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey is a TP-Link switches & adapter with a number of vlans of 4000 and a virtual lan features of IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Number of VLANs is 4000. Virtual LAN features is IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN. Packet buffer memory is 3 MB. Heat dissipation is 6027.86 BTU/h. Switch type is Managed. Flow control support is Yes. Rack mount kit is Yes. Authentication type is AAA, RADIUS, TACACS+. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|
| Rate limiting | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 420 mm |
| Height | 44 mm |
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | Grey |
|---|---|
| Number of fans | 4 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Heat dissipation | 6027.86 BTU/h |
|---|
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
|---|---|
| Total Power over Ethernet (PoE) budget | 1440 W |
| Power consumption (max) | 635.7 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | Yes |
| Multicast support | Yes |
|---|
| DHCP features | DHCP relay, DHCP server, DHCPv6 relay |
|---|---|
| IGMP snooping | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Static port security | Yes |
| MAC address table | 32000 entries |
|---|---|
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 160.7 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| 10G support | Yes |
|---|---|
| Static route | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3az |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 6 |
| Console port | RJ-45/USB Type-C |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L3 |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
