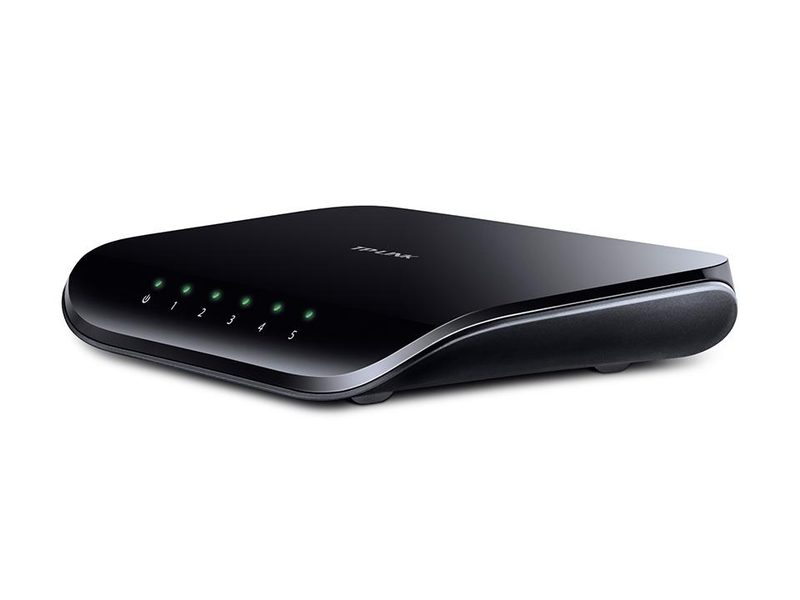

TP-LINK SG1005D 5 PORT SWITCH GIGABIT
TP-LinkModel SG1005DSKU SG1005D
In stock
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Maximum data transfer rate
- 1 Gbit/s
- Switch type
- Unmanaged
- Supported data transfer rates
- 10/100/1000 Mbit/s
- Product colour
- Black
Overview
TP-LINK-SG1005D 5 PORT SWITCH GIGABIT
Specifications
| Maximum data transfer rate | 1 Gbit/s |
|---|---|
| Switch type | Unmanaged |
| Supported data transfer rates | 10/100/1000 Mbit/s |
| Product colour | Black |
|---|---|
| Rack mounting | No |
| Power consumption (max) | 2.41 W |
|---|---|
| Input current | 0.6 A |
| Power source | DC |
| Input voltage | 9 V |
| Power over Ethernet (PoE) | No |
| Quick start guide | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 165 mm |
|---|---|
| Depth | 108 mm |
| Height | 28 mm |
| Package width | 145 mm |
|---|---|
| Package depth | 108 mm |
| Package height | 85 mm |
| Package weight | 240 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 8.22 BTU/h |
|---|
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
