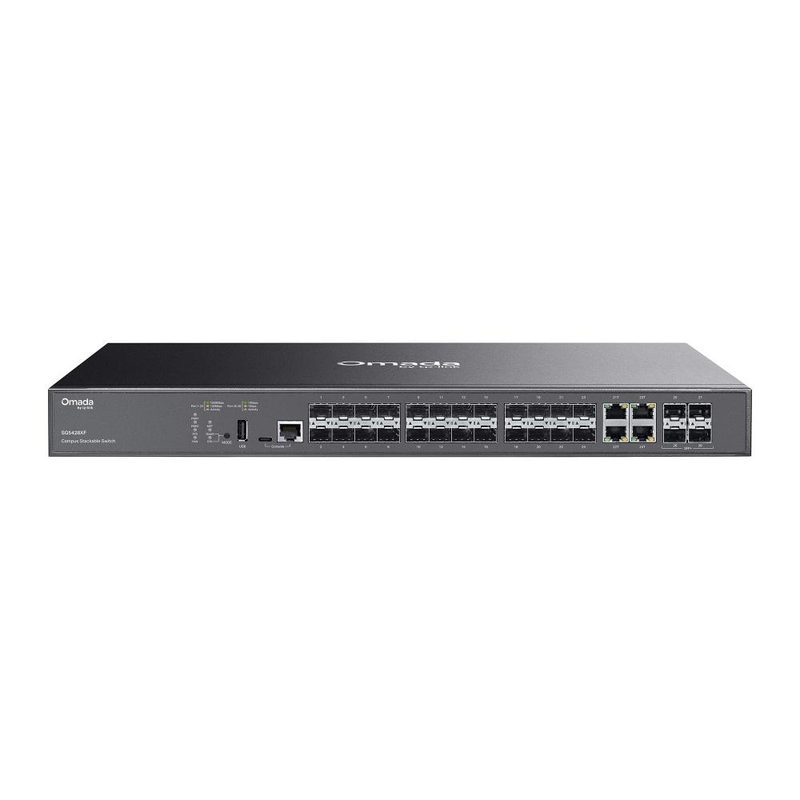

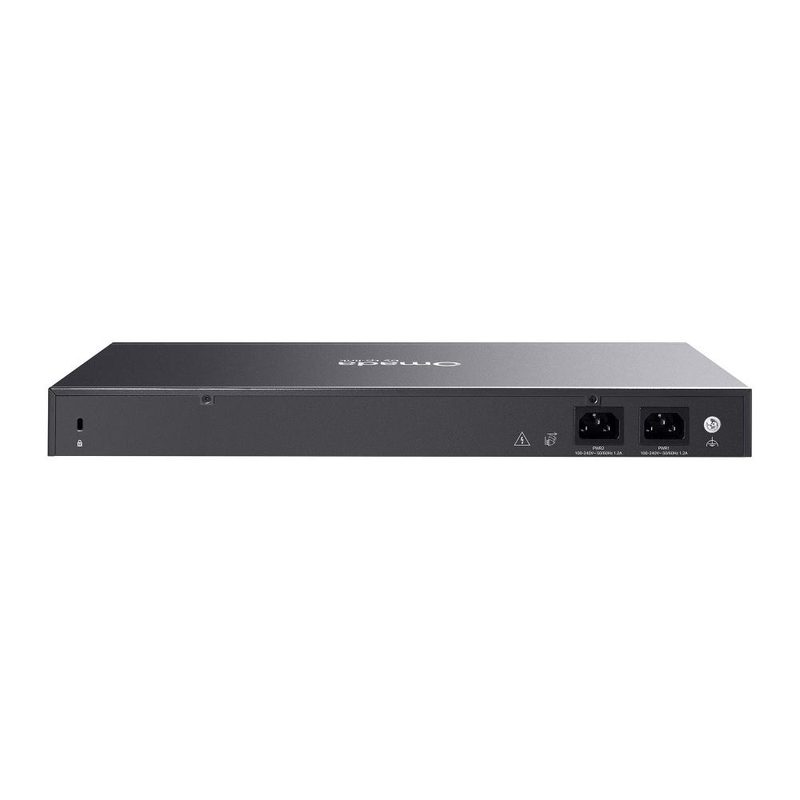

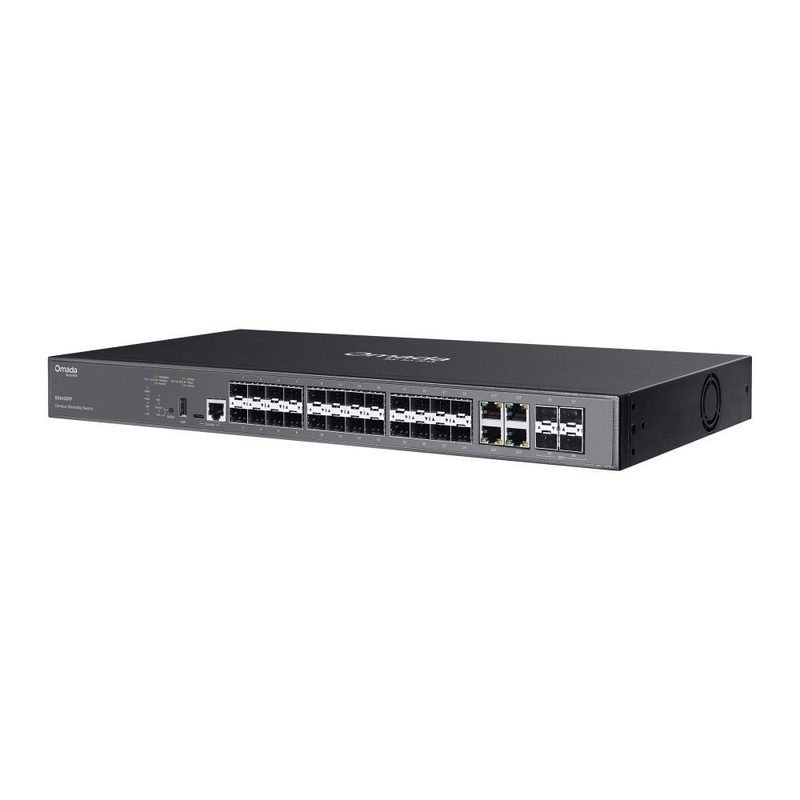

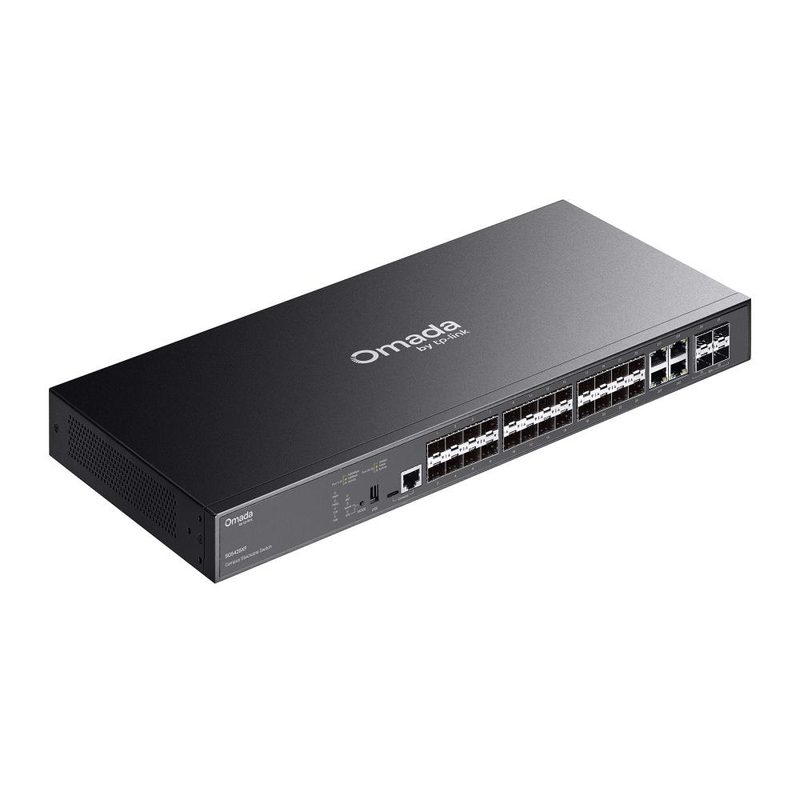

TP-Link SG5428XF network switch Managed L3 Black
TP-LinkModel SG5428XF
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- IP-MAC-Port binding
- Yes
- DHCP features
- DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
- IGMP snooping
- Yes
Overview
TP-Link SG5428XF network switch Managed L3 Black is a TP-Link switches & adapter with a routing protocols of OSPF, OSPFv2, OSPFv3, RIP and a virtual lan features of Management VLAN, Multicast VLAN, Private VLAN, Tagged VLAN, Voice VLAN. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Routing protocols is OSPF, OSPFv2, OSPFv3, RIP. Virtual LAN features is Management VLAN, Multicast VLAN, Private VLAN, Tagged VLAN, Voice VLAN. Packet buffer memory is 12 MB. Heat dissipation is 98.822 BTU/h. Switch type is Managed. Fiber ports quantity is 4. Flow control support is Yes. Rack mount kit is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|
| IP-MAC-Port binding | Yes |
|---|---|
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping |
| IGMP snooping | Yes |
| Authentication | Guest VLAN |
| Authentication type | AAA, TACACS+ |
| Rate limiting | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Stackable | Yes |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Rack mounting | Yes |
| Heat dissipation | 98.822 BTU/h |
|---|
| Power consumption (typical) | 28.3 W |
|---|---|
| Power consumption (max) | 28.98 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| USB Type-A ports quantity | 1 |
|---|
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|---|
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP |
| Multicast Listener Discovery (MLD) snooping | Yes |
|---|
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 128 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x |
| Port mirroring | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | Management VLAN, Multicast VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| Combo SFP ports quantity | 4 |
|---|---|
| SFP module slots quantity | 20 |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RJ-45/USB Type-C |
| Fiber ports quantity | 4 |
| Web-based management | Yes |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
