TP-LinkModel SM5110-LR(8-PACK)

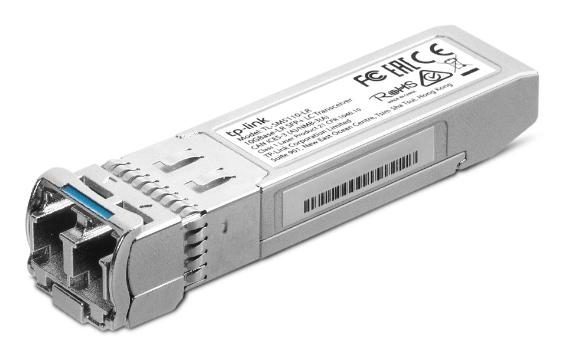

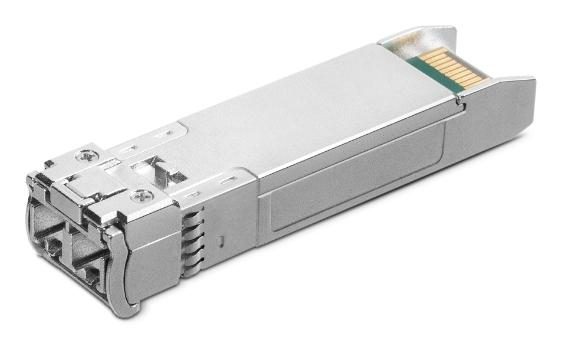

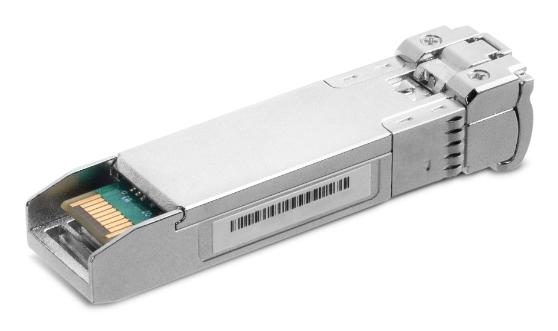

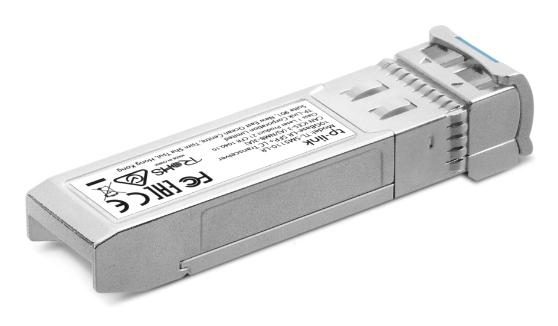

TP-Link SM5110-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Available to order
TP-Link Switches & Adapter. Available from OfficeLand with nationwide delivery; request a quote for pricing.
At a glance
- Interface type
- SFP+
- Quantity per pack
- 8 pc(s)
- Width
- 56.7 mm
- Depth
- 13.9 mm
- Height
- 10.3 mm
- Operating temperature (T-T)
- 0 - 70 °C
Request a quote for pricing
Answered within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, SON certified. Quotes answered within one business day.
Specifications
| Interface type | SFP+ |
|---|
| Quantity per pack | 8 pc(s) |
|---|
| Width | 56.7 mm |
|---|---|
| Depth | 13.9 mm |
| Height | 10.3 mm |
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Input voltage | 3.3 V |
|---|
| Maximum data transfer rate | 10000 Mbit/s |
|---|---|
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum transfer distance | 10000 m |
| Single-mode fiber (SMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Wavelength | 1310 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Duplex system | Full |
|---|
| Fiber optic connector | LC |
|---|
