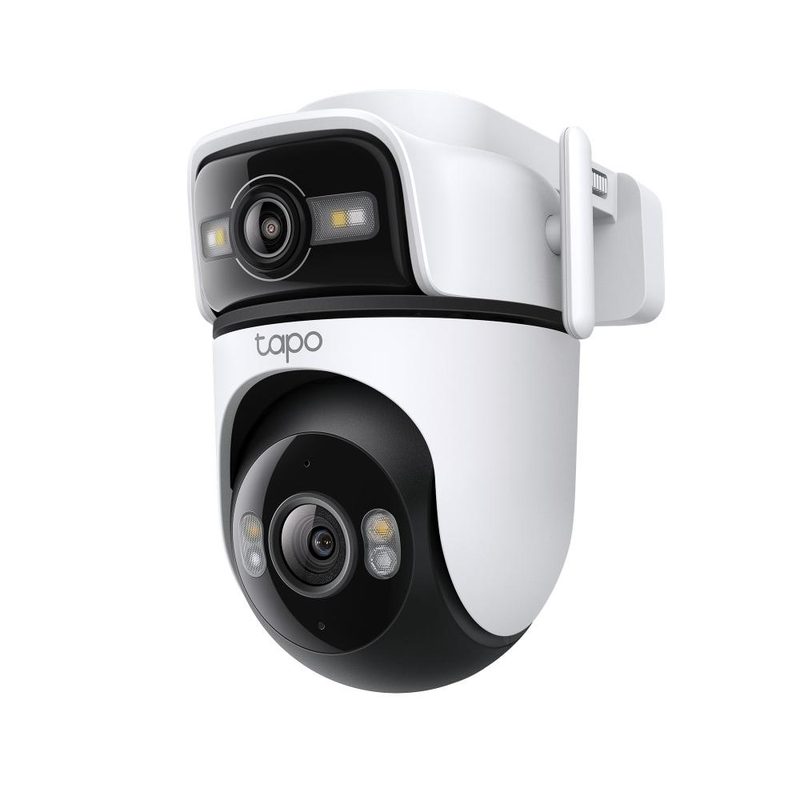

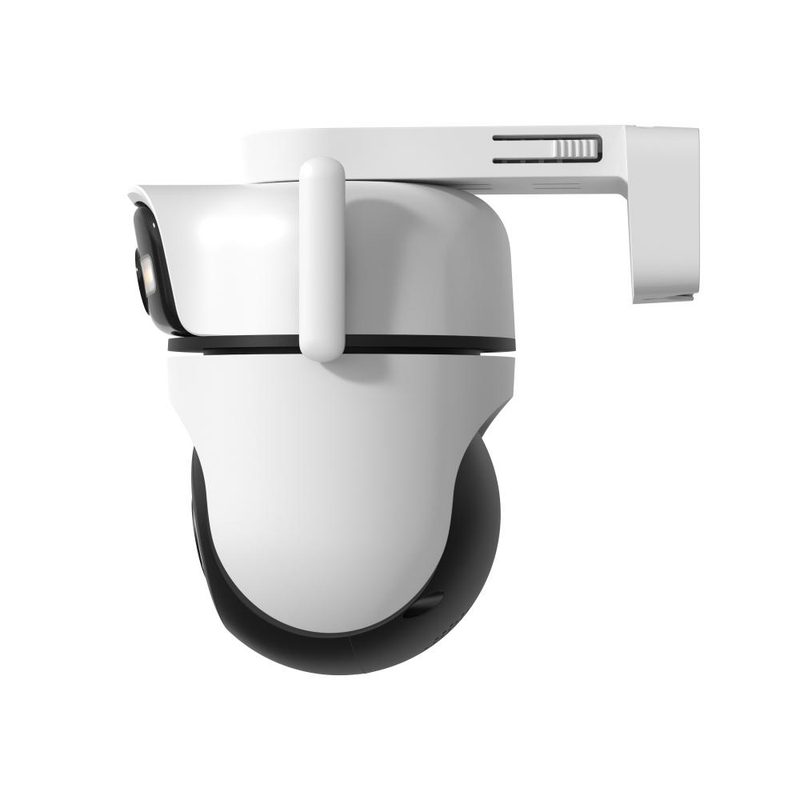

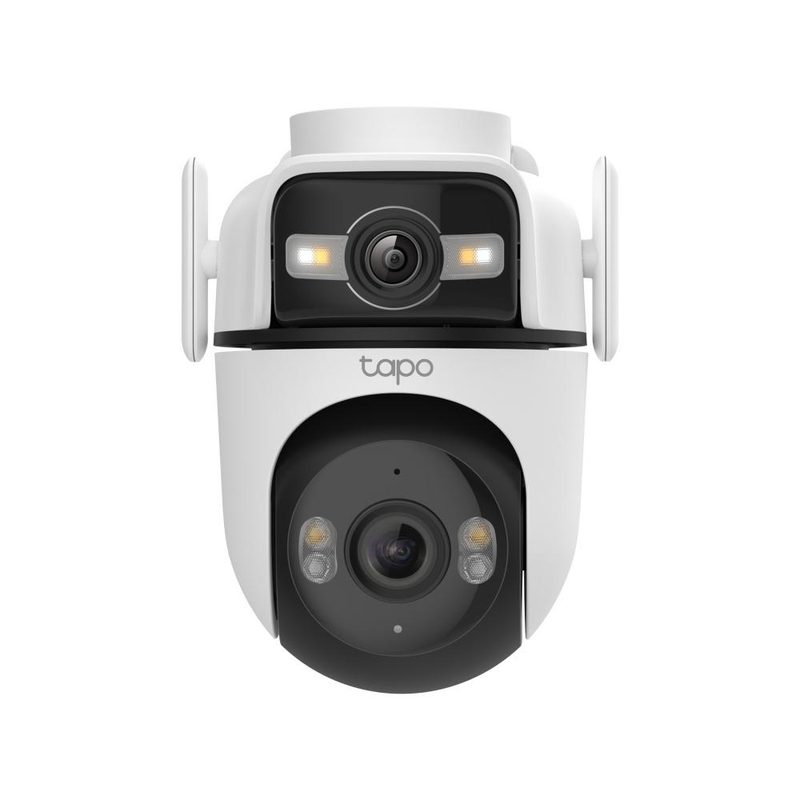

TP-Link Tapo Outdoor Dual Lens Pan/Tilt Security Camera
TP-LinkModel TAPO C545D
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Drilling template included
- Yes
- Quick start guide
- Yes
- Mounting kit
- Yes
- Anchors included
- Yes
Overview
TP-Link Tapo Outdoor Dual Lens Pan/Tilt Security Camera is a TP-Link cctv camera with a works with the google assistant of Yes and a supported network protocols of TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Works with the Google Assistant is Yes. Supported network protocols is TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP. Ethernet LAN (RJ-45) ports is 1. Cable length is 3 m. Maximum memory card size is 512 GB. Noise reduction is Yes. Reset button is Yes. International Protection (IP) code is IP66. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 2 Years. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Drilling template included | Yes |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| Anchors included | Yes |
| Screws included | Yes |
| Waterproof connector | Yes |
| Type | IP security camera |
|---|---|
| Placement supported | Outdoor |
| Works with Amazon Alexa | Yes |
| AC adapter included | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired & Wireless |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | No |
| Maximum memory card size | 512 GB |
| Reset button | Yes |
|---|
| Width | 114.6 mm |
|---|---|
| Depth | 152.1 mm |
| Height | 159.6 mm |
| Weight | 491 g |
| Package width | 196 mm |
|---|---|
| Package depth | 235 mm |
| Package height | 136 mm |
| Package weight | 890 g |
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Cable length | 3 m |
|---|
| Built-in speaker(s) | Yes |
|---|
| Maximum resolution | 2304 x 1296 pixels |
|---|
| Power consumption (typical) | 5.3 W |
|---|---|
| Power consumption (max) | 11.2 W |
| AC input voltage | 100 - 240 V |
| Power source type | DC |
| AC input frequency | 50 - 60 Hz |
| DC output voltage | 12 |
| DC output current | 1 A |
| Built-in siren | Yes |
|---|---|
| Siren noise level | 99 dB |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection, Line crossing detection, Pet detection, Vehicle detection |
| Alert notification type | Snapshot alert message |
| Frequency band | 2.4 GHz |
|---|
| Built-in HDD | No |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Ethernet interface type | Fast Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Wi-Fi data rate (max) | 144 Mbit/s |
| Security algorithms | 128-bit AES, SSL/TLS, WPA, WPA2-PSK, WPA3 |
| Live view | Yes |
| Supported network protocols | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Noise reduction | Yes |
|---|
| Audio system | 2-way |
|---|---|
| Built-in microphone | Yes |
| Video compression formats | H.264 |
|---|---|
| Frame rate | 15 fps |
| Noise reduction technology | 3D noise reduction |
| Night vision | Yes |
|---|---|
| Colour night vision distance | 29.9 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Number of lenses | 2 |
|---|---|
| Focal length range | 2.53 - 6 mm |
| Maximum aperture number | 1.6 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
|---|---|
| Progressive scan | Yes |
| Total megapixels | 3 MP |
|---|---|
| Lens viewing angle, horizontal | 57.3 - 137.6° |
| Lens viewing angle, vertical | 31.7 - 73° |
| Lens viewing angle, diagonal | 66.5 - 165.1° |
| Card reader integrated | Yes |
|---|---|
| Number of cameras | 1 |
| Sensor type | CMOS |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Works with the Google Assistant | Yes |
| Mounting type | Ceiling/Wall/Pole |
|---|
| Product colour | White |
|---|---|
| Protection features | Dust resistant, Water resistant |
| Form factor | Spherical |
| International Protection (IP) code | IP66 |
Warranty
2 Years
