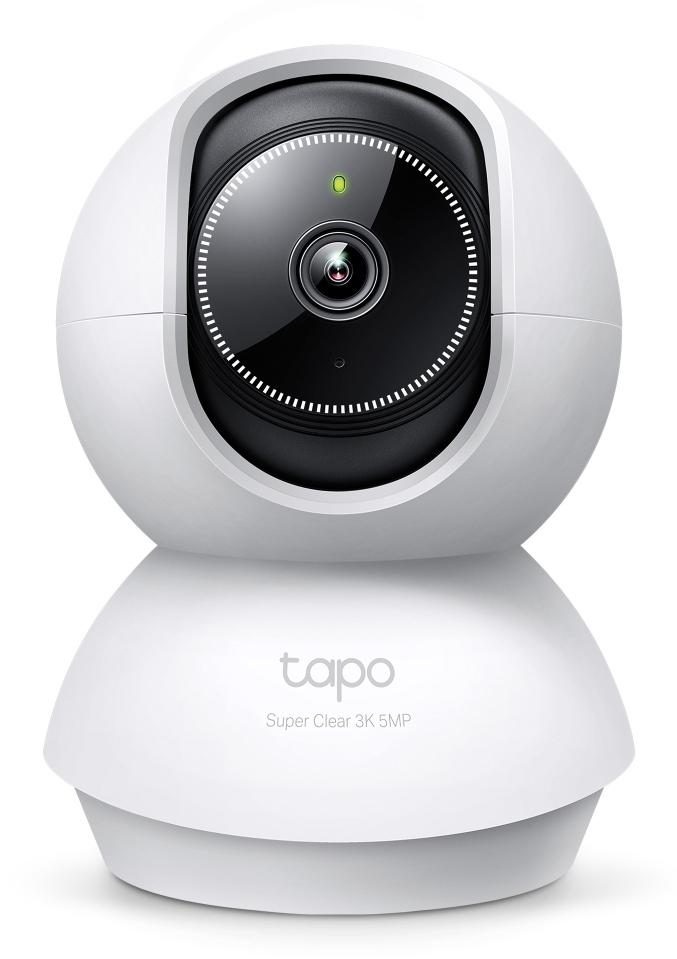

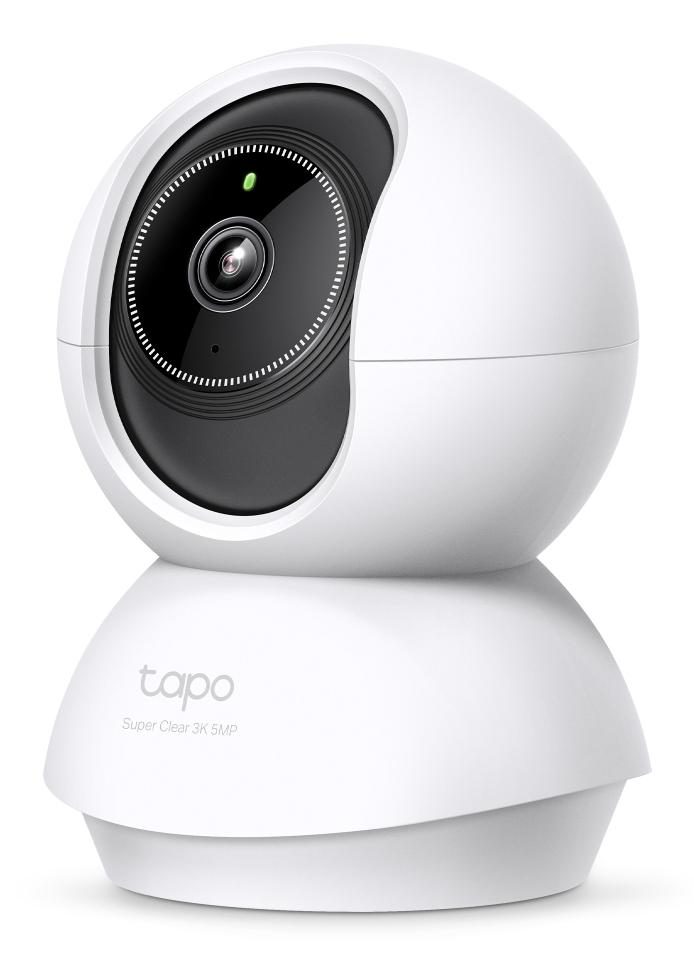

TP-Link Tapo Pan/Tilt AI Home Security Wi-Fi Camera SPEC: 3K 5MP (2880×1620), 2.4 GHz, Horizontal 360º
TP-LinkModel TAPO C230
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Connectivity technology
- Wireless
- Wi-Fi
- Yes
- Maximum memory card size
- 512 GB
- Width
- 85.4 mm
Overview
TP-Link Tapo Pan/Tilt AI Home Security Wi-Fi Camera SPEC: 3K 5MP (2880×1620), 2.4 GHz, Horizontal 360º is a TP-Link cctv camera with a supported network protocols of TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP and a cable length of 3 m. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Supported network protocols is TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP. Cable length is 3 m. Maximum memory card size is 512 GB. Noise reduction is Yes. Reset button is Yes. Compatible memory cards is MicroSD (TransFlash). DC output voltage is 9. DC output current is 0.6 A. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 2 Years. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Connectivity technology | Wireless |
|---|---|
| Wi-Fi | Yes |
| Maximum memory card size | 512 GB |
| Width | 85.4 mm |
|---|---|
| Depth | 86.8 mm |
| Height | 117.7 mm |
| Weight | 190 g |
| Package width | 160 mm |
|---|---|
| Package depth | 190 mm |
| Package height | 110 mm |
| Package weight | 430 g |
| Package type | Box |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Built-in speaker(s) | Yes |
|---|
| Supported graphics resolutions | 2880 x 1620 |
|---|---|
| Supported video modes | 1620p |
| Type | IP security camera |
|---|---|
| Field of view (FOV) angle | 88° |
| Placement supported | Indoor |
| Virtual assistant | Amazon Alexa & Google Assistant |
| Cloud-managed | Yes |
|---|---|
| Reset button | Yes |
| Maximum resolution | 2880 x 1620 pixels |
|---|
| Power consumption (typical) | 3 W |
|---|---|
| Power consumption (max) | 5.7 W |
| AC input voltage | 100-240 V |
| Power source type | AC, DC |
| AC input frequency | 50/60 Hz |
| DC output voltage | 9 |
| DC output current | 0.6 A |
| Built-in siren | Yes |
|---|---|
| Siren noise level | 99 dB |
| Video motion detection | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection, Line crossing detection, Pet detection, Vehicle detection |
| Number of lenses | 1 |
|---|---|
| Minimum aperture number | 2 |
| Zoom capability | No |
| Focal length range | 4 mm |
| Maximum aperture number | 2 |
| Audio formats supported | RTSP |
|---|---|
| Card reader integrated | Yes |
| Video formats supported | H.264 |
| Number of cameras | 1 |
| Sensor type | CMOS |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|---|---|
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Security algorithms | 128-bit AES, SSL/TLS, WPA, WPA2-PSK |
| Live view | Yes |
| Supported network protocols | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Noise reduction | Yes |
|---|
| Audio system | 2-way |
|---|---|
| Built-in microphone | Yes |
| Frame rate | 30 fps |
|---|---|
| Back Light Compensation (BLC) | Yes |
| Image quality adjustment | DNR |
| Night vision | Yes |
|---|---|
| Night vision distance | 12 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Number of sensors | 1 |
|---|---|
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Camera pan control | Yes |
|---|---|
| Camera tilt control | Yes |
| Total megapixels | 5 MP |
| Lens viewing angle, horizontal | 75° |
| Lens viewing angle, vertical | 41° |
| Lens viewing angle, diagonal | 88° |
| Compatible memory cards | MicroSD (TransFlash) |
|---|
| Pan range | 0 - 340° |
|---|---|
| Tilt angle range | 0 - 69° |
| Cable length | 3 m |
| Mounting type | Ceiling/Desk |
|---|
| Product colour | White |
|---|---|
| Form factor | Bulb |
Warranty
2 Years
