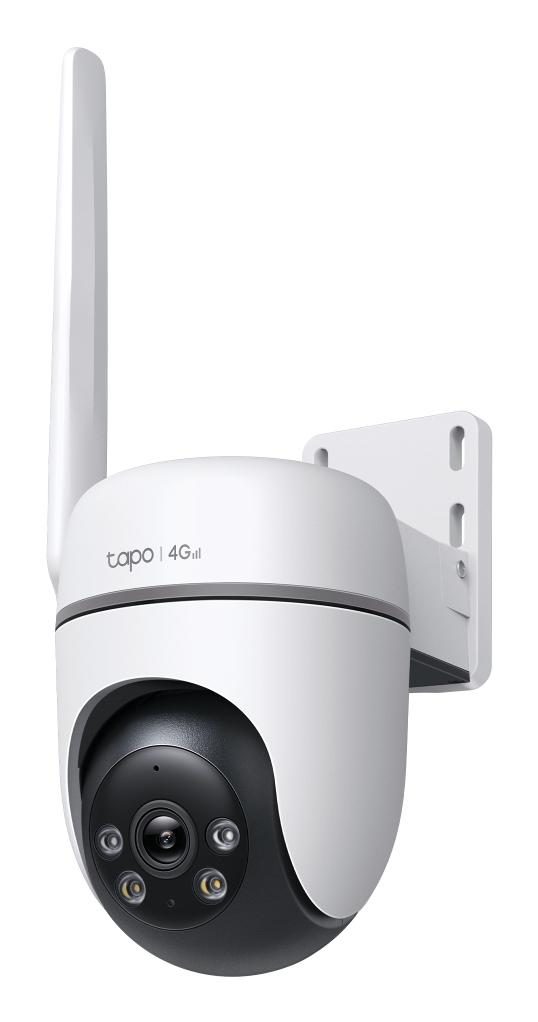

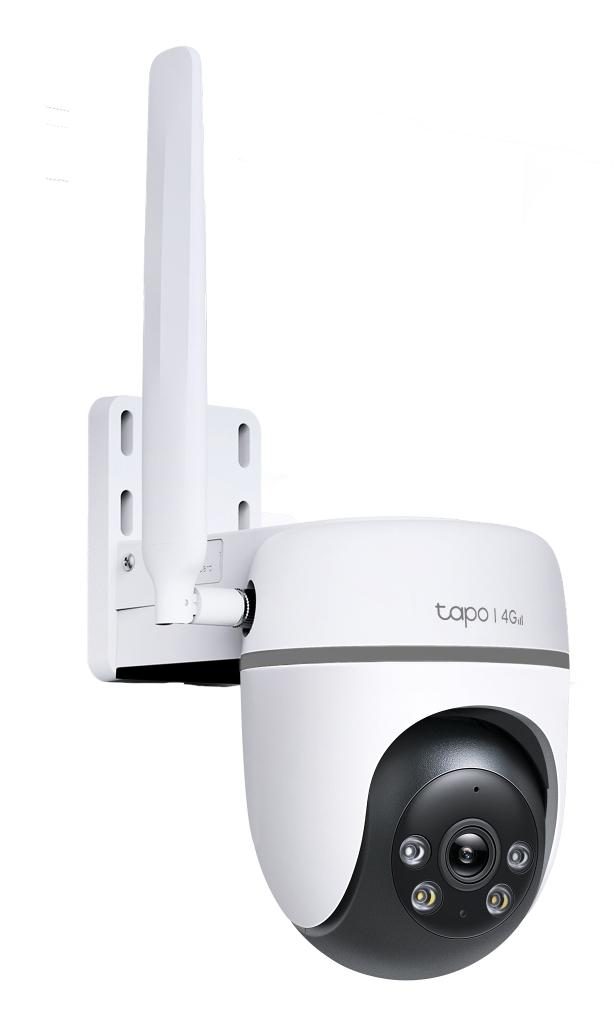

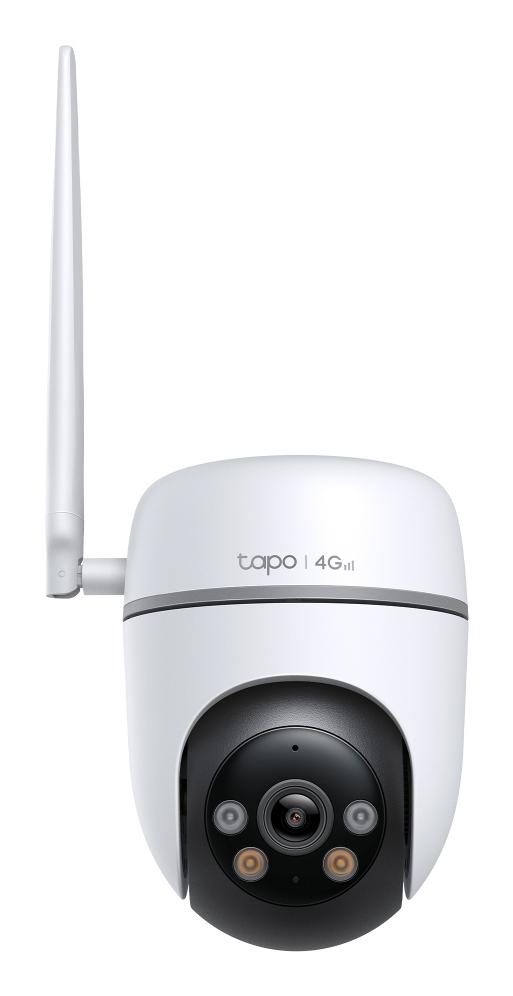

TP-Link TC40GW security camera Turret IP security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole
TP-LinkModel TC40GW
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Quick start guide
- Yes
- Anchors included
- Yes
- Compliance certificates
- BSMI, CE, NCC, RCM, RoHS, VCCI
- Ethernet LAN (RJ-45) ports
- 1
Overview
TP-Link TC40GW security camera Turret IP security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole is a TP-Link cctv camera with a supported network protocols of Protocol TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP and a ethernet lan (rj-45) ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Supported network protocols is Protocol TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP. Ethernet LAN (RJ-45) ports is 1. Cable length is 3 m. Maximum memory card size is 512 GB. Reset button is Yes. International Protection (IP) code is IP66. Compliance certificates is BSMI, CE, NCC, RCM, RoHS, VCCI. Compatible memory cards is MicroSD (TransFlash). Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Quick start guide | Yes |
|---|---|
| Anchors included | Yes |
| Compliance certificates | BSMI, CE, NCC, RCM, RoHS, VCCI |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired & Wireless |
|---|---|
| Maximum memory card size | 512 GB |
| Mobile network generation | 4G |
|---|---|
| 4G standard | LTE-TDD & LTE-FDD |
| SIM card slot | Yes |
|---|
| Width | 106 mm |
|---|---|
| Depth | 140 mm |
| Height | 234 mm |
| Weight | 430 g |
| Mounting brackets included | Yes |
|---|
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Mobile operating systems supported | Android, iOS |
|---|
| Built-in speaker(s) | Yes |
|---|
| Cloud-managed | Yes |
|---|---|
| Reset button | Yes |
| Maximum resolution | 1920 x 1080 pixels |
|---|
| Power consumption (typical) | 2.8 W |
|---|---|
| Power consumption (max) | 9.5 W |
| AC input voltage | 100 - 240 V |
| Power source type | DC, PoE |
| AC input frequency | 50/60 Hz |
| DC output voltage | 12 |
| DC output current | 1 A |
| Mobile network connection | Yes |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| SIM card type | NanoSIM |
| Antenna type | External |
| Supported network protocols | Protocol TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Built-in siren | Yes |
|---|---|
| Siren noise level | 99 dB |
| Alert notification type | Snapshot alert message |
| Motion sensor | Yes |
| Human and vehicle targets classification | Yes |
| Antennas quantity | 1 |
|---|
| Type | IP security camera |
|---|---|
| Placement supported | Outdoor |
| Card reader integrated | Yes |
|---|---|
| Video formats supported | H.264 |
| Number of cameras | 1 |
| Sensor type | CMOS |
| Audio system | 2-way |
|---|---|
| Built-in microphone | Yes |
| Frame rate | 30 fps |
|---|
| Night vision | Yes |
|---|---|
| Night vision distance | 29.9 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Maximum aperture number | 1.65 |
|---|---|
| Fixed focal length | 3.17 mm |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
|---|
| Lens viewing angle, horizontal | 105° |
|---|---|
| Lens viewing angle, vertical | 59° |
| Lens viewing angle, diagonal | 122° |
| Compatible memory cards | MicroSD (TransFlash) |
|---|
| Pan range | 340 - 360° |
|---|---|
| Tilt angle range | 60 - 130° |
| Cable length | 3 m |
| Mounting type | Ceiling/Wall/Pole |
|---|
| Product colour | White |
|---|---|
| Form factor | Turret |
| International Protection (IP) code | IP66 |
Warranty
3 year limited warranty
