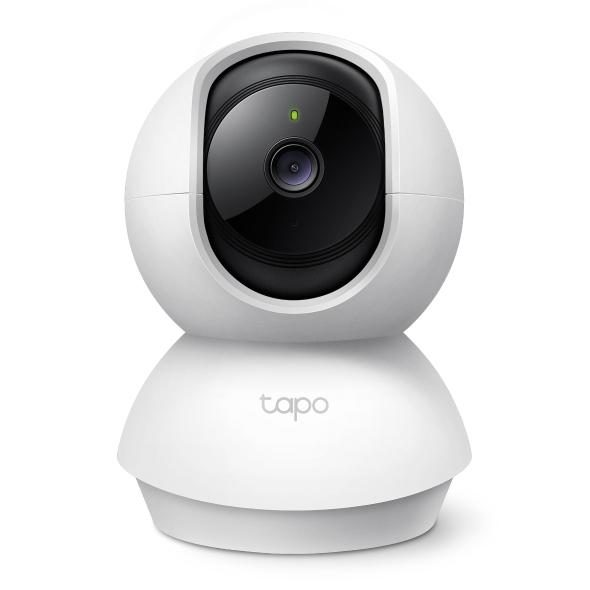

TP-Link TC71 Dome IP security camera Indoor 2304 x 1296 pixels Desk
TP-LinkModel TC71(2-PACK)
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Manual
- Yes
- Cables included
- AC
- Anchors included
- Yes
- Screws included
- Yes
Overview
TP-Link TC71 Dome IP security camera Indoor 2304 x 1296 pixels Desk is a TP-Link cctv camera with a sustainability compliance of Yes and a supported network protocols of TCP/IP, DHCP, ARP, ICMP ,DNS, NTP, HTTP, HTTPS, UDP, ONVIF, RTSP. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Sustainability compliance is Yes. Supported network protocols is TCP/IP, DHCP, ARP, ICMP ,DNS, NTP, HTTP, HTTPS, UDP, ONVIF, RTSP. Cable length is 3 m. Maximum memory card size is 512 GB. Noise reduction is Yes. Reset button is Yes. Compliance certificates is CE, EAC. Compatible memory cards is MicroSD (TransFlash). Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Manual | Yes |
|---|---|
| Cables included | AC |
| Anchors included | Yes |
| Screws included | Yes |
| Mounting template | Yes |
| Compliance certificates | CE, EAC |
|---|---|
| Operating frequency | 2400 MHz |
| Connectivity technology | Wireless |
|---|---|
| Wi-Fi | Yes |
| DC-in jack | Yes |
| Maximum memory card size | 512 GB |
| Reset button | Yes |
|---|
| Sustainability compliance | Yes |
|---|
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|---|---|
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Security algorithms | 128-bit AES, HTTPS, SSL/TLS, WPA, WPA2-PSK |
| Supported network protocols | TCP/IP, DHCP, ARP, ICMP ,DNS, NTP, HTTP, HTTPS, UDP, ONVIF, RTSP |
| Width | 86.5 mm |
|---|---|
| Depth | 85 mm |
| Height | 117.7 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Built-in speaker(s) | Yes |
|---|
| Type | IP security camera |
|---|---|
| Placement supported | Indoor |
| Virtual assistant | Amazon Alexa & Google Assistant |
| Maximum resolution | 2304 x 1296 pixels |
|---|
| Power consumption (typical) | 1.78 W |
|---|---|
| Power consumption (max) | 3.27 W |
| AC input voltage | 100 - 240 V |
| Power source type | DC |
| AC input frequency | 50 / 60 Hz |
| DC output voltage | 9 |
| DC output current | 0.6 A |
| Video motion detection | Yes |
|---|---|
| Privacy protection | Yes |
| Built-in HDD | No |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Noise reduction | Yes |
|---|
| Audio system | 2-way |
|---|---|
| Built-in microphone | Yes |
| Audio detection | Yes |
| Video compression formats | H.264 |
|---|---|
| Frame rate | 15 fps |
| Video streaming | Yes |
| Noise reduction technology | 3D noise reduction |
| Night vision | Yes |
|---|---|
| Night vision distance | 9 m |
| Infra-red wavelength | 850 nm |
| Number of lenses | 1 |
|---|---|
| Fixed focal length | 4 mm |
| Number of sensors | 1 |
|---|---|
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Camera pan control | Yes |
|---|---|
| Camera tilt control | Yes |
| Total megapixels | 3 MP |
| Video recording | Yes |
| Lens viewing angle, horizontal | 83° |
| Lens viewing angle, vertical | 45° |
| Lens viewing angle, diagonal | 98° |
| Card reader integrated | Yes |
|---|---|
| Number of cameras | 2 |
| Sensor type | CMOS |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Pan range | 0 - 360° |
|---|---|
| Cable length | 3 m |
| Mounting type | Desk |
|---|
| Product colour | White |
|---|---|
| Form factor | Dome |
Warranty
3 year limited warranty
