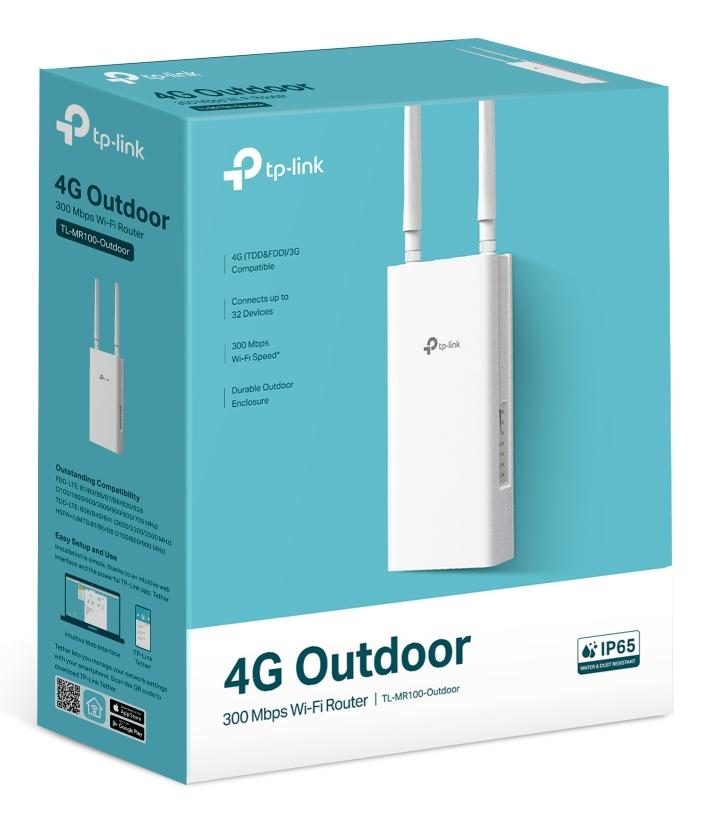

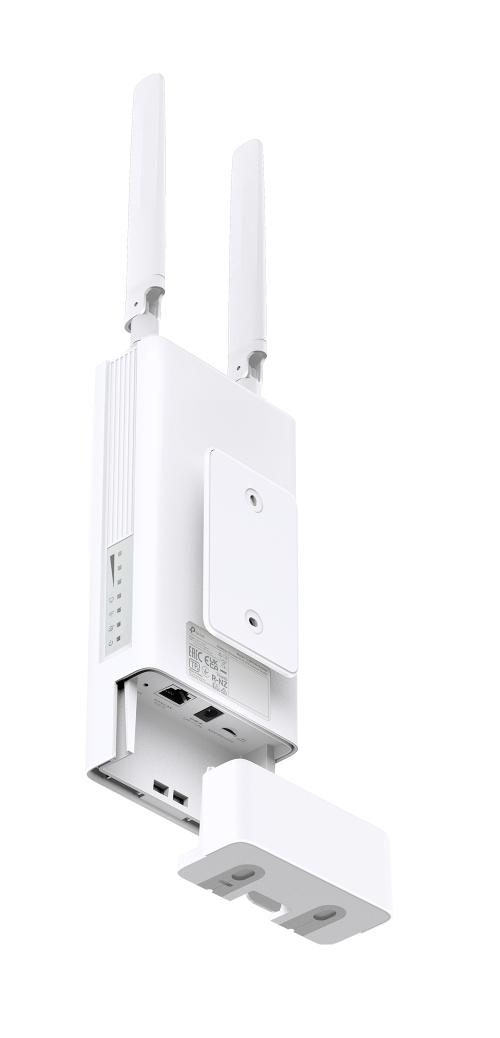

TP-Link TL-MR100-OUTDOOR wireless router Fast Ethernet Single-band (2.4 GHz) 4G White
TP-LinkModel TL-MR100-OUTDOOR
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- On/off switch
- Yes
- Ethernet LAN data rates
- 100 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
- Certification
- CE, RoHS
Overview
TP-Link TL-MR100-OUTDOOR wireless router Fast Ethernet Single-band (2.4 GHz) 4G White is a TP-Link routers & access point with a certification of CE, RoHS and a supported network protocols of IPv4, IPv6. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, RoHS. Supported network protocols is IPv4, IPv6. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 100 Mbit/s. Receiver sensitivity is 11g 54M: -74 dBm 11n HT20: -73 dBm 11n HT40: -70 dBm. Firmware upgradeable is Yes. Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) is 20 dBmW. Reset button is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| On/off switch | Yes |
|---|---|
| Ethernet LAN data rates | 100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | CE, RoHS |
| Cables included | LAN (RJ-45) |
|---|---|
| Mounting kit | Yes |
| PoE injector included | Yes |
| Quick installation guide | Yes |
| Product colour | White |
|---|---|
| Wall mountable | Yes |
| International Protection (IP) code | IP65 |
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Firewall | Yes |
|---|---|
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Schedule access | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
|---|---|
| Wireless statistics | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Mobile network generation | 4G |
|---|---|
| 3G | Yes |
| 4G | Yes |
| 3G standards | HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 4G bands supported | 700,800,850,900,1800,2100,2600 MHz |
| Ethernet LAN interface type | Fast Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Port forwarding | Yes |
| Port triggering | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Dynamic DNS (DDNS) | Yes |
| 3G bands supported | 850,900,2100 MHz |
| Wireless radio | Yes |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-PSK |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) | 20 dBmW |
| Receiver sensitivity | 11g 54M: -74 dBm 11n HT20: -73 dBm 11n HT40: -70 dBm |
| Supported network protocols | IPv4, IPv6 |
| Wi-Fi band | Single-band (2.4 GHz) |
|---|---|
| WLAN data transfer rate (max) | 300 Mbit/s |
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Width | 226.6 mm |
|---|---|
| Depth | 100 mm |
| Height | 54.7 mm |
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| USB port | No |
|---|---|
| DC-in jack | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
|---|---|
| Power source type | DC, PoE |
| Output current | 1 A |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Antenna design | External |
|---|---|
| Antennas quantity | 2 |
