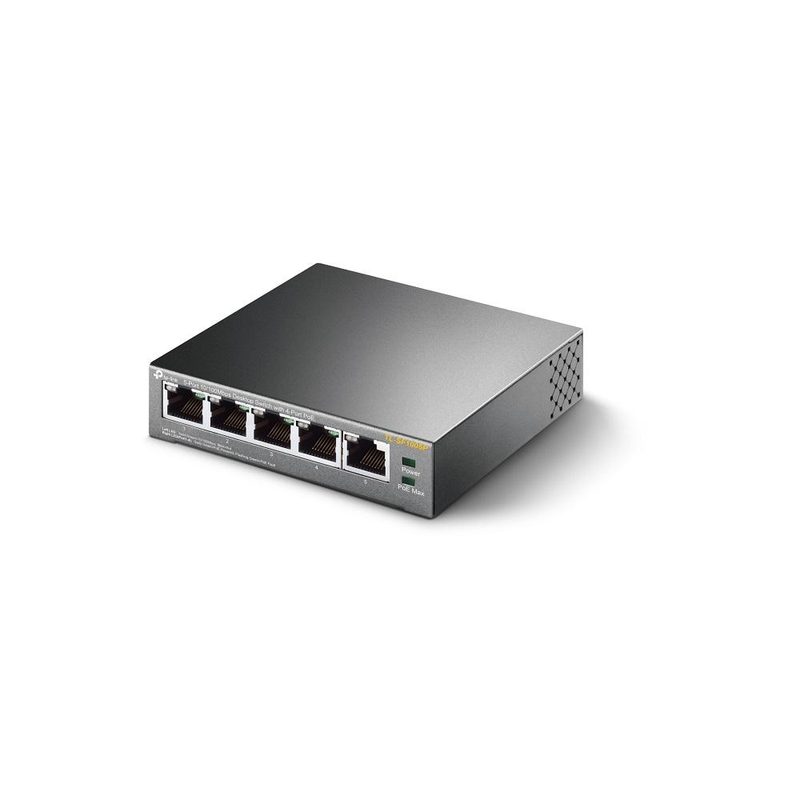

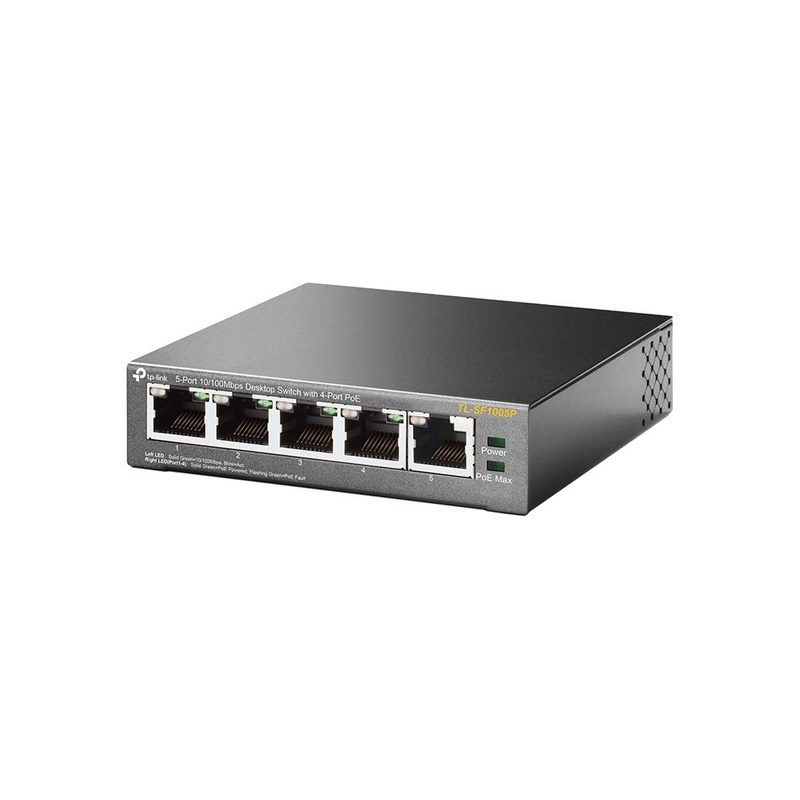

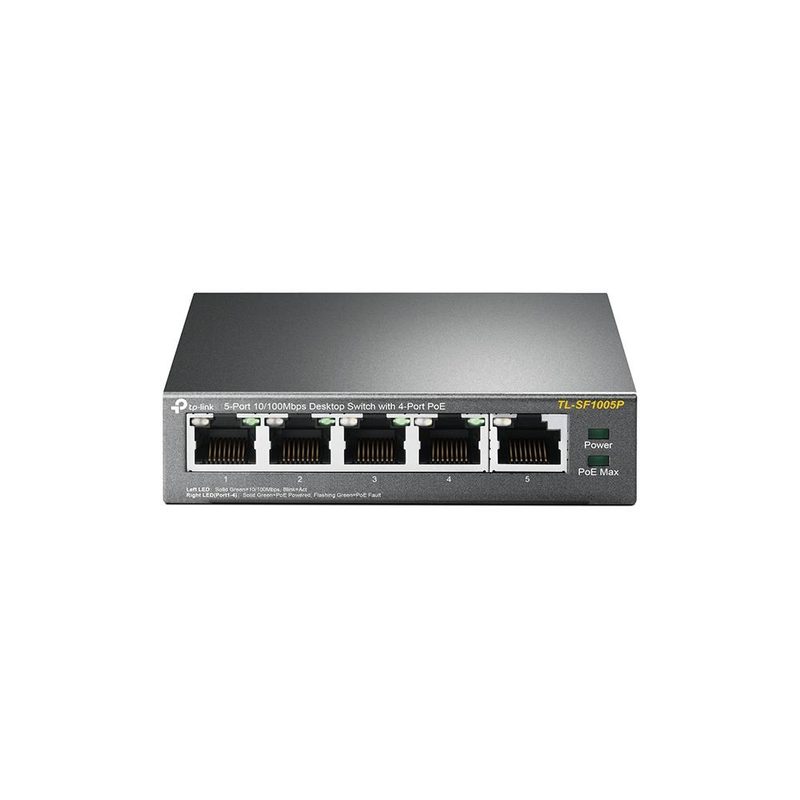

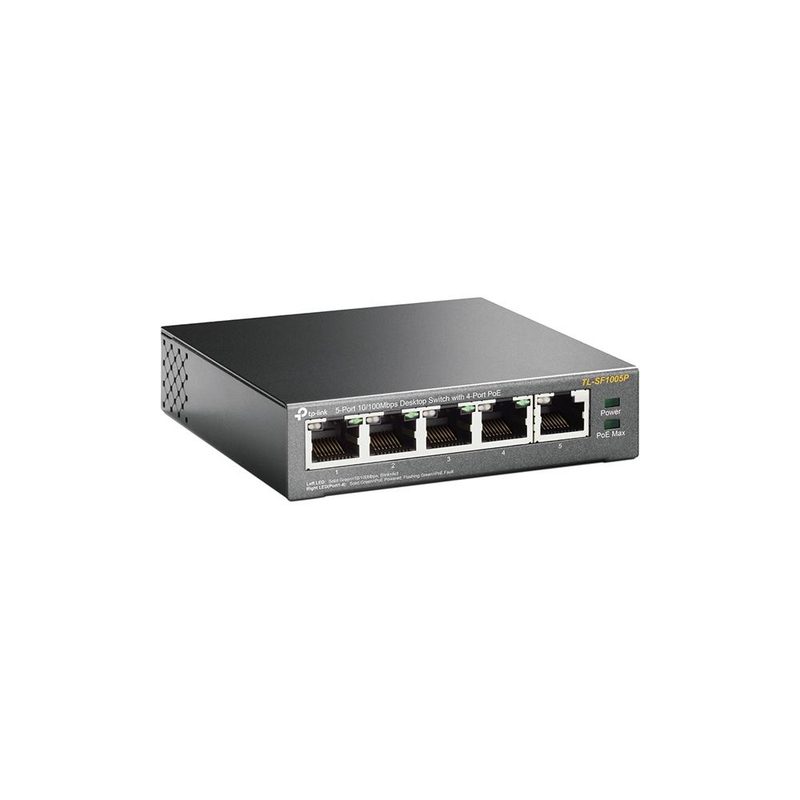

TP-Link TL-SF1005P Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
TP-LinkModel TL-SF1005P(UN)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 85176990
- Switch type
- Unmanaged
- Certification
- FCC, CE, RoHS
- User guide
- Yes
Overview
TP-Link TL-SF1005P Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black is a TP-Link switches & adapter with a power connector of DC-in jack and a certification of FCC, CE, RoHS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is DC-in jack. Certification is FCC, CE, RoHS. Harmonized System (HS) code is 85176990. User guide is Yes. Heat dissipation is 5.73 BTU/h. Switch type is Unmanaged. Flow control support is Yes. Auto-negotiation is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: Lifetime. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Harmonized System (HS) code | 85176990 |
|---|
| Switch type | Unmanaged |
|---|---|
| Certification | FCC, CE, RoHS |
| User guide | Yes |
|---|
| Product colour | Black |
|---|---|
| Rack mounting | No |
| Auto MDI/MDI-X | Yes |
|---|
| Width | 99.8 mm |
|---|---|
| Depth | 98 mm |
| Height | 25 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 5.73 BTU/h |
|---|
| Power over Ethernet (PoE) ports quantity | 4 |
|---|---|
| Total Power over Ethernet (PoE) budget | 58 W |
| Power consumption (max) | 63.51 W |
|---|---|
| Input current | 1.31 A |
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Power source | DC |
| Power over Ethernet (PoE) | Yes |
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Warranty
Lifetime
