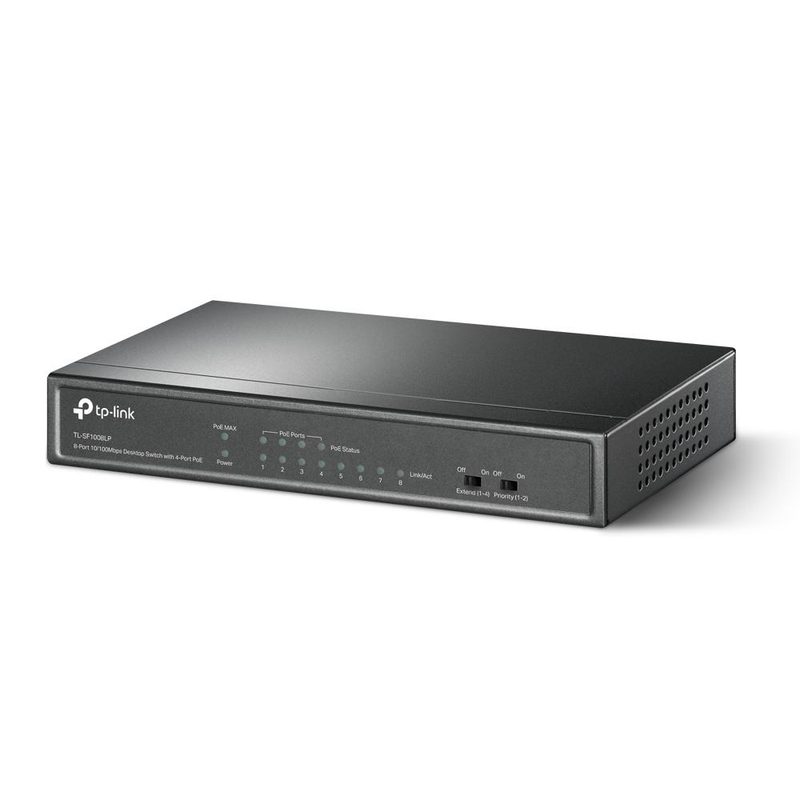

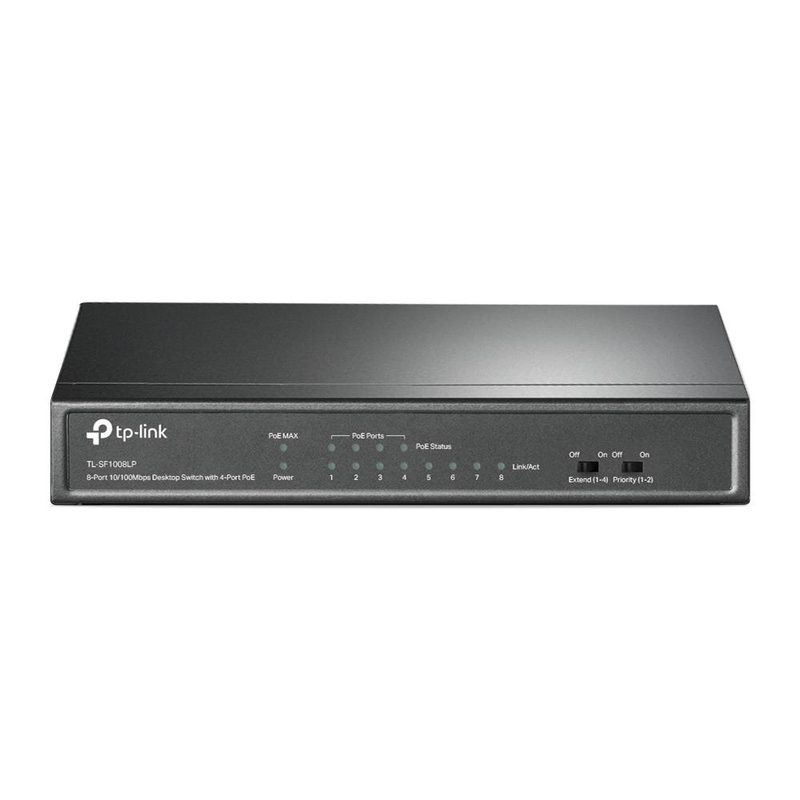

TP-Link TL-SF1008LP Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
TP-LinkModel TL-SF1008LP(UN)
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 85176990
- Cables included
- AC
- User guide
- Yes
- Sustainability compliance
- Yes
Overview
TP-Link TL-SF1008LP Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black is a TP-Link switches & adapter with a sustainability compliance of Yes and a power connector of DC-in jack. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Sustainability compliance is Yes. Power connector is DC-in jack. Harmonized System (HS) code is 85176990. Routing protocols is OSPF. Fanless is Yes. IPv4 & IPv6 features is IPv6 portal. User guide is Yes. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Harmonized System (HS) code | 85176990 |
|---|
| Cables included | AC |
|---|---|
| User guide | Yes |
| Sustainability compliance | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 171 mm |
|---|---|
| Depth | 98 mm |
| Height | 27 mm |
| Package width | 223 mm |
|---|---|
| Package depth | 280 mm |
| Package height | 68 mm |
| Package weight | 750 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Stackable | No |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Number of fans | 0 fan(s) |
| Rack mounting | No |
| Wall mountable | Yes |
| Heat dissipation | 160.61 BTU/h |
|---|
| AC adapter included | Yes |
|---|---|
| Bandwidth | 1.6 Gbit/s |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Switch type | Unmanaged |
| Power over Ethernet (PoE) ports quantity | 4 |
|---|---|
| Total Power over Ethernet (PoE) budget | 41 W |
| Power consumption (max) | 47.1 W |
|---|---|
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Input current | 0.81 A |
| Power supply included | No |
| DC input voltage | 53.5 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | Yes |
| Fanless | Yes |
|---|
| IPv4 & IPv6 features | IPv6 portal |
|---|---|
| Routing protocols | OSPF |
| DHCP features | DHCPv6 relay |
|---|
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 1.6 Gbit/s |
| Forwarding rate | 1.1904 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 2000 |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3x |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
