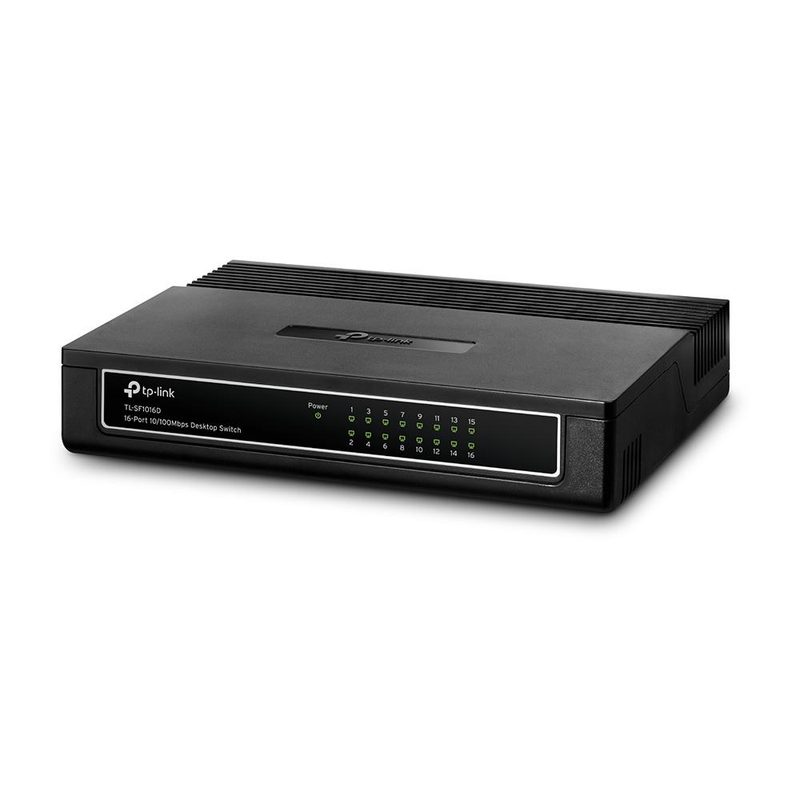

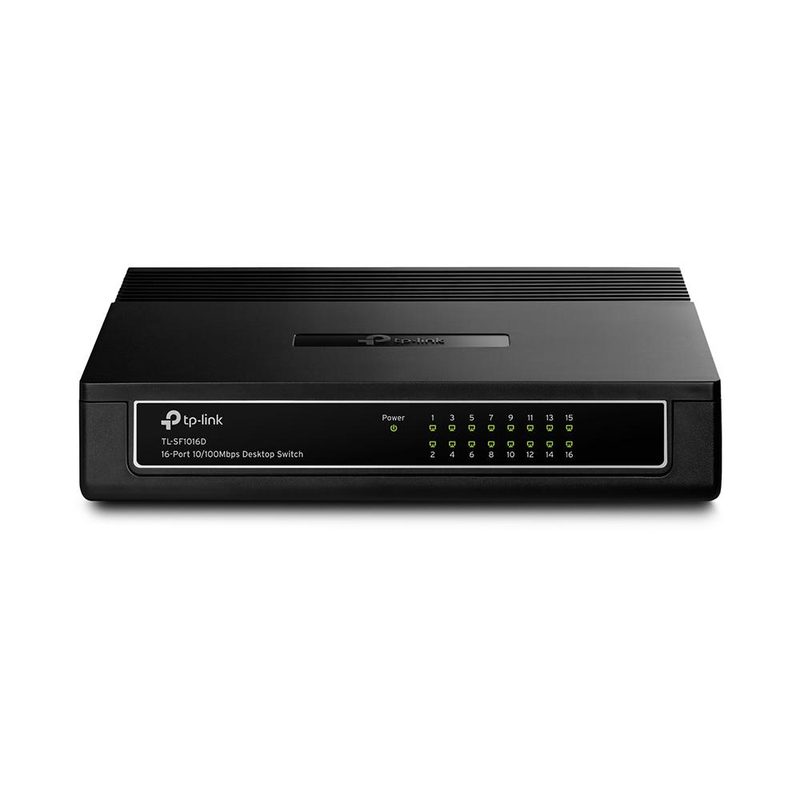

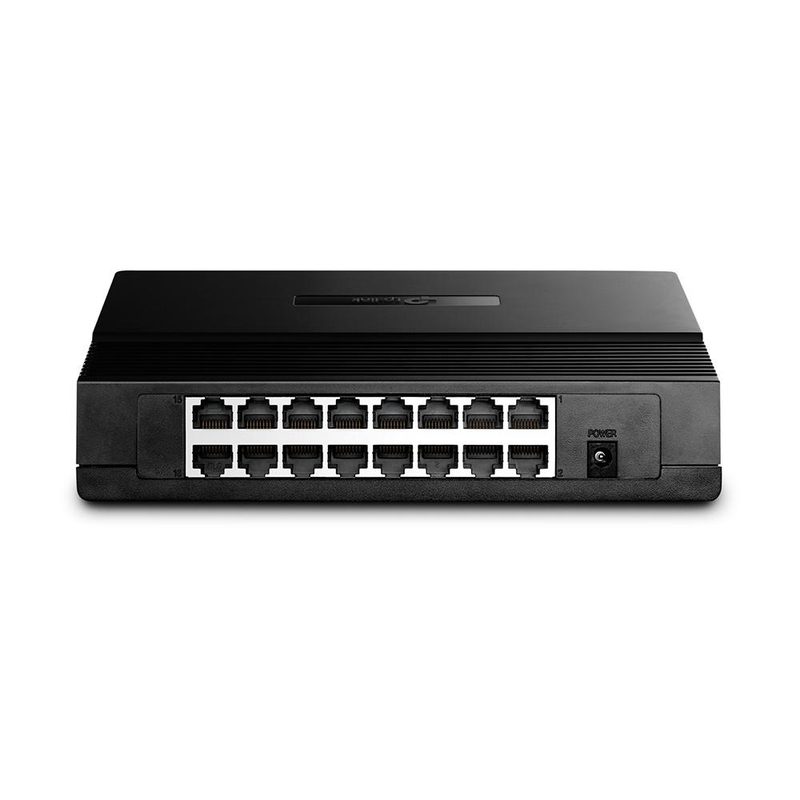

TP-Link TL-SF1016D Fast Ethernet (10/100) Black
TP-LinkModel TL-SF1016D(UN)
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 85176990
- Product colour
- Black
- Rack mounting
- Yes
- Certification
- FCC, CE, RoHS
Overview
TP-Link TL-SF1016D Fast Ethernet (10/100) Black is a TP-Link switches & adapter with a power connector of DC-in jack and a certification of FCC, CE, RoHS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is DC-in jack. Certification is FCC, CE, RoHS. Harmonized System (HS) code is 85176990. Fanless is Yes. Packet buffer memory is 2 MB. Auto-negotiation is Yes. Height is 44 mm. Depth is 180 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Harmonized System (HS) code | 85176990 |
|---|
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| Certification | FCC, CE, RoHS |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 294 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Power consumption (typical) | 2.23 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.6 A |
| DC input voltage | 9 V |
| Power source | DC |
| Power over Ethernet (PoE) | No |
| Fanless | Yes |
|---|
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 3.2 Gbit/s |
| Throughput | 2.38 Mpps |
| Packet buffer memory | 2 MB |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Warranty
3 year
