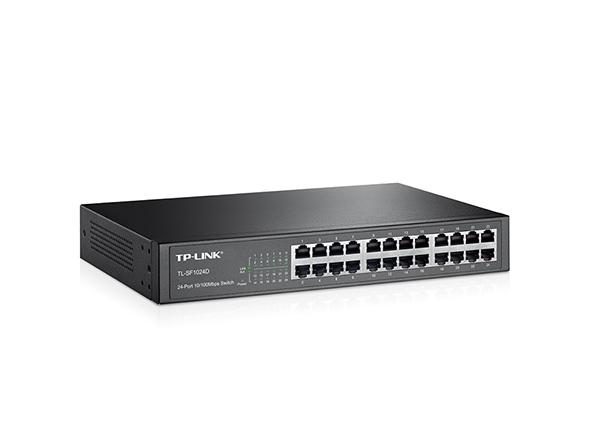

TP-LINK TL-SF1024D 24-PORT 10/100MBPS DESKTOP/RACK MOUNT SWITCH
TP-LinkModel TL-SF1024DSKU TL-SF1024D
In stock
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 85176990
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Switch type
- Unmanaged
- Ethernet LAN data rates
- 10,100 Mbit/s
Overview
TP-LINK TL-SF1024D 24-PORT 10/100MBPS DESKTOP/RACK MOUNT SWITCH
Specifications
| Harmonized System (HS) code | 85176990 |
|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Switch type | Unmanaged |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Sustainability compliance | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 294 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Package width | 250 mm |
|---|---|
| Package depth | 400 mm |
| Package height | 80 mm |
| Package weight | 2 kg |
| Package type | Box |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 10.88 BTU/h |
|---|
| Cables included | AC |
|---|---|
| Rack mount kit | Yes |
| User guide | Yes |
| Power consumption (typical) | 3.53 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Fanless | Yes |
|---|
| Stackable | No |
|---|---|
| Product colour | Grey |
| Housing material | Metal |
| Rack mounting | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 4.8 Gbit/s |
| Throughput | 3.57 Mpps |
| Forwarding rate | 3.57 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 2 MB |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat5e, Cat4, Cat5 |
| Supported network protocols | CSMA/CD, TCP/IP |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | AC-in jack |
Warranty
Lifetime
