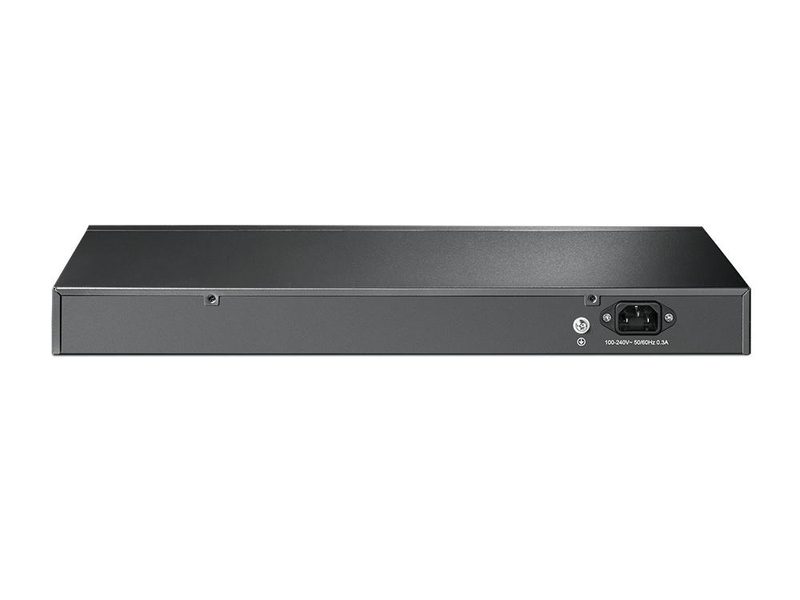

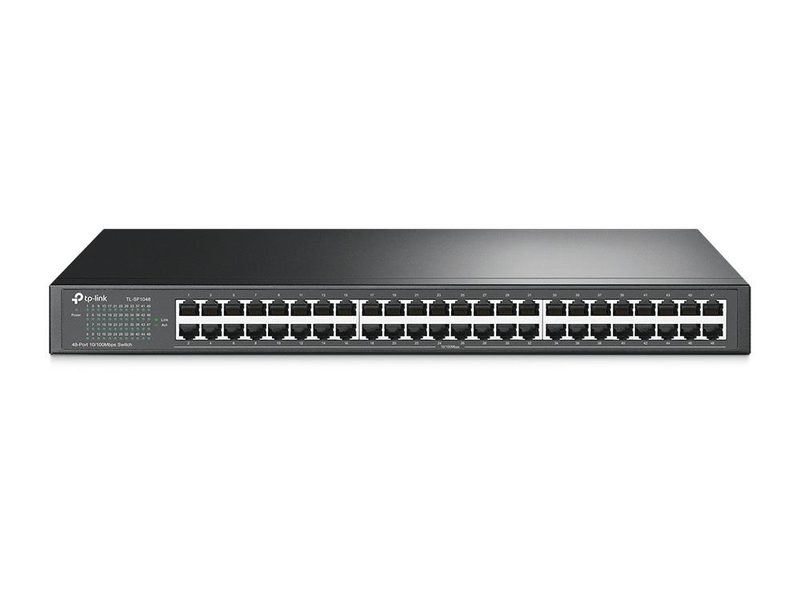

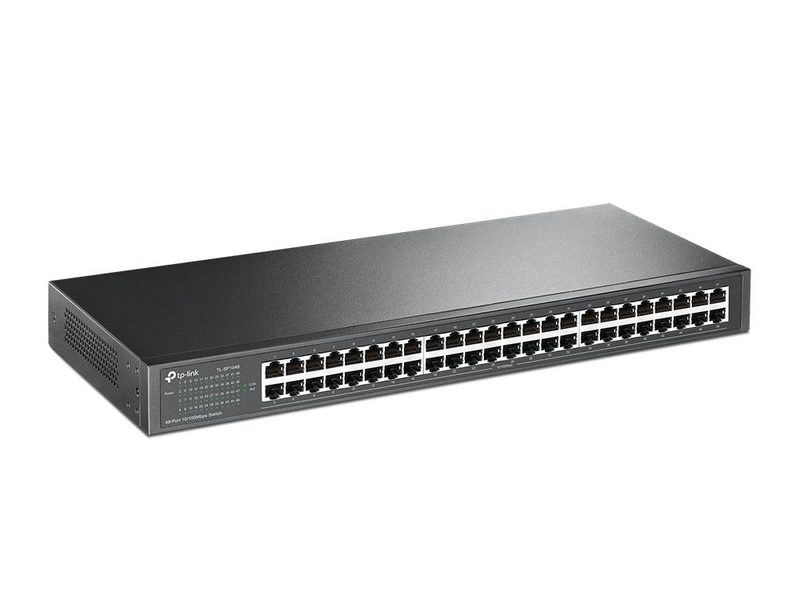

TP-Link TL-SF1048 Unmanaged Fast Ethernet (10/100) 1U Black
TP-LinkModel TL-SF1048(UN)
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 85176990
- Switch type
- Unmanaged
- Product colour
- Black
- Rack mounting
- Yes
Overview
TP-Link TL-SF1048 Unmanaged Fast Ethernet (10/100) 1U Black is a TP-Link switches & adapter with a power connector of DC-in jack and a harmonized system (hs) code of 85176990. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is DC-in jack. Harmonized System (HS) code is 85176990. Fanless is Yes. Switch type is Unmanaged. Flow control support is Yes. Auto-negotiation is Yes. Rack mount kit is Yes. Height is 44 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Harmonized System (HS) code | 85176990 |
|---|
| Switch type | Unmanaged |
|---|
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Auto MDI/MDI-X | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Power consumption (typical) | 9.9 W |
|---|---|
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | AC |
| Fanless | Yes |
|---|
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 96 Gbit/s |
| Forwarding rate | 7.14 Mpps |
| Store-and-forward | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
