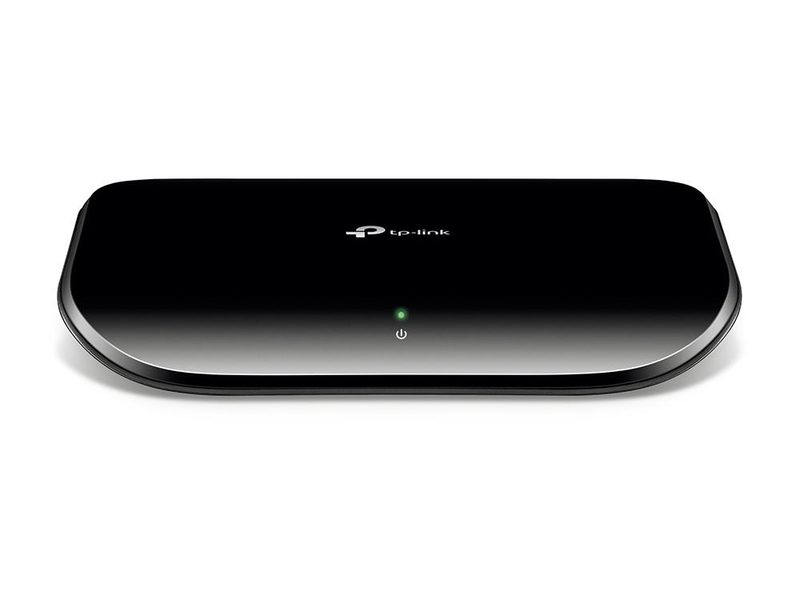

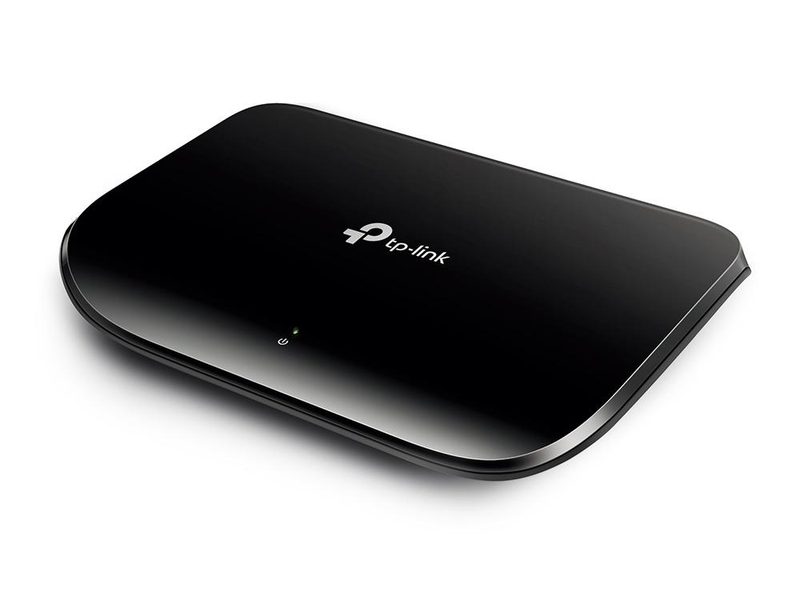

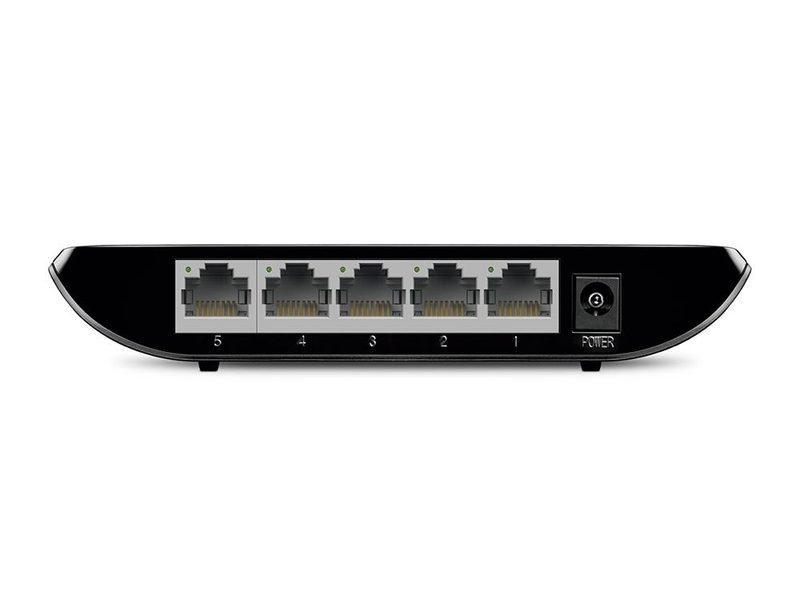

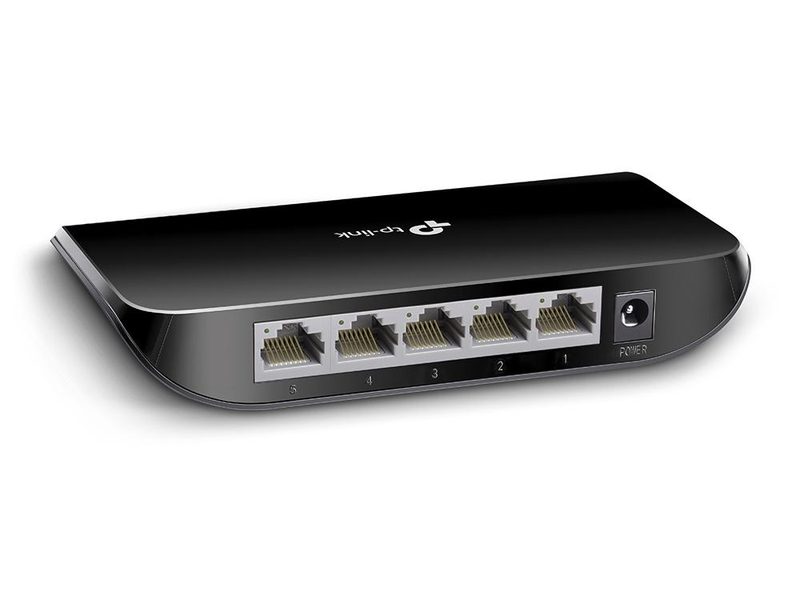

TP-Link TL-SG1005D(UN) network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
TP-LinkModel TL-SG1005D(UN)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Maximum data transfer rate
- 1 Gbit/s
- Switch type
- Unmanaged
- Supported data transfer rates
- 10/100/1000 Mbit/s
- Product colour
- Black
Overview
TP-Link TL-SG1005D(UN) network switch Unmanaged Gigabit Ethernet (10/100/1000) Black is a TP-Link switches & adapter with a power connector of DC-in jack and a heat dissipation of 8.22 BTU/h. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is DC-in jack. Heat dissipation is 8.22 BTU/h. Maximum data transfer rate is 1 Gbit/s. Switch type is Unmanaged. Supported data transfer rates is 10/100/1000 Mbit/s. Flow control support is Yes. Auto-negotiation is Yes. MAC address auto-learning supported is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Maximum data transfer rate | 1 Gbit/s |
|---|---|
| Switch type | Unmanaged |
| Supported data transfer rates | 10/100/1000 Mbit/s |
| Product colour | Black |
|---|---|
| Rack mounting | No |
| Power consumption (max) | 2.41 W |
|---|---|
| Input current | 0.6 A |
| Power source | DC |
| Input voltage | 9 V |
| Power over Ethernet (PoE) | No |
| Quick start guide | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 165 mm |
|---|---|
| Depth | 108 mm |
| Height | 28 mm |
| Package width | 145 mm |
|---|---|
| Package depth | 108 mm |
| Package height | 85 mm |
| Package weight | 240 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 8.22 BTU/h |
|---|
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
