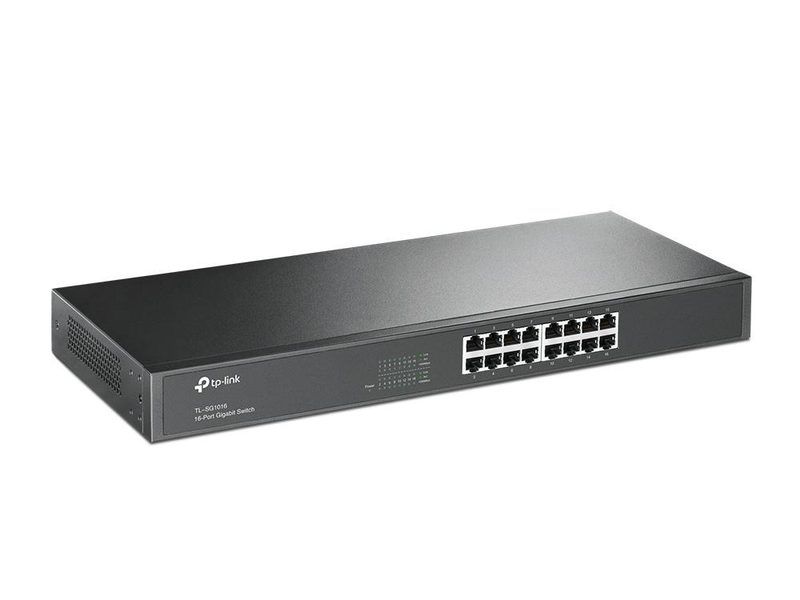

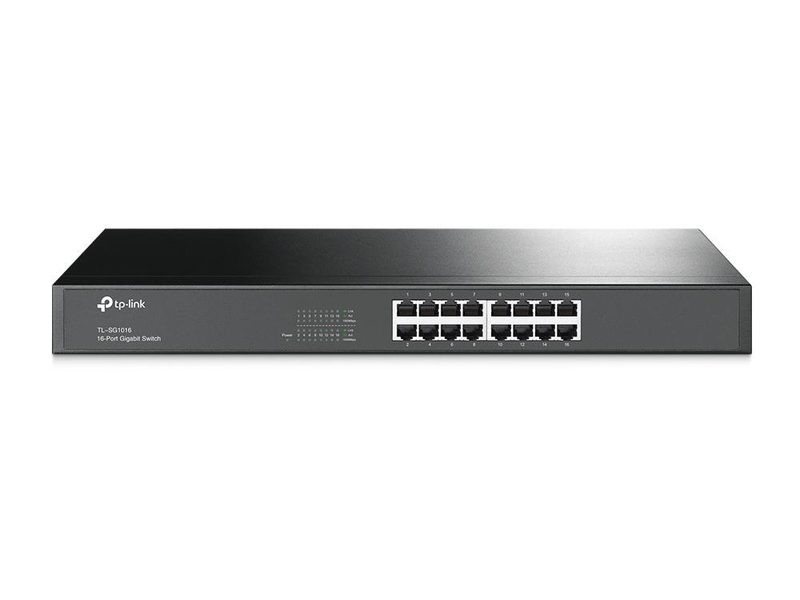

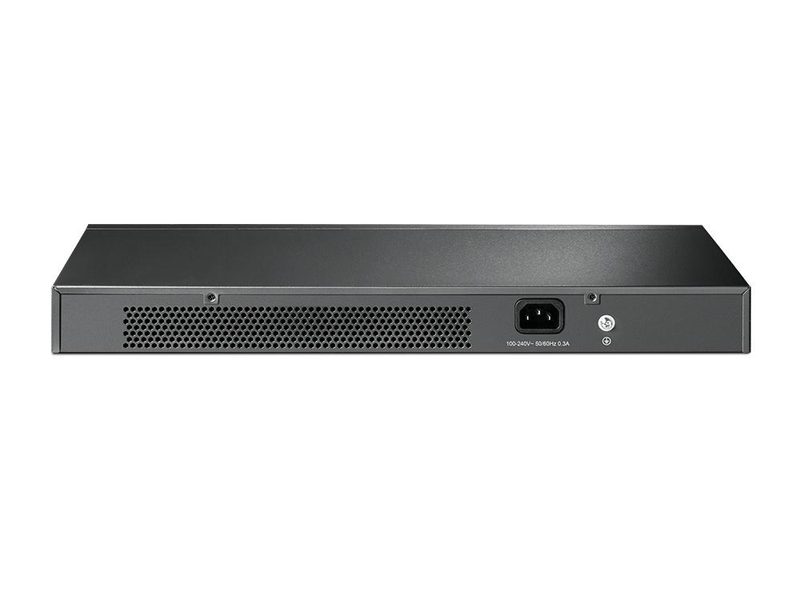

TP-Link TL-SG1016(UN) network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black
TP-LinkModel TL-SG1016(UN)
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 85176990
- Switch type
- Unmanaged
- Ethernet LAN data rates
- 10,100,480,800,1000 Mbit/s
- Certification
- FCC, CE, RoHS
Overview
TP-Link TL-SG1016(UN) network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black is a TP-Link switches & adapter with a certification of FCC, CE, RoHS and a harmonized system (hs) code of 85176990. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is FCC, CE, RoHS. Harmonized System (HS) code is 85176990. Fanless is Yes. Ethernet LAN data rates is 10,100,480,800,1000 Mbit/s. Heat dissipation is 35.6 BTU/h. Switch type is Unmanaged. Flow control support is Yes. Auto-negotiation is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Harmonized System (HS) code | 85176990 |
|---|
| Switch type | Unmanaged |
|---|---|
| Ethernet LAN data rates | 10,100,480,800,1000 Mbit/s |
| Certification | FCC, CE, RoHS |
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
|---|---|
| Password protection | Yes |
| IGMP snooping | Yes |
| Power consumption (typical) | 9.26 W |
|---|---|
| Power consumption (max) | 10.44 W |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | No |
| Auto MDI/MDI-X | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Activity, Link, Power |
|---|
| Heat dissipation | 35.6 BTU/h |
|---|
| Access Control List (ACL) | Yes |
|---|---|
| Quality of Service (QoS) support | Yes |
| Cables included | AC |
|---|---|
| Rack mount kit | Yes |
| Fanless | Yes |
|---|
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Security algorithms | 802.1x RADIUS |
| Full duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Head-of-line (HOL) blocking | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
