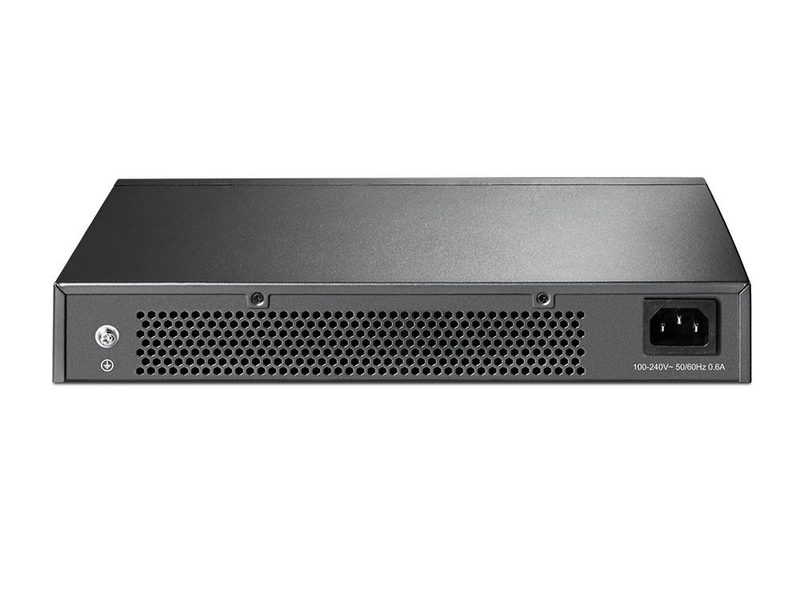

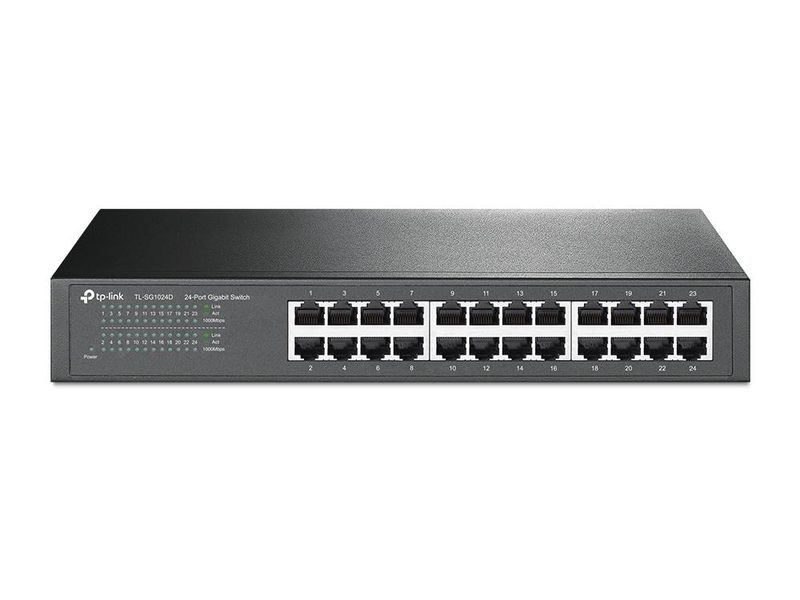

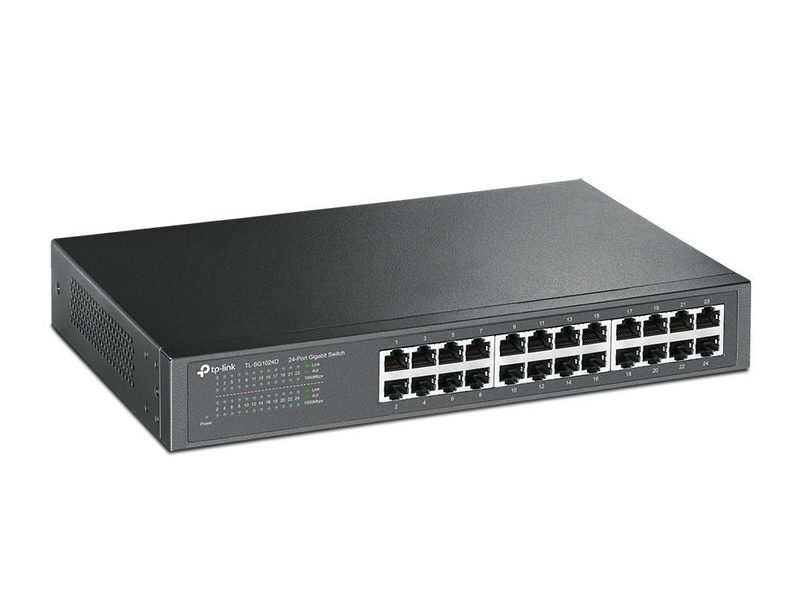

TP-Link TL-SG1024D(UN) network switch Unmanaged Gigabit Ethernet (10/100/1000) Grey
TP-LinkModel TL-SG1024D(UN)
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 85176990
- Switch type
- Unmanaged
- Certification
- FCC, CE, RoHS
- Auto MDI/MDI-X
- Yes
Overview
TP-Link TL-SG1024D(UN) network switch Unmanaged Gigabit Ethernet (10/100/1000) Grey is a TP-Link switches & adapter with a power connector of DC-in jack and a certification of FCC, CE, RoHS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is DC-in jack. Certification is FCC, CE, RoHS. Harmonized System (HS) code is 85176990. Supported network protocols is CSMA/CD, TCP/IP. User guide is Yes. Heat dissipation is 44.63 BTU/h. Switch type is Unmanaged. Flow control support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Harmonized System (HS) code | 85176990 |
|---|
| Switch type | Unmanaged |
|---|---|
| Certification | FCC, CE, RoHS |
| Auto MDI/MDI-X | Yes |
|---|
| Width | 294 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 44.63 BTU/h |
|---|
| Cables included | AC |
|---|---|
| Rack mount kit | Yes |
| User guide | Yes |
| Power consumption (max) | 13.08 W |
|---|---|
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Stackable | Yes |
|---|---|
| Product colour | Grey |
| Rack mounting | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Supported network protocols | CSMA/CD, TCP/IP |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
