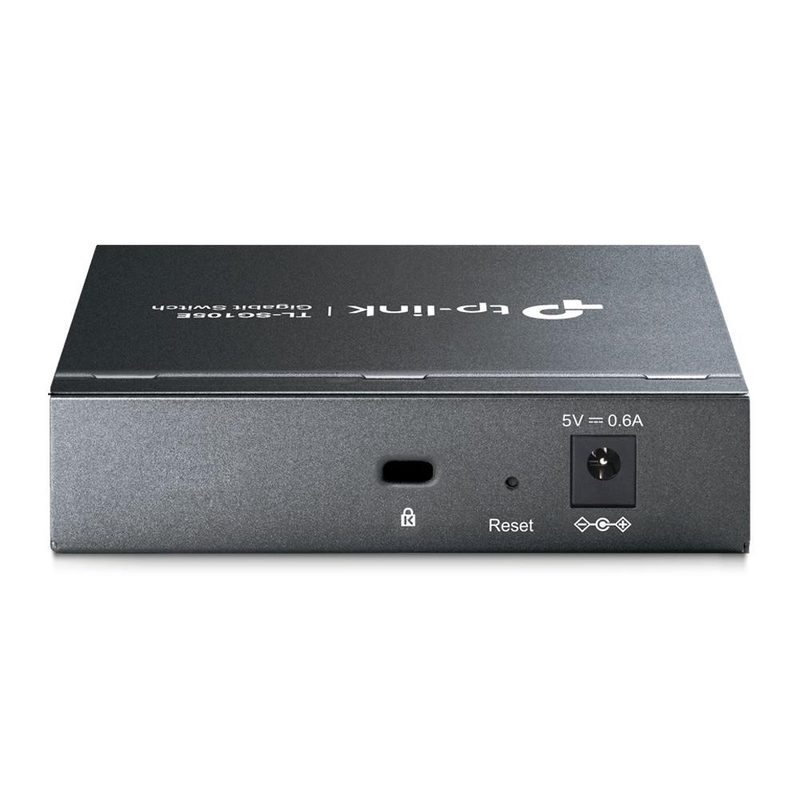

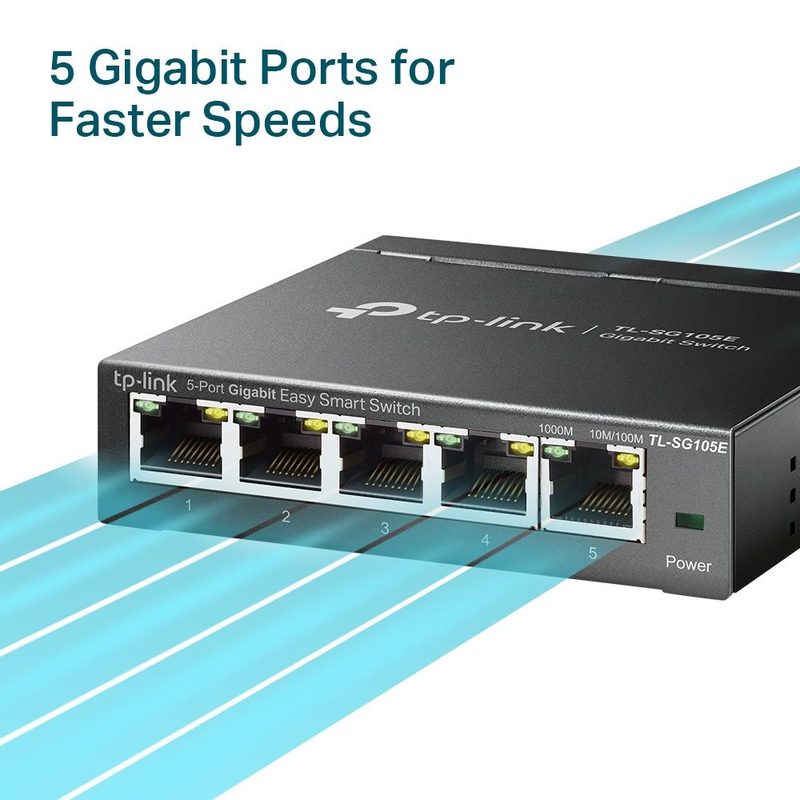

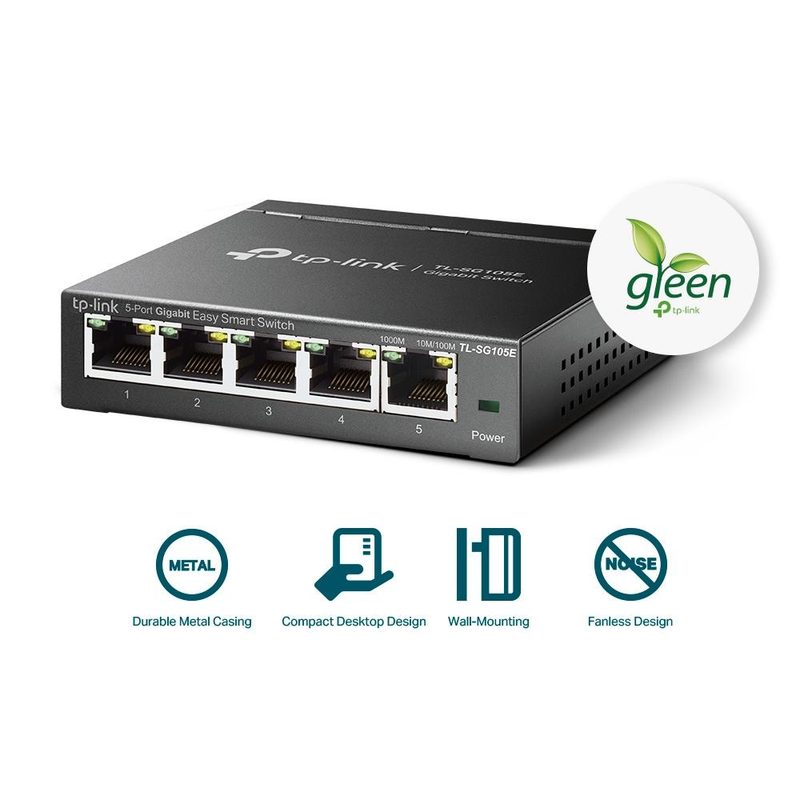

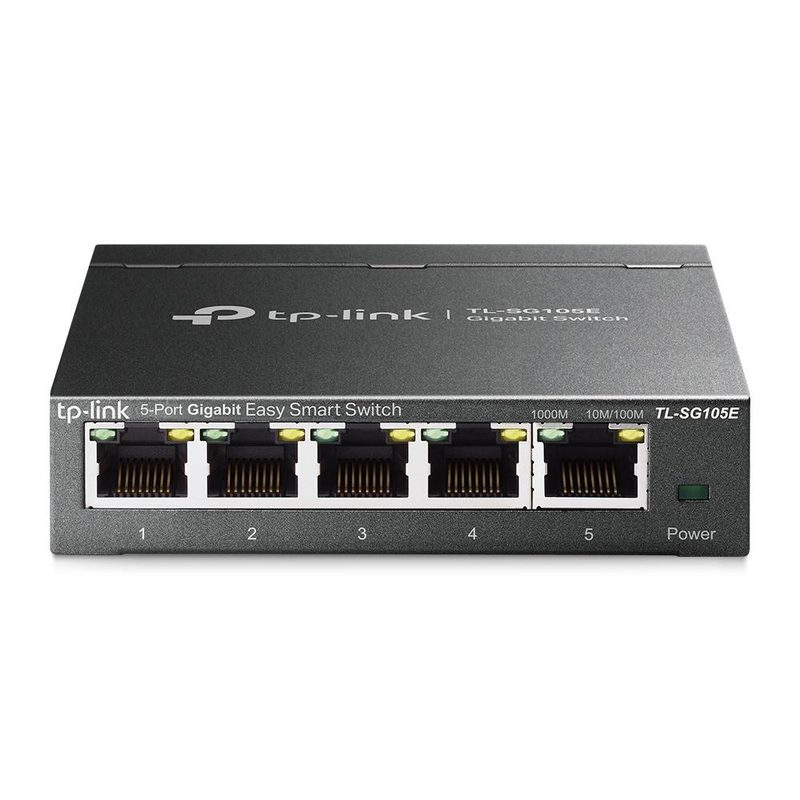

TP-Link TL-SG105E(UN) network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
TP-LinkModel TL-SG105E(UN)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 85176990
- Switch type
- Managed
- Certification
- FCC, CE, RoHS
- Product colour
- Black
Overview
TP-Link TL-SG105E(UN) network switch Managed L2 Gigabit Ethernet (10/100/1000) Black is a TP-Link switches & adapter with a certification of FCC, CE, RoHS and a harmonized system (hs) code of 85176990. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is FCC, CE, RoHS. Harmonized System (HS) code is 85176990. Number of VLANs is 32. User guide is Yes. Packet buffer memory is 1 MB. Heat dissipation is 9.62 BTU/h. Switch type is Managed. Flow control support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Harmonized System (HS) code | 85176990 |
|---|
| Switch type | Managed |
|---|---|
| Certification | FCC, CE, RoHS |
| Product colour | Black |
|---|---|
| Rack mounting | No |
| IGMP snooping | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 100 mm |
|---|---|
| Depth | 98 mm |
| Height | 25 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 9.62 BTU/h |
|---|
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| User guide | Yes |
| Power consumption (max) | 2.82 W |
|---|---|
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Input current | 0.6 A |
| Power supply included | Yes |
| DC input voltage | 5 V |
| Power over Ethernet (PoE) | No |
| MAC address table | 8192 entries |
|---|---|
| Throughput | 7.4 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Number of VLANs | 32 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Web-based management | Yes |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
