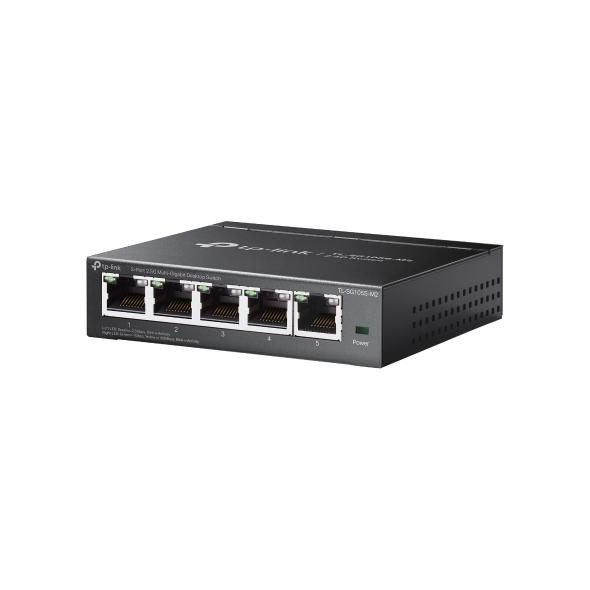

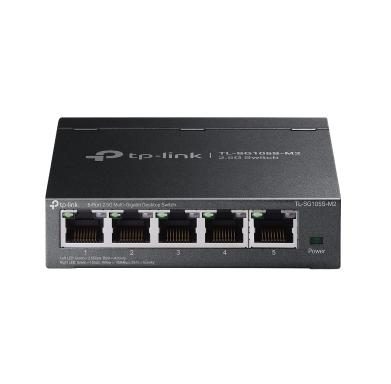

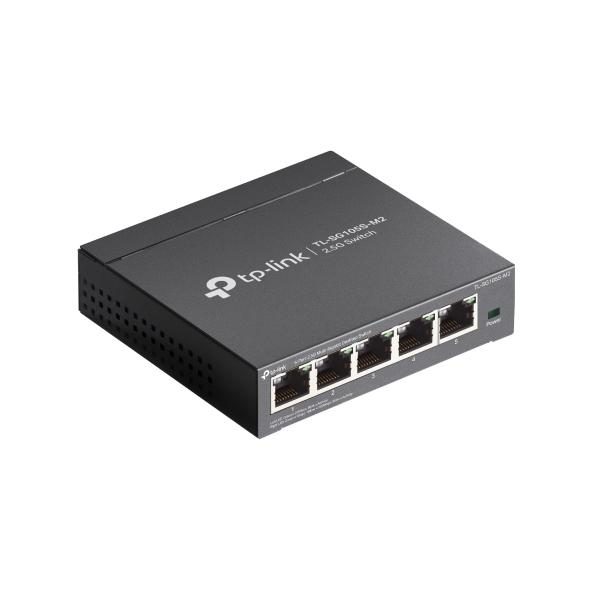

TP-Link TL-SG105S-M2 network switch Managed 2.5G Ethernet (100/1000/2500) Black
TP-LinkModel TL-SG105S-M2
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Switch type
- Managed
- Product colour
- Black
- Housing material
- Metal
Overview
TP-Link TL-SG105S-M2 network switch Managed 2.5G Ethernet (100/1000/2500) Black is a TP-Link switches & adapter with a fanless of Yes and a compliance certificates of CE, Federal Communications Commission (FCC), RoHS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Fanless is Yes. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Heat dissipation is 19.754 BTU/h. Switch type is Managed. Flow control support is Yes. Auto-negotiation is Yes. IGMP snooping is Yes. Quality of Service (QoS) support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Switch type | Managed |
| Product colour | Black |
|---|---|
| Housing material | Metal |

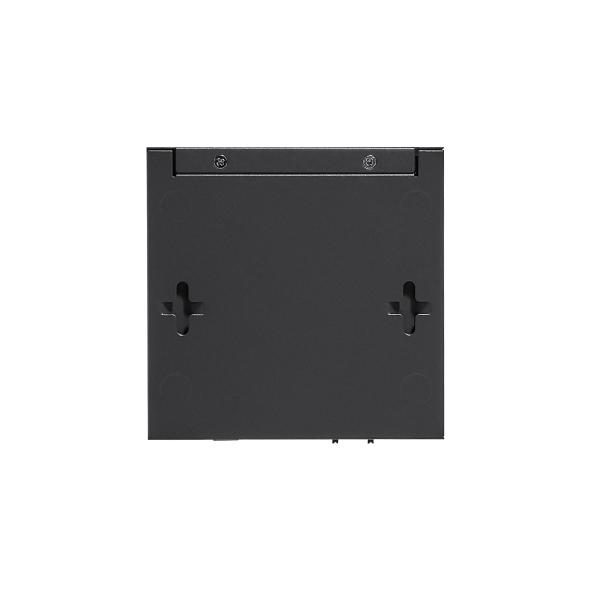

| Wall mountable | Yes |
| IGMP snooping | Yes |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Quick start guide | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 99.8 mm |
|---|---|
| Depth | 98 mm |
| Height | 25 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Link, Power |
|---|
| Heat dissipation | 19.754 BTU/h |
|---|
| Power consumption (max) | 5.81 W |
|---|---|
| Input current | 0.6 A |
| Power supply included | Yes |

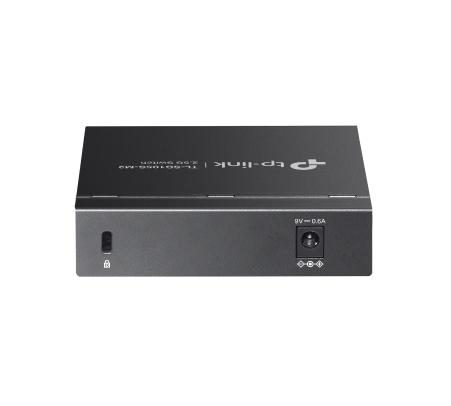

| DC input voltage | 9 V |
| Power source | DC |
| Power over Ethernet (PoE) | No |
| Fanless | Yes |
|---|
| MAC address table | 4000 entries |
|---|---|
| Switching capacity | 25 Gbit/s |
| Forwarding rate | 18.6 Mpps |
| Jumbo frames support | Yes |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
