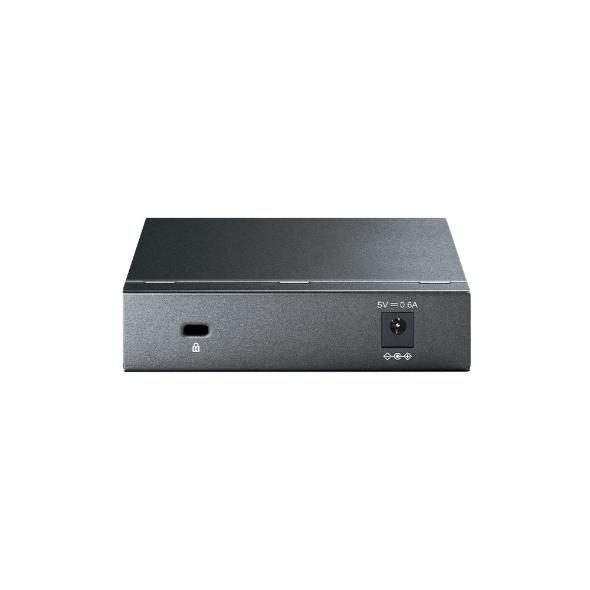

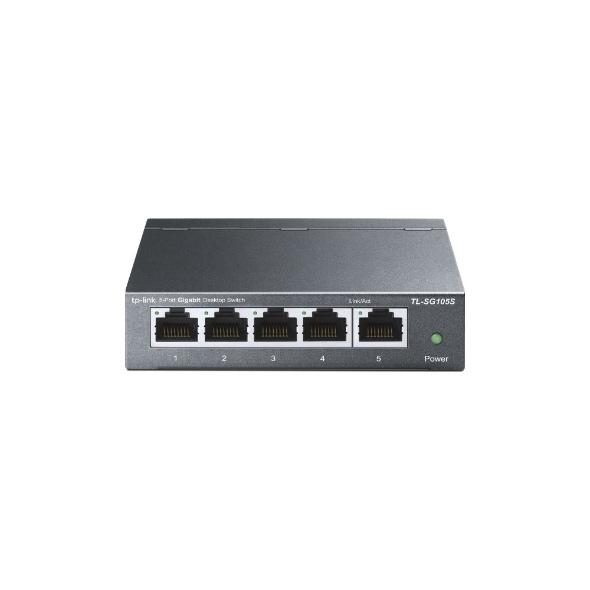

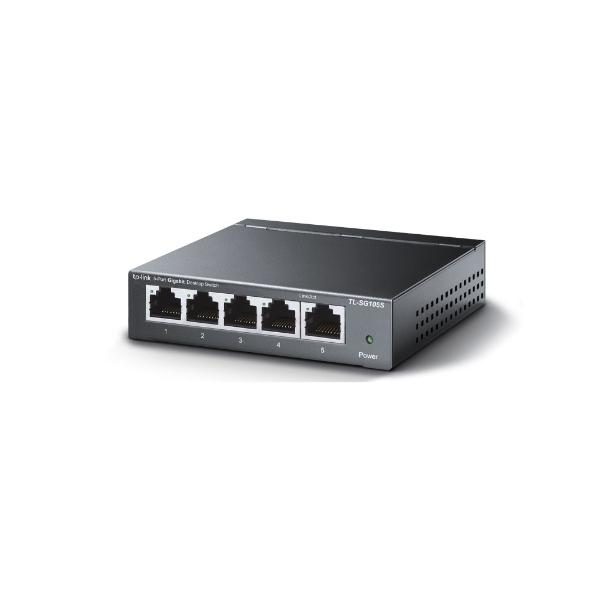

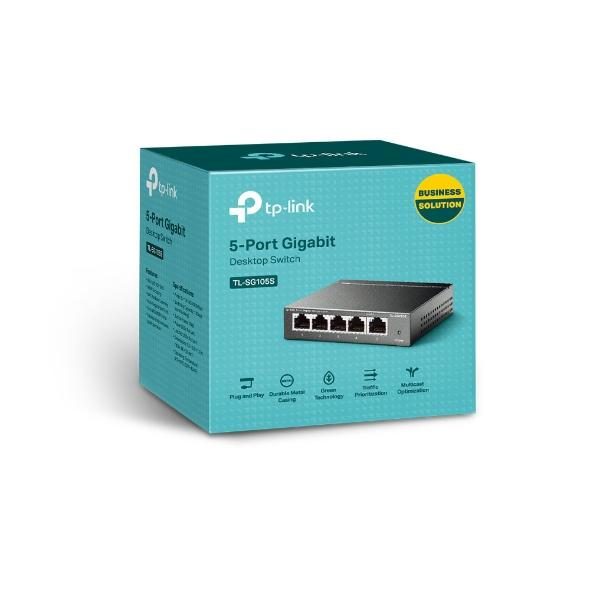

TP-Link TL-SG105S(UN) network switch Unmanaged Gigabit Ethernet (10/100/1000) Desktop Black
TP-LinkModel TL-SG105S(UN)
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Unmanaged
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Certification
- CE, FCC, RoHS
- Product colour
- Black
Overview
TP-Link TL-SG105S(UN) network switch Unmanaged Gigabit Ethernet (10/100/1000) Desktop Black is a TP-Link switches & adapter with a certification of CE, FCC, RoHS and a ethernet lan data rates of 10,100,1000 Mbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS. Ethernet LAN data rates is 10,100,1000 Mbit/s. Packet buffer memory is 1 MB. Switch type is Unmanaged. Flow control support is Yes. Auto-negotiation is Yes. Full duplex is Yes. Quality of Service (QoS) support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Unmanaged |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE, FCC, RoHS |
| Product colour | Black |
|---|---|
| Rack mounting | No |
| Form factor | Desktop |
| Quality of Service (QoS) support | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 99.8 mm |
|---|---|
| Depth | 98 mm |
| Height | 25 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Activity, Link, Power |
|---|
| Power consumption (max) | 2.3 W |
|---|---|
| Input current | 0.6 A |
| Power supply included | Yes |
| Power source | DC |
| Input voltage | 5 V |
| Power over Ethernet (PoE) | No |
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.4 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
