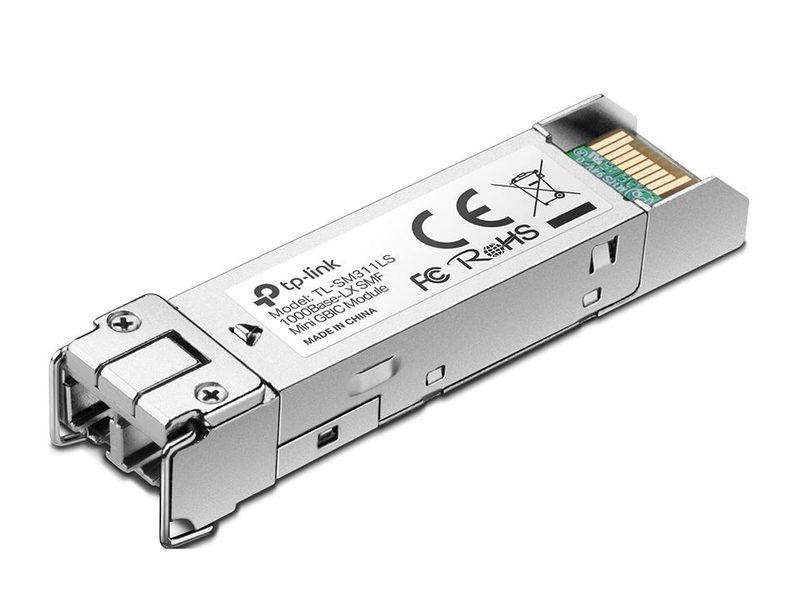

TP-Link TL-SM311LS network transceiver module Fiber optic 1250 Mbit/s mini-GBIC/SFP 1310 nm
TP-LinkModel SM311LS(8-PACK)
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- RoHS
- Interface type
- mini-GBIC/SFP
- Harmonized System (HS) code
- 85369010
- Networking standards
- IEEE 802.3z
Overview
TP-Link TL-SM311LS network transceiver module Fiber optic 1250 Mbit/s mini-GBIC/SFP 1310 nm is a TP-Link switches & adapter with a harmonized system (hs) code of 85369010 and a compliance certificates of RoHS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Harmonized System (HS) code is 85369010. Compliance certificates is RoHS. Interface type is mini-GBIC/SFP. Fiber optic connector is LC (UPC). Quantity per pack is 8 pc(s). Storage relative humidity (H-H) is 5 - 90%. Operating relative humidity (H-H) is 10 - 90%. Storage temperature (T-T) is -40 - 80 °C. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 2 year. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | RoHS |
|---|---|
| Interface type | mini-GBIC/SFP |
| Harmonized System (HS) code | 85369010 |
|---|
| Networking standards | IEEE 802.3z |
|---|
| Quantity per pack | 8 pc(s) |
|---|
| Maximum data transfer rate | 1250 Mbit/s |
|---|
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum transfer distance | 10000 m |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Wavelength | 1310 nm |
| Fiber optic connector | LC (UPC) |
|---|
Warranty
2 year
