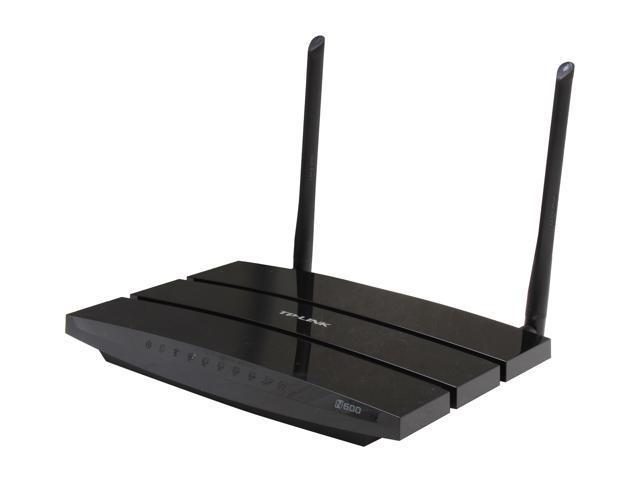

TP-LINK TL-WDR3600 N600 MBPS DUAL BAND WIRELESS N GIGABIT ROUTER
TP-LinkModel TL-WDR3600SKU TL-WDR3600
In stock
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compatible operating systems
- Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux
- USB ports quantity
- 2
- Power requirements
- 12VDC / 1.5A
- Bandwidth
- 2.4 GHz
Overview
TP-LINK TL-WDR3600 N600 MBPS DUAL BAND WIRELESS N GIGABIT ROUTER
Specifications
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux |
|---|---|
| USB ports quantity | 2 |
| Power requirements | 12VDC / 1.5A |
| Bandwidth | 2.4 GHz |
| Throughput | 800Mbps |
| xDSL connection | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 4 |
| Certification | CE, FCC, IC, RoHS |
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| DMZ support | Yes |
|---|
| Reset button | Yes |
|---|
| 3G | No |
|---|---|
| 4G | No |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 300 Mbit/s |
| Ethernet WAN | Yes |
|---|
| Manual | Yes |
|---|
| Width | 243 mm |
|---|---|
| Depth | 160.6 mm |
| Height | 32.5 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | Black |
|---|---|
| Antenna connector type | RP-SMA |
| LED indicators | Yes |
|---|
| Ethernet LAN interface type | Gigabit Ethernet |
|---|---|
| Mobile network connection | No |
| Frequency range | 2.4 - 5 GHz |
| WLAN data transfer rates supported | 300 Mbit/s |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| VPN support | PPTP, L2TP, IPSec |
| Receiver sensitivity | 270M_2.4G: -70dBm, 195M_2.4G: -71dBm, 130M_2.4G: -74dBm, 54M_2.4G: -79dBm, 6M_2.4G: -94dBm, 270M_5G: -67dBm, 195M_5G: -70dBm, 130M_5G: -73dBm, 54M_5G: -79dBm, 6M_5G: -92dBm |
| DC-in jack | Yes |
|---|
| Antenna design | External |
|---|---|
| Antennas quantity | 2 |
Warranty
3 year limited warranty
