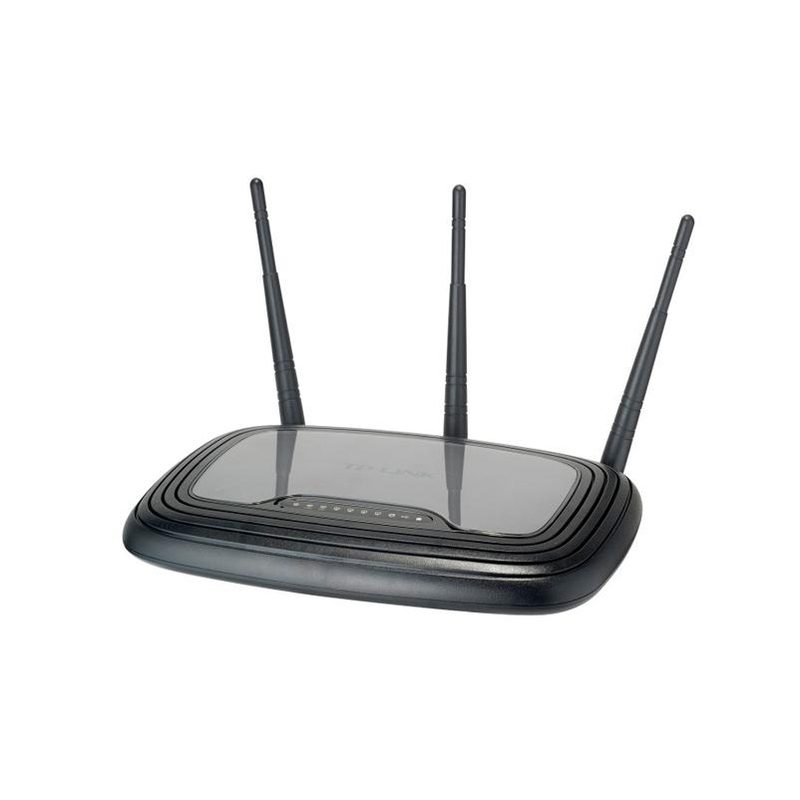

TP-LINK TL-WR2543ND 450MBPS DUAL-BAND WIRELESS N GIGABIT ROUTER [
TP-LinkModel TL-WR2543NDSKU TL-WR2543ND
In stock
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compatible operating systems
- Windows 98SE Windows NT Windows 2000 Windows XP Windows Vista Windows 7 Mac OS NetWare UNIX Linux
- Bandwidth
- 2.4 GHz
- xDSL connection
- No
- Networking features
- Gigabit Ethernet
Overview
TP-LINK TL-WR2543ND 450 MBPS DUAL-BAND WIRELESS N GIGABIT ROUTER [
Specifications
| Compatible operating systems | Windows 98SE Windows NT Windows 2000 Windows XP Windows Vista Windows 7 Mac OS NetWare UNIX Linux |
|---|---|
| Bandwidth | 2.4 GHz |
| xDSL connection | No |
| Networking features | Gigabit Ethernet |
| Frequency range | 2.4 - 2.4835GHz, 5.180 - 5.825GHz |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, 802.11a/b/g/n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 4 |
| Certification | CE, FCC, RoHS |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 32 - 104 °F |
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Stateful Packet Inspection (SPI) | Yes |
|---|---|
| Filtering | Yes |
| MAC address filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| Quality of Service (QoS) support | Yes |
|---|---|
| Reset button | Yes |
| Dimensions (WxDxH) | 234 x 155 x 36 mm |
|---|
| WLAN data transfer rate (max) | 450 Mbit/s |
|---|
| Ethernet WAN | Yes |
|---|
| Manual | Yes |
|---|---|
| Quick start guide | Yes |
| Product colour | Black, Silver |
|---|---|
| Antenna connector type | RP-SMA |
| LED indicators | LAN, Power, WAN, WLAN, Yes |
|---|
| Ethernet LAN interface type | Gigabit Ethernet |
|---|---|
| WLAN data transfer rates supported | 11,54,150,300,450 Mbit/s |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Security algorithms | 128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
| VPN support | PPTP, L2TP, IPsec |
| Receiver sensitivity | 270M: -68dBm@10% 130M: -68dBm@10% 108M: -68dBm@10% 54M: -68dBm@10% 11M: -85dBm@8% 6M: -88dBm@10% 1M: -90dBm@8% |
| Supported network protocols | IP, Static IP, PPPoE, PPTP, L2TP, DynDns, Comexe, NO-IP |
| Input current | 1.5 A |
|---|---|
| Input voltage | 12 V |
| DC-in jack | Yes |
|---|
| Antennas quantity | 3 |
|---|
