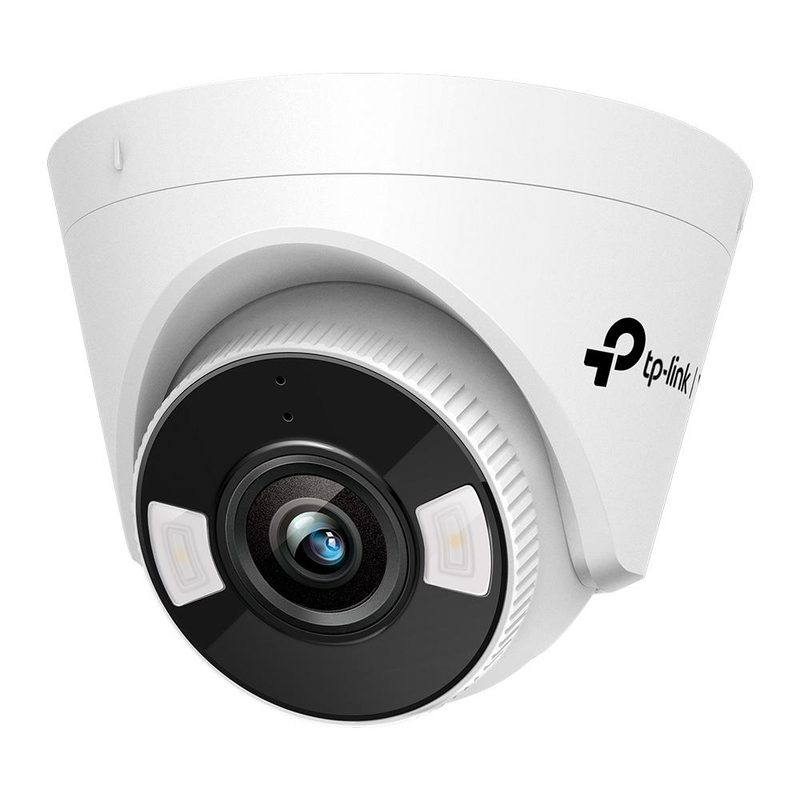

TP-Link VIGI 5MP Full-Color Turret Network Camera
TP-LinkModel VIGI C450(2.8MM)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Ethernet LAN (RJ-45) ports
- 1
- Certification
- CE, NTRA, VCCI, KC, BSMI, FCC, IC
- Diameter
- 12.3 cm
- Height
- 84 mm
Overview
TP-Link VIGI 5MP Full-Color Turret Network Camera is a TP-Link cctv camera with a client interoperability of VIGI App, VIGI Security Manager, Web UI and a certification of CE, NTRA, VCCI, KC, BSMI, FCC, IC. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Client interoperability is VIGI App, VIGI Security Manager, Web UI. Certification is CE, NTRA, VCCI, KC, BSMI, FCC, IC. Voice codecs is G.711. Supported network protocols is TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS. Ethernet LAN (RJ-45) ports is 1. Number of Privacy masking areas is 4. Maximum memory card size is 512 GB. Noise reduction is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Certification | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| Diameter | 12.3 cm |
|---|---|
| Height | 84 mm |
| Weight | 240 g |
| Voice codecs | G.711 |
|---|
| Connectivity technology | Wired |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| DC-in jack | Yes |
| Maximum memory card size | 512 GB |
| Package weight | 400 g |
|---|---|
| Package type | Box |
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Built-in speaker(s) | Yes |
|---|
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620 |
|---|---|
| Supported video modes | 720p, 1080p, 2560p, 2880p |
| Power consumption (max) | 9 W |
|---|---|
| Power source type | DC |
| Power consumption (Power over Ethernet (PoE)) | 10.5 W |
| DC output voltage | 12 |
| Web browser | Yes |
|---|---|
| Cloud-managed | Yes |
| Reset button | Yes |
| Maximum resolution | 2880 x 1620 pixels |
|---|
| IP address filtering | Yes |
|---|---|
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| Digest authentication | Yes |
| Type | IP security camera |
|---|---|
| Placement supported | Indoor |
| Built-in HDD | No |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Ethernet interface type | Fast Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Live view | Yes |
| Number of simultaneous live view channels | 6 channels |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Client interoperability | VIGI App, VIGI Security Manager, Web UI |
| Sample rate | 8 kHz |
|---|---|
| Noise reduction | Yes |
| Audio system | 2-way |
|---|---|
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Bit rate range | 0 - 64 Kbit/s |
| Frame rate | 30 fps |
|---|---|
| Video streaming | Yes |
| Noise reduction technology | 3D noise reduction |
| Bit rate control | Variable Bit Rate (VBR) |
| Bit rate | 64 Kbps - 6 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Night vision | Yes |
|---|---|
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
| Number of lenses | 1 |
|---|---|
| Detect distance | 64 m |
| Observe distance | 27 m |
| Recognize distance | 13 m |
| Maximum aperture number | 1.6 |
| Identify distance | 6 m |
| Fixed focal length | 2.8 mm |
| Number of sensors | 1 |
|---|---|
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
|---|
| Minimum illumination | 0.005 lx |
|---|---|
| Total megapixels | 5 MP |
| Video recording | Yes |
| Lens viewing angle, horizontal | 109° |
| Lens viewing angle, vertical | 57° |
| Lens viewing angle, diagonal | 128° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Card reader integrated | Yes |
|---|---|
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Number of cameras | 1 |
| Sensor type | CMOS |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Built-in light | Yes |
| Dynamic range | 120 dB |
| Pan range | 0 - 360° |
|---|---|
| Tilt angle range | 0 - 85° |
| Mounting type | Ceiling |
|---|
| Product colour | Black, White |
|---|---|
| Housing material | Plastic |
| Form factor | Turret |
Warranty
3 year limited warranty
