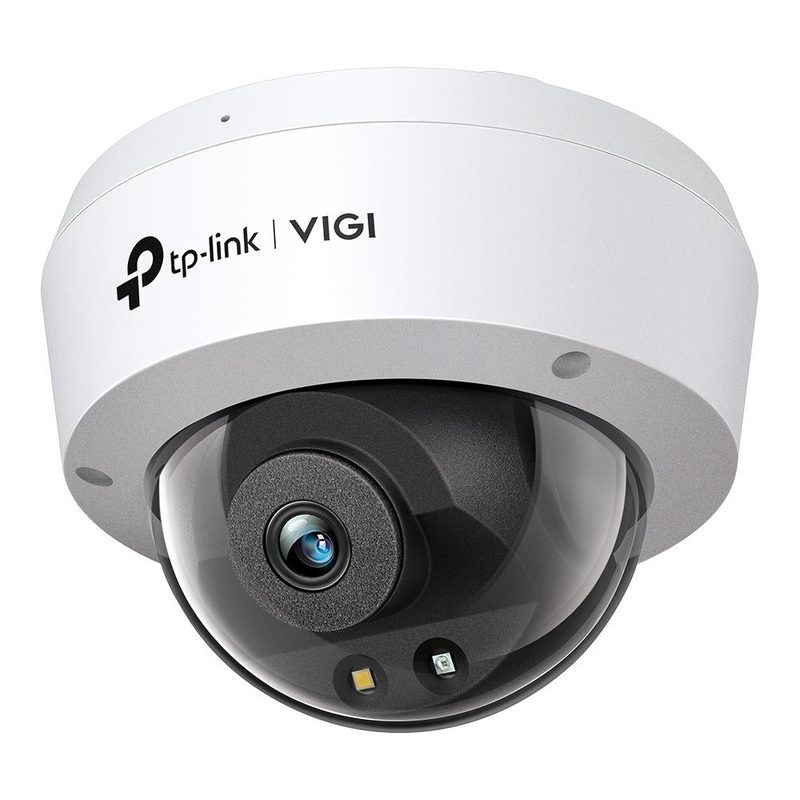

TP-Link VIGI C240(2.8MM)(UN) security camera Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall
TP-LinkModel VIGI C240(2.8MM)(UN)
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Width
- 115 mm
- Depth
- 115 mm
- Height
- 86 mm
- Lens diameter
- 2.8 mm
Overview
TP-Link VIGI C240(2.8MM)(UN) security camera Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall is a TP-Link cctv camera with a certification of CE, BSMI, VCCI, ONVIF and a supported network protocols of TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, BSMI, VCCI, ONVIF. Supported network protocols is TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS. Ethernet LAN (RJ-45) ports is 1. Management software is VIGI App, VIGI Security Manager, VIGI NVR. Maximum memory card size is 256 GB. Lens diameter is 2.8 mm. Reset button is Yes. International Protection (IP) code is IP67. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Width | 115 mm |
|---|---|
| Depth | 115 mm |
| Height | 86 mm |
| Lens diameter | 2.8 mm |
| Mounting kit | Yes |
|---|
| Compliance certificates | CE |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | CE, BSMI, VCCI, ONVIF |
| Type | IP security camera |
|---|---|
| Angle of rotation | 360° |
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Maximum memory card size | 256 GB |
| Package width | 153 mm |
|---|---|
| Package depth | 193 mm |
| Package height | 120 mm |
| Package weight | 460 g |
| Operating temperature (T-T) | -30 - 60 °C |
|---|
| Power consumption (max) | 5.4 W |
|---|---|
| Power source type | DC, PoE |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
|---|
| Web-based management | Yes |
|---|---|
| Reset button | Yes |
| Management software | VIGI App, VIGI Security Manager, VIGI NVR |
| Maximum resolution | 2560 x 1440 pixels |
|---|
| IP address filtering | Yes |
|---|---|
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection |
| Digest authentication | Yes |
| Mirror | Yes |
| Built-in HDD | No |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Ethernet interface type | Fast Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Number of simultaneous live view channels | 3 channels |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Built-in microphone | Yes |
|---|
| Video compression formats | H.264, H.264+, H.265, H.265+ |
|---|---|
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction technology | 3D noise reduction |
| Bit rate | 64 Kbps - 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Privacy masking | Yes |
| Night vision | Yes |
|---|---|
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
| Infra-red wavelength | 850 nm |
| Number of lenses | 1 |
|---|
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
|---|
| Camera pan control | Yes |
|---|---|
| Camera tilt control | Yes |
| Minimum illumination | 0.005 lx |
| Total megapixels | 4 MP |
| Lens viewing angle, horizontal | 95.7° |
| Lens viewing angle, vertical | 51.7° |
| Lens viewing angle, diagonal | 113° |
| Product colour | Black, White |
|---|---|
| Housing material | Plastic |
| IK code | IK10 |
| Form factor | Dome |
| International Protection (IP) code | IP67 |
| Card reader integrated | Yes |
|---|---|
| Number of cameras | 1 |
| Sensor type | CMOS |
| Day/night mode | Yes |
| Pan range | 0 - 360° |
|---|---|
| Tilt angle range | 0 - 85° |
| Mounting type | Ceiling/wall |
|---|
Warranty
3 year limited warranty
