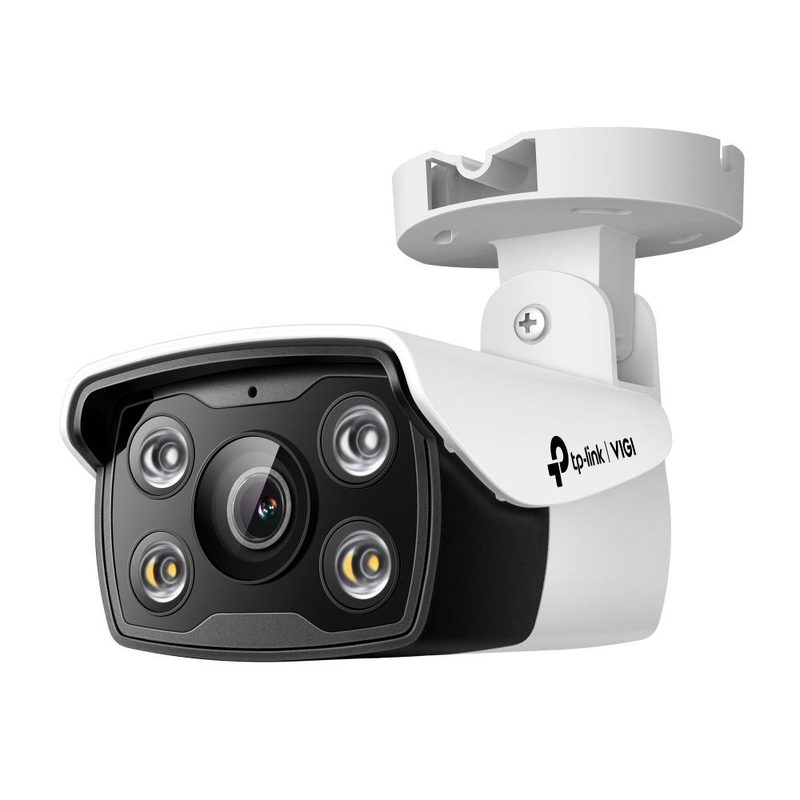

TP-Link VIGI C340(4MM)(UN) security camera Bullet IP security camera Outdoor 2560 x 1440 pixels Ceiling/Wall/Pole
TP-LinkModel VIGI C340(4MM)(UN)
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Manual
- Yes
- Mounting kit
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Connectivity technology
- Wired
Overview
TP-Link VIGI C340(4MM)(UN) security camera Bullet IP security camera Outdoor 2560 x 1440 pixels Ceiling/Wall/Pole is a TP-Link cctv camera with a sustainability compliance of Yes and a supported network protocols of TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Sustainability compliance is Yes. Supported network protocols is TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS. Ethernet LAN (RJ-45) ports is 1. Number of Privacy masking areas is 4. Maximum memory card size is 256 GB. Noise reduction is Yes. Camera shutter speed is 1/3 - 1/10000 s. Reset button is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Manual | Yes |
|---|---|
| Mounting kit | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Connectivity technology | Wired |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| DC-in jack | Yes |
| Maximum memory card size | 256 GB |
| Sustainability compliance | Yes |
|---|
| Width | 78 mm |
|---|---|
| Depth | 70 mm |
| Height | 174 mm |
| Weight | 195 g |
| Package width | 128 mm |
|---|---|
| Package depth | 218 mm |
| Package height | 103 mm |
| Package weight | 420 g |
| Package type | Box |
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Built-in speaker(s) | Yes |
|---|
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
|---|
| Web browser | Yes |
|---|---|
| Reset button | Yes |
| Maximum resolution | 2560 x 1440 pixels |
|---|
| Power consumption (typical) | 3.4 W |
|---|---|
| Power consumption (max) | 7 W |
| Power source type | DC, PoE |
| DC output voltage | 12 |
| IP address filtering | Yes |
|---|---|
| Password protection | Yes |
| Video motion detection | Yes |
| HTTPS encryption | Yes |
| Network access storage (NAS) | Yes |
| Audio output channels | 1.0 channels |
|---|
| Type | IP security camera |
|---|---|
| Placement supported | Outdoor |
| Built-in HDD | No |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Ethernet interface type | Fast Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Live view | Yes |
| Number of simultaneous live view channels | 3 channels |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Sample rate | 8 kHz |
|---|---|
| Noise reduction | Yes |
| Audio input channels | 1.0 channels |
|---|---|
| Audio system | 2-way |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Bit rate range | 64 - 4000 Kbit/s |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
|---|---|
| Frame rate | 30 fps |
| Video streaming | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Privacy masking | Yes |
| Night vision | Yes |
|---|---|
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
| Number of lenses | 1 |
|---|---|
| Detect distance | 80 m |
| Observe distance | 33 m |
| Recognize distance | 16 m |
| Maximum aperture number | 1.6 |
| Identify distance | 8 m |
| Fixed focal length | 4 mm |
| Number of sensors | 1 |
|---|---|
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
|---|
| Minimum illumination | 0.005 lx |
|---|---|
| Total megapixels | 4 MP |
| Lens viewing angle, horizontal | 79° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, diagonal | 93° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Card reader integrated | Yes |
|---|---|
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Number of cameras | 1 |
| Sensor type | CMOS |
| Day/night mode | Yes |
| Pan range | -90 - 90° |
|---|---|
| Tilt angle range | -90 - 90° |
| LED indicators | Yes |
| Mounting type | Ceiling/Wall/Pole |
|---|
| Product colour | Black, White |
|---|---|
| Housing material | Plastic |
| Form factor | Bullet |
| International Protection (IP) code | IP66 |
Warranty
3 year limited warranty
