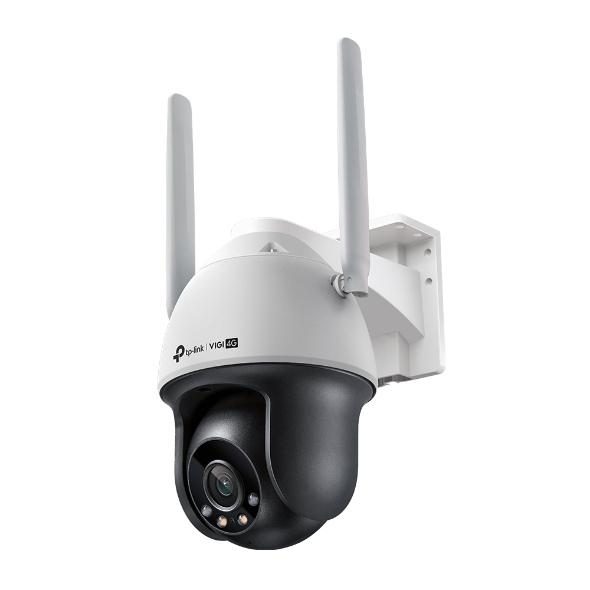

TP-Link VIGI C540-4G Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall
TP-LinkModel VIGI C540-4G(4MM)
Image 1 of 2
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Width
- 120 mm
- Depth
- 182 mm
- Height
- 201 mm
- Weight
- 690 g
Overview
TP-Link VIGI C540-4G Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall is a TP-Link cctv camera with a certification of RCM, BSMI, VCCI, NTRA, KC and a supported network protocols of TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is RCM, BSMI, VCCI, NTRA, KC. Supported network protocols is TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS. Ethernet LAN (RJ-45) ports is 1. Number of Privacy masking areas is 4. Maximum memory card size is 256 GB. Noise reduction is Yes. Camera shutter speed is 1/3 - 1/10000 s. Lens diameter is 4 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Width | 120 mm |
|---|---|
| Depth | 182 mm |
| Height | 201 mm |
| Weight | 690 g |
| Lens diameter | 4 mm |
| Mounting kit | Yes |
|---|
| Compliance certificates | CE, RoHS |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | RCM, BSMI, VCCI, NTRA, KC |
| Type | IP security camera |
|---|---|
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
|---|---|
| Maximum memory card size | 256 GB |
| 3G standards | WCDMA |
|---|---|
| 4G standard | LTE-TDD & LTE-FDD |
| SIM card slot | Yes |
|---|
| Package width | 163 mm |
|---|---|
| Package depth | 213 mm |
| Package height | 243 mm |
| Package weight | 1.16 kg |
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Built-in speaker(s) | Yes |
|---|
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
|---|
| Behavior analysis | Intrusion detection, Line crossing detection |
|---|---|
| Reset button | Yes |
| Maximum resolution | 2560 x 1440 pixels |
|---|
| Power source type | DC |
|---|---|
| DC output voltage | 12 |
| IP address filtering | Yes |
|---|---|
| Password protection | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Digest authentication | Yes |
| Mirror | Yes |
| Built-in HDD | No |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Ethernet interface type | Fast Ethernet |
|---|---|
| Ethernet LAN | Yes |
| SIM card type | NanoSIM |
| Live view | Yes |
| Number of simultaneous live view channels | 3 channels |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Sample rate | 8 kHz |
|---|---|
| Noise reduction | Yes |
| Built-in microphone | Yes |
|---|---|
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Bit rate range | 64 - 64 Kbit/s |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
|---|---|
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction technology | 3D noise reduction |
| Bit rate control | Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 4 Mbps |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Privacy masking | Yes |
| 3D positioning | Yes |
| Night vision | Yes |
|---|---|
| Night vision distance | 30 m |
| LED type | IR/White |
| Number of illumination LEDs | 4 |
| Number of lenses | 1 |
|---|---|
| Minimum aperture number | 1.6 |
| Zoom capability | Yes |
| Detect distance | 80 m |
| Observe distance | 33 m |
| Recognize distance | 16 m |
| Maximum aperture number | 1.6 |
| Identify distance | 8 m |
| Optical sensor size | 25.4 / 3.06 mm (1 / 3.06") |
|---|
| Camera pan control | Yes |
|---|---|
| Camera tilt control | Yes |
| Total megapixels | 4 MP |
| Lens viewing angle, horizontal | 80° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, diagonal | 94° |
| Tilt speed | 44 °/sec |
| Pan speed | 44 °/sec |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Luminous flux | 0.005 lm |
|---|---|
| Card reader integrated | Yes |
| Number of cameras | 1 |
| Sensor type | CMOS |
| Auto patrol mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Pan range | 0 - 348° |
|---|---|
| Tilt angle range | 0 - 120° |
| Mounting type | Ceiling/wall |
|---|
| Product colour | Black, White |
|---|---|
| Housing material | Plastic |
| Form factor | Turret |
| International Protection (IP) code | IP66 |
Warranty
3 year limited warranty
