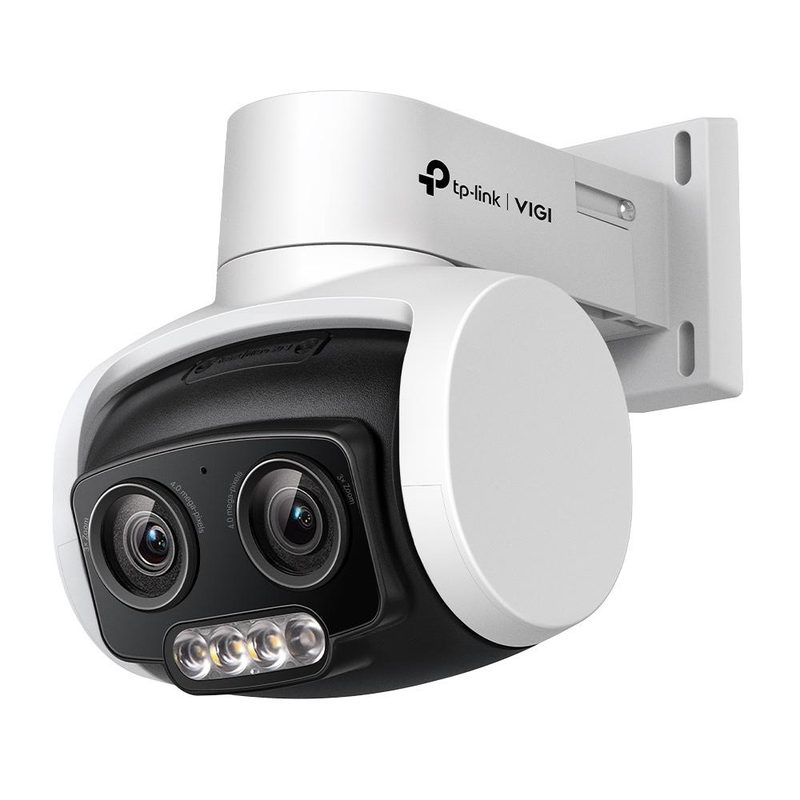

TP-Link VIGI C540V(UN) security camera IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling
TP-LinkModel VIGI C540V(UN)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Ethernet LAN (RJ-45) ports
- 1
- Certification
- CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
- Connectivity technology
- Wired
- Wi-Fi
- No
Overview
TP-Link VIGI C540V(UN) security camera IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling is a TP-Link cctv camera with a certification of CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC and a ethernet lan (rj-45) ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC. Ethernet LAN (RJ-45) ports is 1. Maximum memory card size is 256 GB. International Protection (IP) code is IP66. Compatible memory cards is MicroSD (TransFlash). DC output voltage is 12. Infra-red wavelength is 850 nm. Bit rate control is Constant Bit Rate (CBR), Variable Bit Rate (VBR). Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
| Connectivity technology | Wired |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Maximum memory card size | 256 GB |
| Ethernet interface type | Fast Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Manual | Yes |
|---|
| Width | 136 mm |
|---|---|
| Depth | 139 mm |
| Height | 107 mm |
| Weight | 430 g |
| Package weight | 660 g |
|---|---|
| Package type | Box |
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
|---|---|
| Supported video modes | 720p, 1080p, 1440p |
| Maximum resolution | 2560 x 1440 pixels |
|---|
| Product colour | White, Black |
|---|---|
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| Power consumption (typical) | 2.9 W |
|---|---|
| Power consumption (max) | 14 W |
| Power source type | PoE |
| DC output voltage | 12 |
| Type | IP security camera |
|---|---|
| Placement supported | Indoor & outdoor |
| Built-in HDD | No |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Frame rate | 30 fps |
|---|---|
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 4 Mbps |
| Night vision | Yes |
|---|---|
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
| Infra-red wavelength | 850 nm |
| Number of lenses | 1 |
|---|---|
| Zoom capability | Yes |
| Focal length range | 4 - 12 mm |
| Maximum aperture number | 1.6 |
| Number of sensors | 1 |
|---|---|
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Digital zoom | 3x |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Total megapixels | 4 MP |
| Video recording | Yes |
| Lens viewing angle, horizontal | 84° |
| Lens viewing angle, vertical | 46° |
| Lens viewing angle, diagonal | 100° |
| Tilt speed | 40 °/sec |
| Pan speed | 55 °/sec |
| Card reader integrated | Yes |
|---|---|
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Number of cameras | 1 |
| PTZ control | Yes |
| Sensor type | CMOS |
| Pan range | 0 - 332° |
|---|---|
| Tilt angle range | 0 - 120° |
| Mounting type | Ceiling |
|---|
Warranty
3 year limited warranty
