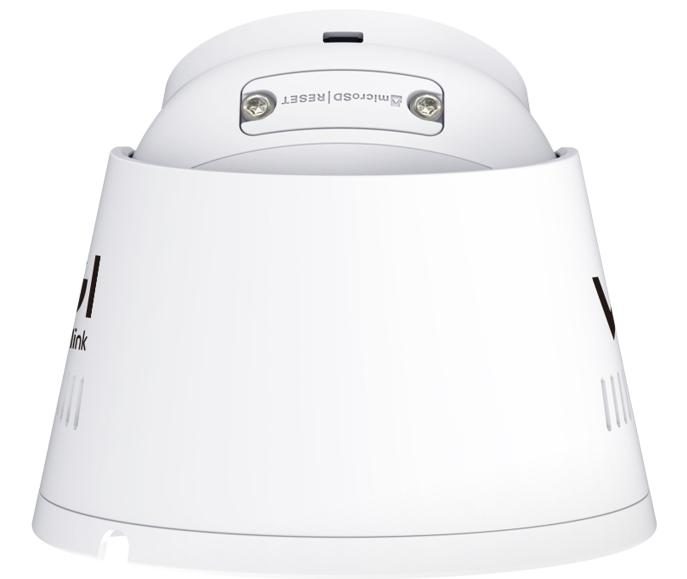

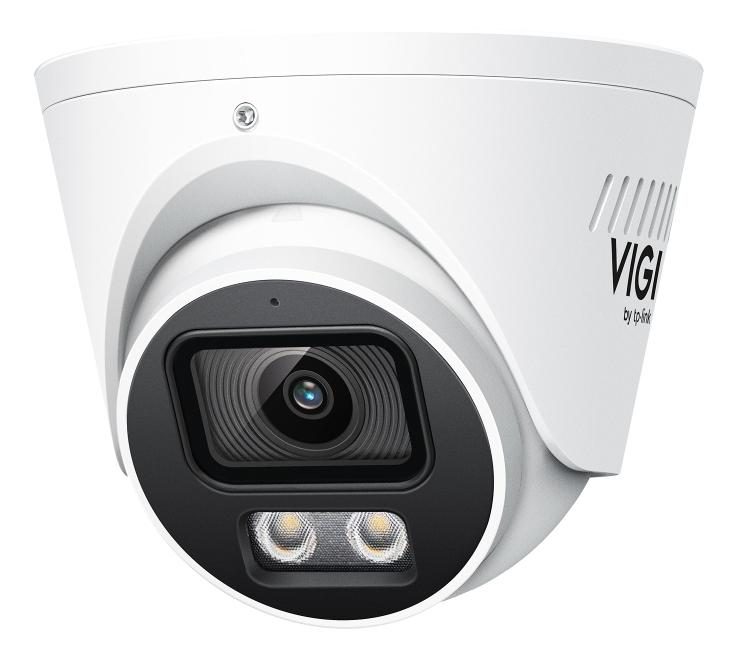

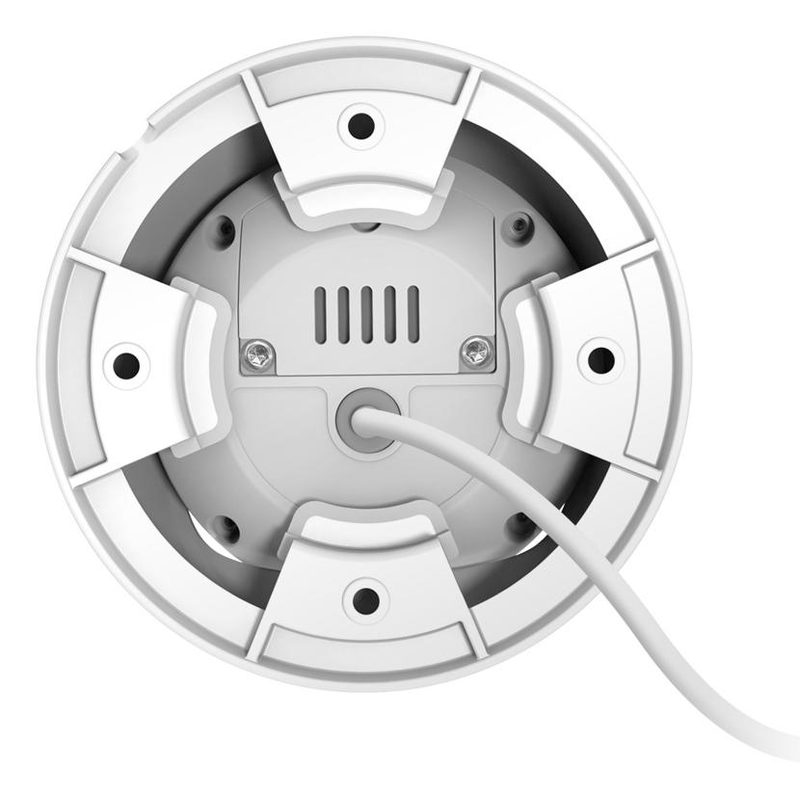

TP-Link VIGI InSight S445S(2.8mm) Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall
TP-LinkModel INSIGHT S445S(2.8MM)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Mounting kit
- Yes
- Compliance certificates
- CE
- Ethernet LAN (RJ-45) ports
- 1
- Certification
- CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF
Overview
TP-Link VIGI InSight S445S(2.8mm) Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall is a TP-Link cctv camera with a certification of CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF and a supported network protocols of TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF. Supported network protocols is TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP. Ethernet LAN (RJ-45) ports is 1. Number of Privacy masking areas is 4. Maximum memory card size is 512 GB. Noise reduction is Yes. Camera shutter speed is 1/3 - 1/10000 s. Reset button is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Mounting kit | Yes |
|---|
| Compliance certificates | CE |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF |
| Connectivity technology | Wired |
|---|---|
| Microphone in | Yes |
| Maximum memory card size | 512 GB |
| Width | 111 mm |
|---|---|
| Depth | 111 mm |
| Height | 81.4 mm |
| Weight | 550 g |
| Package type | Box |
|---|
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Built-in speaker(s) | Yes |
|---|
| Power consumption (typical) | 15.6 W |
|---|---|
| Power consumption (max) | 17.9 W |
| AC input voltage | 12 V |
| Power source type | DC, PoE |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
|---|
| Type | IP security camera |
|---|---|
| Angle of rotation | 360° |
| Placement supported | Outdoor |
| Web-based management | Yes |
|---|---|
| Web browser | Yes |
| Cloud-managed | Yes |
| Cloud services supported | FTP |
| Behavior analysis | Audio exception detection, Object removal detection |
| Reset button | Yes |
| Maximum resolution | 2688 x 1520 pixels |
|---|
| Camera shutter type | Electronic |
|---|
| IP address filtering | Yes |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Password protection | Yes |
| Password protection type | User |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Abnormal sound detection, Intrusion, Line crossing detection, People counting, Region entrance detection, Region exiting detection, Scene change, Vehicle detection |
| Digest authentication | Yes |
| Alert notification type | E-mail, Push notification |
| Motion sensor | Yes |
| Mirror | Yes |
| Human and vehicle targets classification | Yes |
| Audio output channels | 2.0 channels |
|---|
| Built-in HDD | No |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Ethernet LAN | Yes |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Live view | Yes |
| Number of simultaneous live view channels | 3 channels |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| Noise reduction | Yes |
|---|
| Audio input channels | 2.0 channels |
|---|---|
| Audio system | 2-way |
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Bit rate range | 256 - 6000 Kbit/s |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
|---|---|
| Frame rate | 30 fps |
| Thermal frame rate (NTSC) | 50 Hz |
| Thermal frame rate (PAL) | 60 Hz |
| Video streaming | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate | 64 Kbit/s |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Image quality adjustment | Brightness, Contrast, DNR, Saturation, Sharpness |
| Night vision | Yes |
|---|---|
| Infra-red wavelength | 850 nm |
| Number of lenses | 1 |
|---|---|
| Detect distance | 59 m |
| Observe distance | 25 m |
| Recognize distance | 12 m |
| Fixed focus | Yes |
| Maximum aperture number | 1 |
| Identify distance | 6 m |
| Fixed focal length | 2.8 mm |
| Optical sensor size | 25.4 / 79 mm (1 / 79") |
|---|---|
| Progressive scan | Yes |
| Sensor type (panoramic camera) | CMOS |
|---|---|
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 52 dB |
| White balance | Area white balance |
|---|---|
| Minimum illumination | 0.0005 lx |
| Total megapixels | 4 MP |
| Video recording | Yes |
| Lens viewing angle, horizontal | 112.5° |
| Lens viewing angle, vertical | 61.4° |
| Lens viewing angle, diagonal | 137° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Product colour | White |
|---|---|
| Housing material | Metal |
| Weatherproof | Yes |
| Form factor | Dome |
| International Protection (IP) code | IP67 |
| Card reader integrated | Yes |
|---|---|
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Number of cameras | 1 |
| Sensor type | CMOS |
| Auto pan mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Dynamic range | 120 dB |
| Pan range | 0 - 360° |
|---|---|
| Tilt angle range | 0 - 75° |
| Mounting type | Ceiling/wall |
|---|
Warranty
3 year limited warranty
