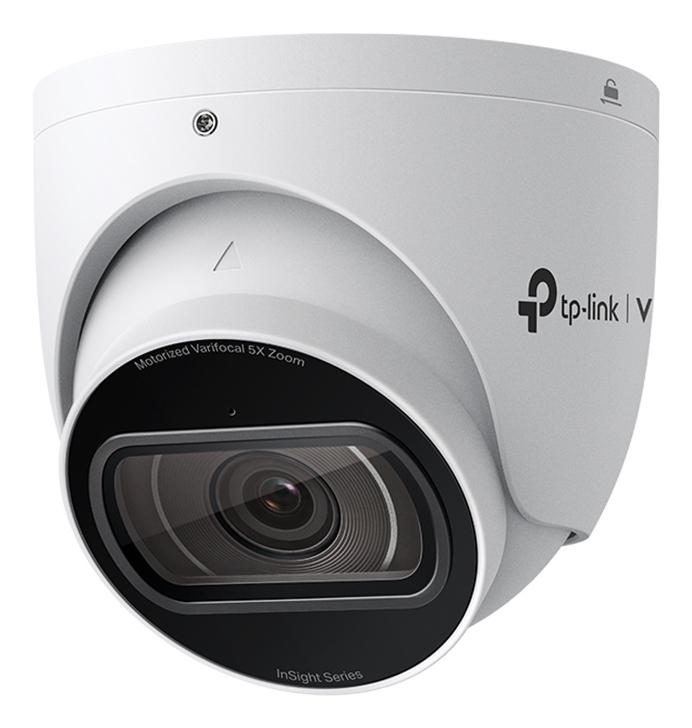

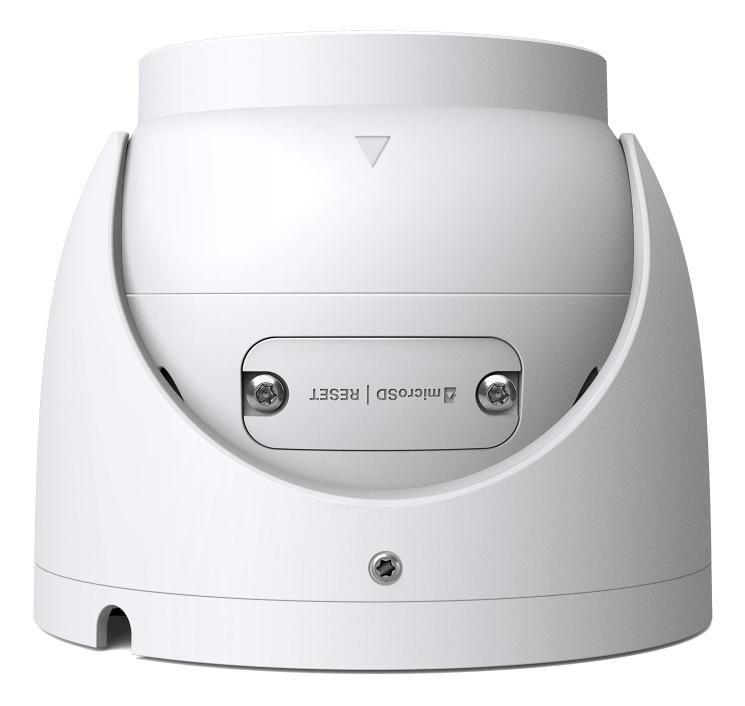

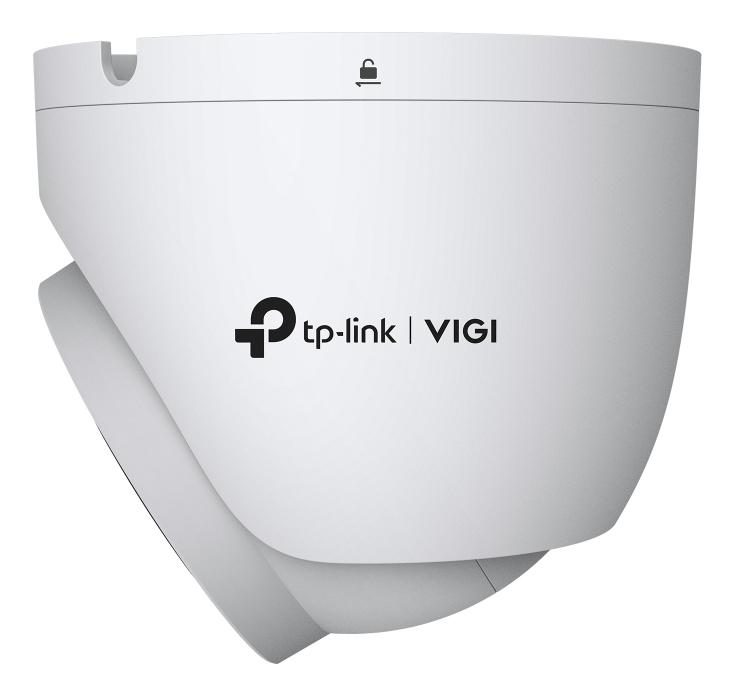

TP-Link VIGI InSight S445ZI Turret IP security camera Outdoor 2688 x 1520 pixels Ceiling
TP-LinkModel INSIGHT S445ZI
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Manual
- Yes
- Drilling template included
- Yes
- Mounting kit
- Yes
- Screws included
- Yes
Overview
TP-Link VIGI InSight S445ZI Turret IP security camera Outdoor 2688 x 1520 pixels Ceiling is a TP-Link cctv camera with a supported network protocols of TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP and a ethernet lan (rj-45) ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Supported network protocols is TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP. Ethernet LAN (RJ-45) ports is 1. Number of Privacy masking areas is 4. Maximum memory card size is 512 GB. Noise reduction is Yes. Camera shutter speed is 1/3 to 1/10000. Reset button is Yes. International Protection (IP) code is IP67. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Manual | Yes |
|---|---|
| Drilling template included | Yes |
| Mounting kit | Yes |
| Screws included | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Diameter | 11.2 cm |
|---|---|
| Height | 92.5 mm |
| Weight | 710 g |
| Connectivity technology | Wired |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| DC-in jack | Yes |
| Maximum memory card size | 512 GB |
| Package weight | 960 g |
|---|---|

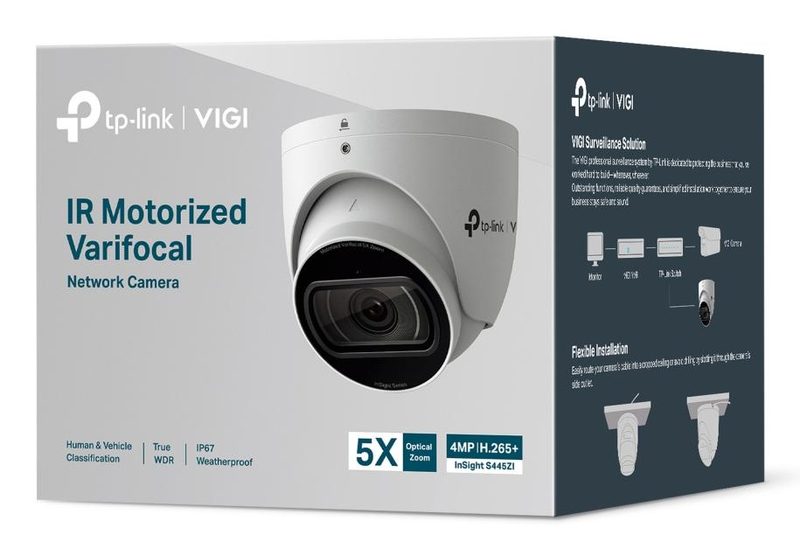

| Package type | Box |
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
|---|
| Type | IP security camera |
|---|---|
| Angle of rotation | 360° |
| Placement supported | Outdoor |
| Power consumption (max) | 10.8 W |
|---|---|
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| DC output voltage | 12 |
| Web browser | Yes |
|---|---|
| Cloud-managed | Yes |
| Reset button | Yes |
| Maximum resolution | 2688 x 1520 pixels |
|---|
| IP address filtering | Yes |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Password protection | Yes |
| Built-in siren | Yes |
| Video motion detection | Yes |
| HTTPS encryption | Yes |
| Privacy protection | Yes |
| Digest authentication | Yes |
| Alert notification type | Push notification |
| Motion sensor | Yes |
| Mirror | Yes |
| Human and vehicle targets classification | Yes |
| Audio output channels | 1.0 channels |
|---|
| Ethernet LAN | Yes |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Live view | Yes |
| Number of simultaneous live view channels | 6 channels |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Sample rate | 8 kHz |
|---|---|
| Noise reduction | Yes |
| Audio input channels | 1.0 channels |
|---|---|
| Audio system | 2-way |
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Bit rate range | 0 - 64 Kbit/s |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
|---|---|
| Video streaming | Yes |
| Noise reduction technology | 3D noise reduction |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 512 Kbps to 1024 Kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Night vision | Yes |
|---|---|
| Night vision distance | 60 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
| Infra-red wavelength | 850 nm |
| Number of lenses | 1 |
|---|---|
| Focus | Motorized |
| Zoom capability | Yes |
| Focal length range | 2.7 - 13.5 mm |
| Maximum aperture number | 1.6 |
| Detect distance (wide) | 66 m |
| Detect distance (tele) | 207 m |
| Observe distance (wide) | 28 m |
| Observe distance (tele) | 86 m |
| Recognize distance (wide) | 13 m |
| Recognize distance (tele) | 41 m |
| Identify distance (wide) | 7 m |
| Identify distance (tele) | 21 m |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
|---|---|
| Progressive scan | Yes |
| Optical zoom | 5x |
|---|---|
| Minimum illumination | 0 lx |
| Total megapixels | 4 MP |
| Video recording | Yes |
| Lens viewing angle, horizontal | 29.6–102 |
| Lens viewing angle, vertical | 16.8–53.8 |
| Lens viewing angle, diagonal | 34.1–122.8 |
| Camera shutter speed | 1/3 to 1/10000 |
| Number of Privacy masking areas | 4 |
| Product colour | White |
|---|---|
| Housing material | Metal |
| Protection features | Waterproof |
| Weatherproof | Yes |
| Form factor | Turret |
| International Protection (IP) code | IP67 |
| Audio formats supported | G.711 A-law |
|---|---|
| Card reader integrated | Yes |
| Number of cameras | 1 |
| Auto focus | Yes |
| Sensor type | CMOS |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Dynamic range | 120 dB |
| Compatible memory cards | MicroSD (TransFlash) |
|---|
| Pan range | 0 - 360° |
|---|---|
| Tilt angle range | 0 - 77° |
| Mounting type | Ceiling |
|---|
Warranty
3 year limited warranty
