ASUSModel 90SF02M3-M01090

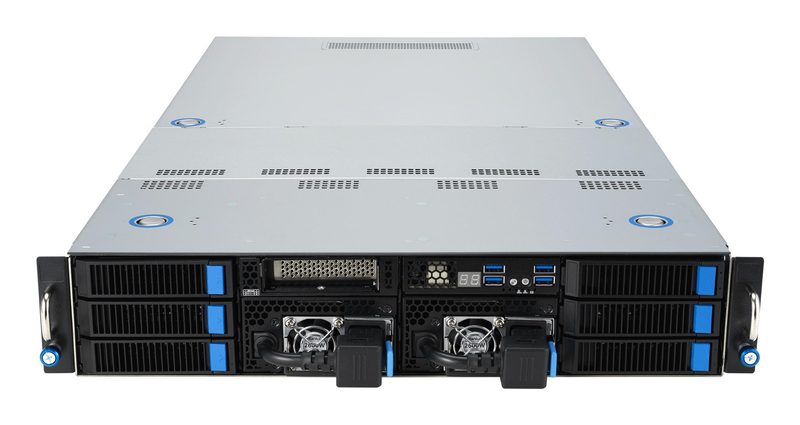

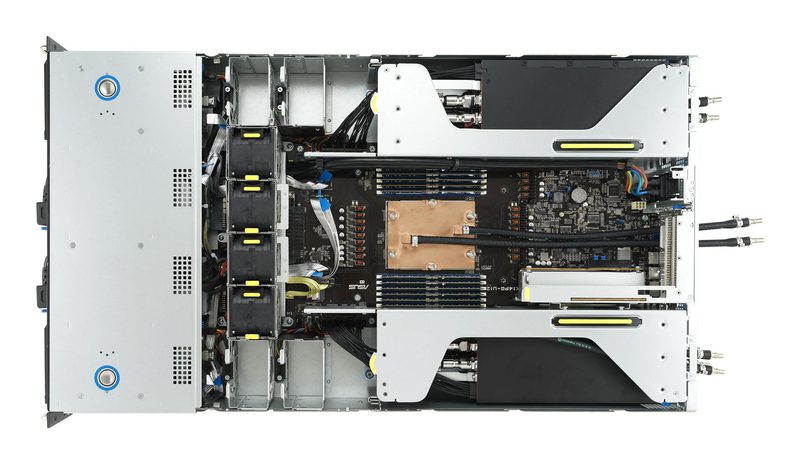

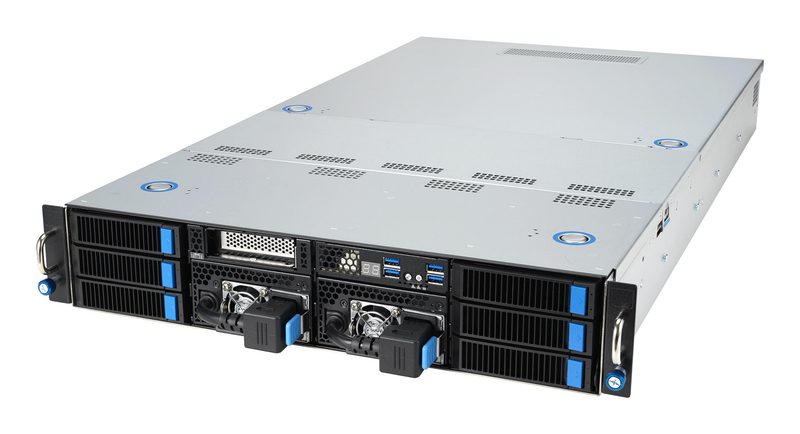

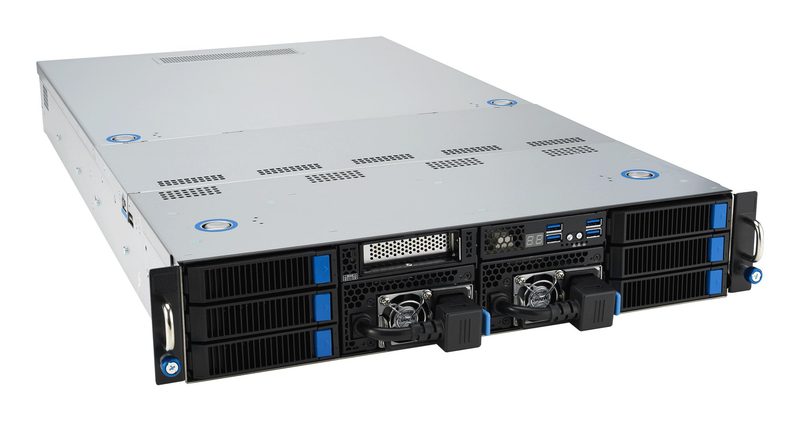

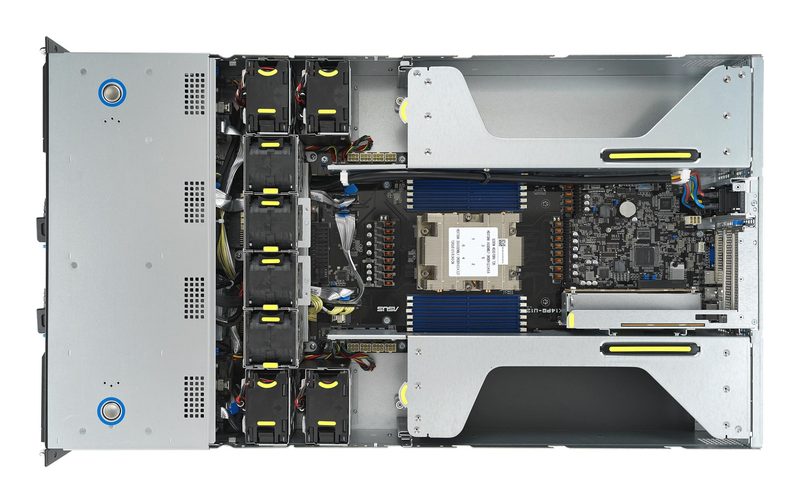

ASUS ESC4000A-E12 Socket SP5 Rack (2U) Silver
Available to order
ASUS Workstations & Server. Available from OfficeLand with nationwide delivery; request a quote for pricing.
At a glance
- Number of main power supplies
- 2
- Power supply
- 2600 W
- 80 PLUS certification
- 80 PLUS Titanium
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 2
- Supported memory types
- DDR5-SDRAM
Request a quote for pricing
Answered within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, SON certified. Quotes answered within one business day.
Specifications
| Number of main power supplies | 2 |
|---|---|
| Power supply | 2600 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Supported memory types | DDR5-SDRAM |
|---|
| Built-in processor | No |
|---|
| Integrated BMC with IPMI | Yes |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| IPMI LAN (RJ-45) port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 2.0 ports quantity | 0 |
| Sustainability certificates | TCO |
|---|---|
| Sustainability compliance | Yes |
| Supported storage drive types | HDD & SSD |
|---|---|
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 12 |
| Hot-swap HDD bays | Yes |
| Maximum internal memory | 3 TB |
|---|---|
| Number of DIMM slots | 12 |
| Supported DIMM module capacities | 256GB, 16GB, 32GB, 64GB, 128GB |
| Supported RDIMM clock speeds | 4400,4800 MHz |
| Compatible processor series | AMD EPYC 9004 |
|---|---|
| Processor model | 9004 |
| Number of processors supported | 1 |
| Maximum cache | 1152 MB |
| Processor socket | Socket SP5 |
| Width | 800 mm |
|---|---|
| Depth | 439.5 mm |
| Height | 88.9 mm |
| Weight | 24 kg |
| Package weight | 34.8 kg |
|---|
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Chassis type | Rack (2U) |
|---|---|
| Product colour | Silver |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 8 |
|---|---|
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 14 |
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I350 |
