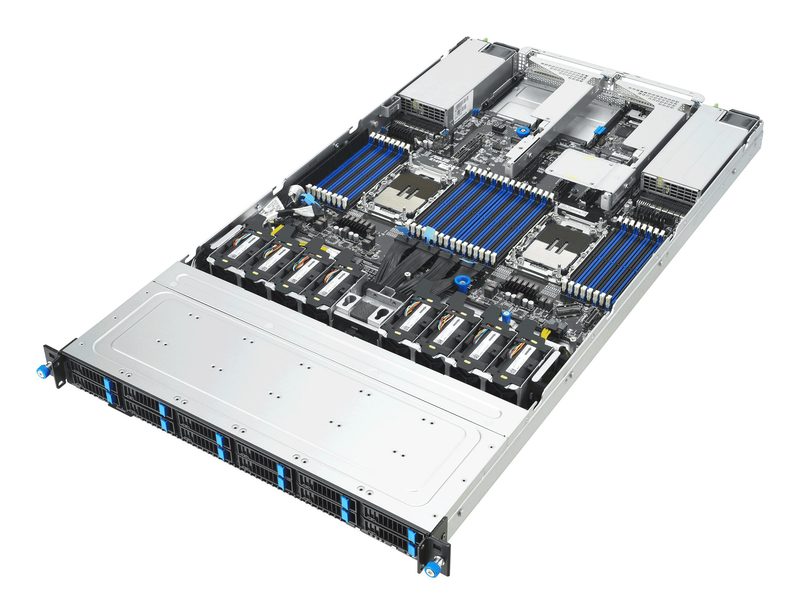

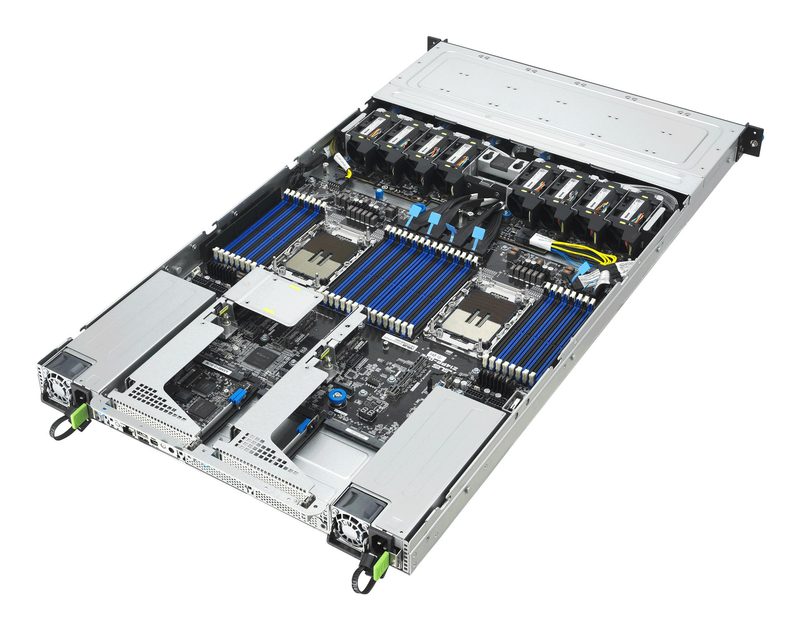

ASUS RS700-E12-RS12U Rack (1U) Black, Steel
ASUSModel 90SF03S1-M00160
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Redundant power supply (RPS) support
- Yes
- Number of redundant power supplies supported
- 2
Overview
ASUS RS700-E12-RS12U Rack (1U) Black, Steel is a ASUS workstations & server with a certification of BSMI, CE, CB, RCM, FCC(Class A), ISED and a number of m.2 (m) slots of 2. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is BSMI, CE, CB, RCM, FCC(Class A), ISED. Number of M.2 (M) slots is 2. 80 PLUS certification is 80 PLUS Platinum. Power supply is 2000 W. On-board graphics card memory is 64 MB. Supported memory types is DDR5-SDRAM. Weight is 13.8 kg. PCI Express slots version is 5.0. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| Power supply | 2000 W |
| 80 PLUS certification | 80 PLUS Platinum |
| Certification | BSMI, CE, CB, RCM, FCC(Class A), ISED |
|---|
| Supported memory types | DDR5-SDRAM |
|---|
| Built-in processor | No |
|---|
| Integrated BMC with IPMI | Yes |
|---|
| Supported storage drive types | HDD & SSD |
|---|---|
| Storage drive sizes supported | 2.5,M.2 |
| Number of storage drives supported | 14 |
| Hot-swap HDD bays | Yes |
| Maximum internal memory | 4 TB |
|---|---|
| Number of DIMM slots | 32 |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB |
| Supported RDIMM clock speeds | 6400 MHz |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Xeon® |
| Compatible processor series | Intel® Xeon® |
| Number of processors supported | 2 |
| PCI Express slots version | 5.0 |
| PCI Express x16 (Gen 5.x) slots | 4 |
|---|---|
| Number of M.2 (M) slots | 2 |
| Width | 821.7 mm |
|---|---|
| Depth | 483 mm |
| Height | 43.2 mm |
| Weight | 13.8 kg |
| Package weight | 16.7 kg |
|---|
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| On-board graphics card model | Aspeed AST2600 |
|---|---|
| On-board graphics card memory | 64 MB |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
|---|
| LED indicators | Yes |
|---|
| Mini DisplayPorts quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 0 |
| Cooling type | Active |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| Number of 2.5" bays | 12 |
| Number of fans | 8 fan(s) |
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
