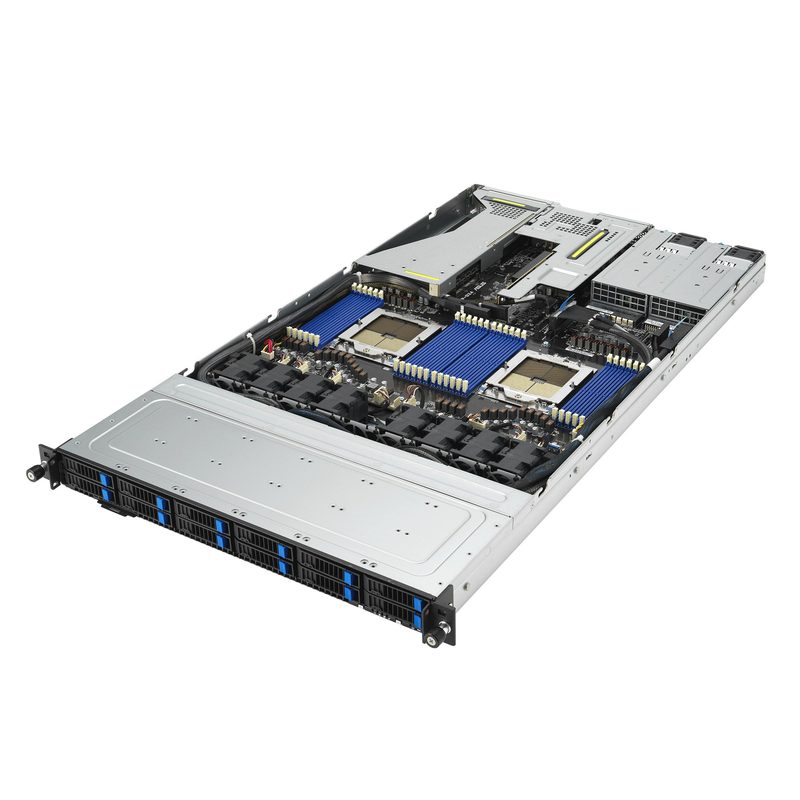

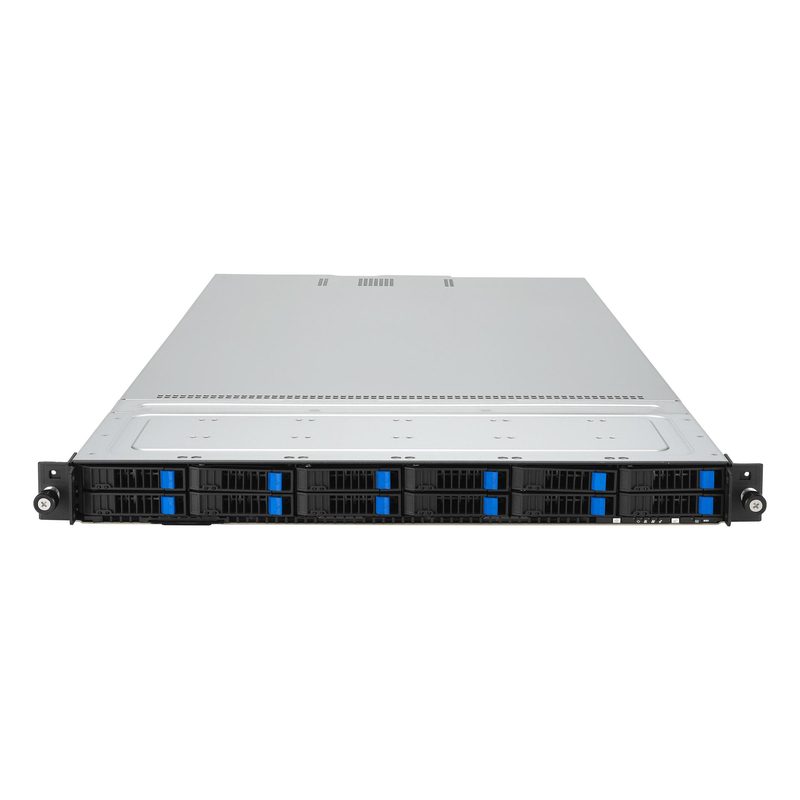

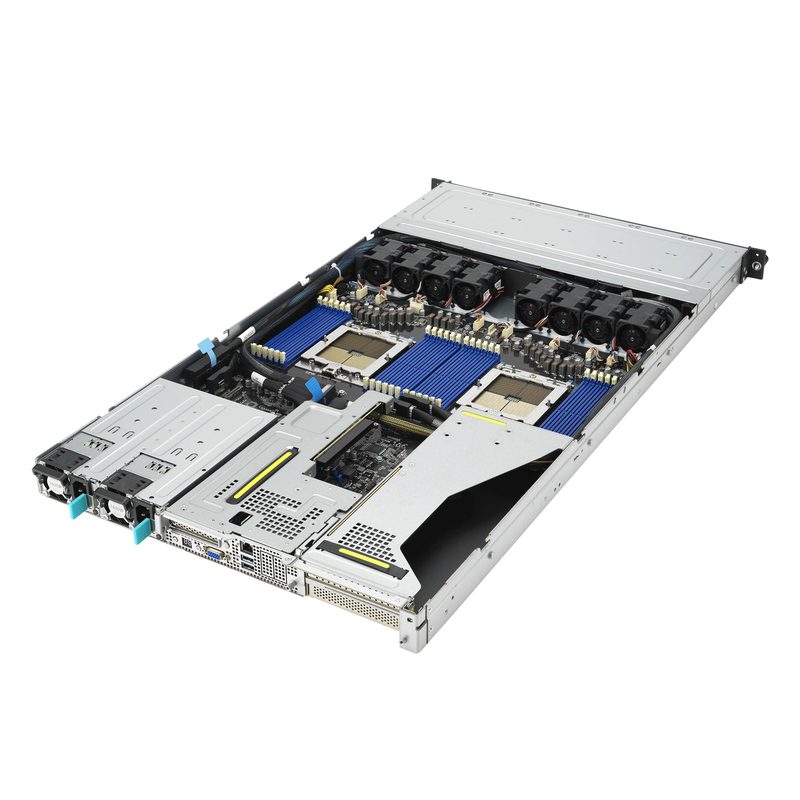

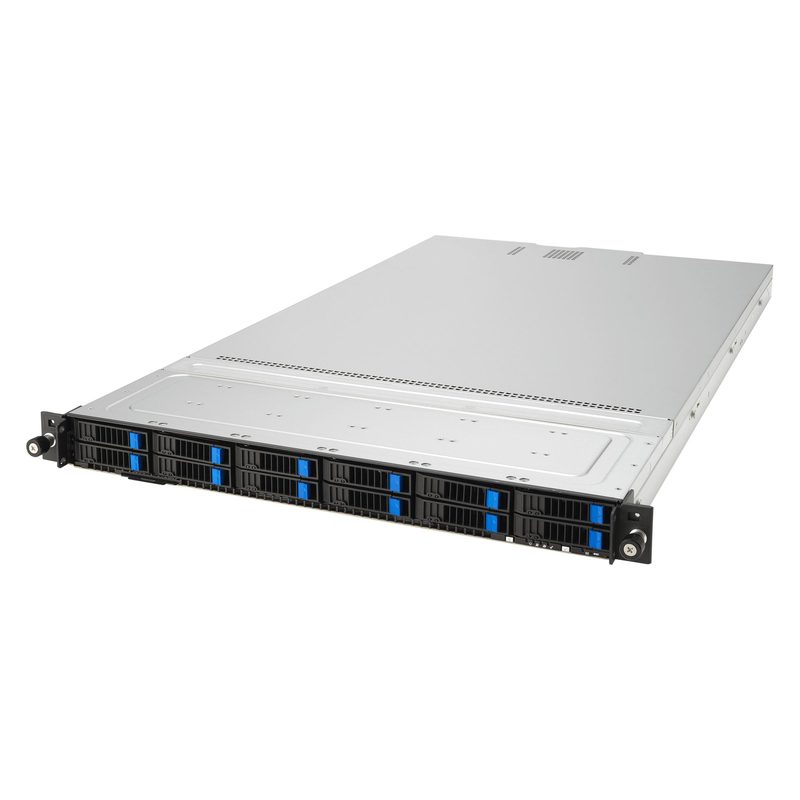

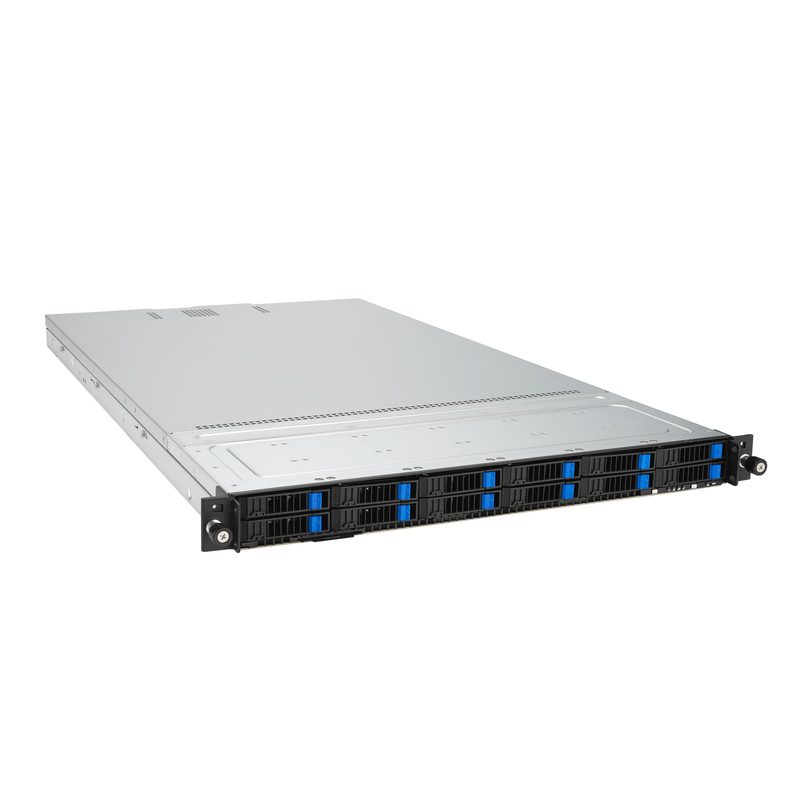

ASUS RS700A-E12-RS12U Socket SP5 Rack (1U) Black, Steel
ASUSModel 90SF02D1-M006Z0
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Redundant power supply (RPS) support
- Yes
- Number of redundant power supplies supported
- 2
Overview
ASUS RS700A-E12-RS12U Socket SP5 Rack (1U) Black, Steel is a ASUS workstations & server with a certification of BSMI, CE, CB, C-Tick, FCC(Class A) and a number of m.2 (m) slots of 2. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is BSMI, CE, CB, C-Tick, FCC(Class A). Number of M.2 (M) slots is 2. Ethernet LAN (RJ-45) ports is 3. Ethernet LAN data rates is 1000,10000 Mbit/s. 80 PLUS certification is 80 PLUS Platinum. Power supply is 2600 W. On-board graphics card memory is 64 MB. Supported memory types is DDR5-SDRAM. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| Power supply | 2600 W |
| 80 PLUS certification | 80 PLUS Platinum |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| Certification | BSMI, CE, CB, C-Tick, FCC(Class A) |
| Supported memory types | DDR5-SDRAM |
|---|
| Built-in processor | No |
|---|
| Integrated BMC with IPMI | Yes |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| IPMI LAN (RJ-45) port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 0 |
| Supported storage drive types | HDD & SSD |
|---|---|
| Storage drive sizes supported | 2.5,M.2 |
| Number of storage drives supported | 14 |
| Hot-swap HDD bays | Yes |
| Number of DIMM slots | 24 |
|---|---|
| Supported DIMM module capacities | 32GB, 64GB, 128GB |
| Maximum RDIMM memory | 3 TB |
| Processor manufacturer | AMD |
|---|---|
| Processor family | AMD |
| Compatible processor series | AMD EPYC 9004 |
| AMD Opteron series | 9000 |
| Processor socket | Socket SP5 |
| PCI Express slots version | 4.0, 5.0 |
| PCI Express x4 slots | 1 |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 2 |
| Width | 449 mm |
|---|---|
| Depth | 842.5 mm |
| Height | 43.9 mm |
| Weight | 14.9 kg |
| Package weight | 19.9 kg |
|---|
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| On-board graphics card model | Aspeed AST2600 |
|---|---|
| On-board graphics card memory | 64 MB |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
|---|
| LED indicators | Yes |
|---|
| Cooling type | Active |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I350-AM4, Intel X710-AT2 |
