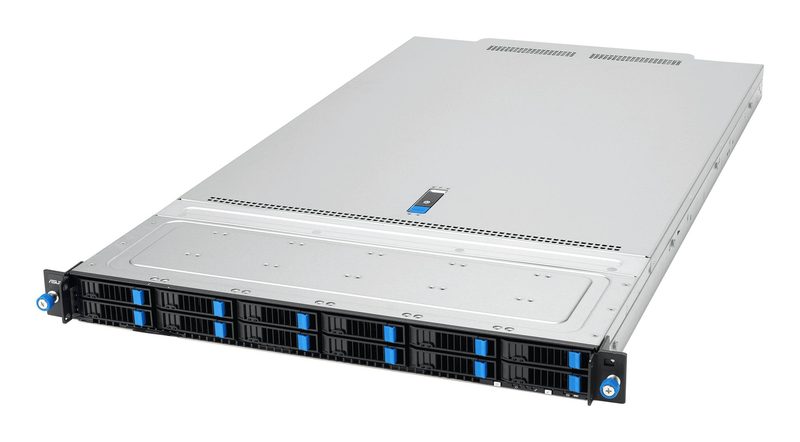

ASUS RS700A-E13-RS12U Rack (1U) Black, Silver
ASUSModel 90SF0451-M004D0
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Redundant power supply (RPS) support
- Yes
- Number of redundant power supplies supported
- 2
Specifications
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| Power supply | 2000 W |
| 80 PLUS certification | 80 PLUS Platinum |
| Supported memory types | DDR5-SDRAM |
|---|
| Built-in processor | No |
|---|
| Supported storage drive types | HDD & SSD |
|---|---|
| Storage drive sizes supported | 2.5,M.2 |
| Number of storage drives supported | 14 |
| SSD form factor | M.2 |
| Hot-swap HDD bays | Yes |
| Maximum internal memory | 3 TB |
|---|---|
| Number of DIMM slots | 24 |
| Supported DIMM module capacities | 32GB, 64GB, 128GB |
| Maximum RDIMM memory | 3 TB |
| Supported RDIMM clock speeds | 6400,5600 MHz |
| Processor manufacturer | AMD |
|---|---|
| Processor family | AMD EPYC |
| Number of processors supported | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
|---|---|
| Number of M.2 (M) slots | 2 |
| Width | 821.7 mm |
|---|---|
| Depth | 483 mm |
| Height | 43.2 mm |
| Weight | 13.8 kg |
| Package weight | 16.7 kg |
|---|
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| On-board graphics card model | Aspeed AST2600 |
|---|---|
| On-board graphics card memory | 64 MB |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
|---|
| LED indicators | Yes |
|---|
| Mini DisplayPorts quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 0 |
| Chassis type | Rack (1U) |
|---|---|
| Product colour | Black, Silver |
| Number of 2.5" bays | 12 |
| Number of fans | 8 fan(s) |
