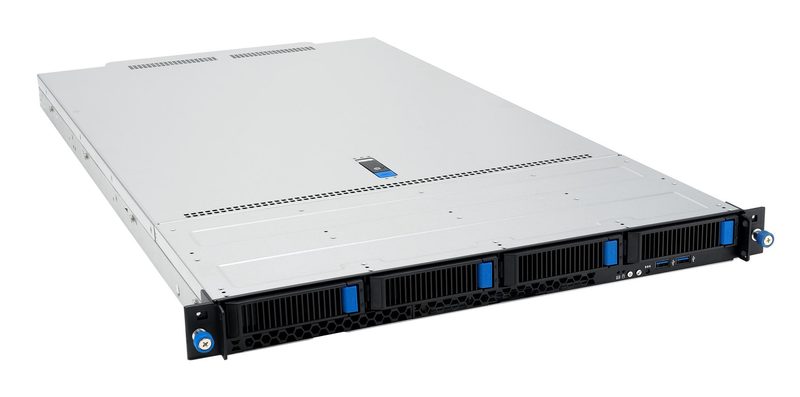

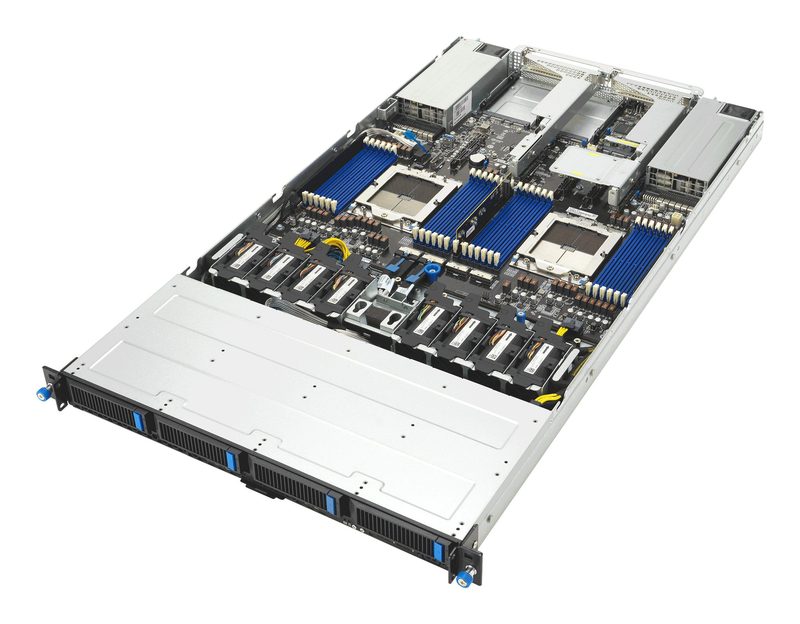

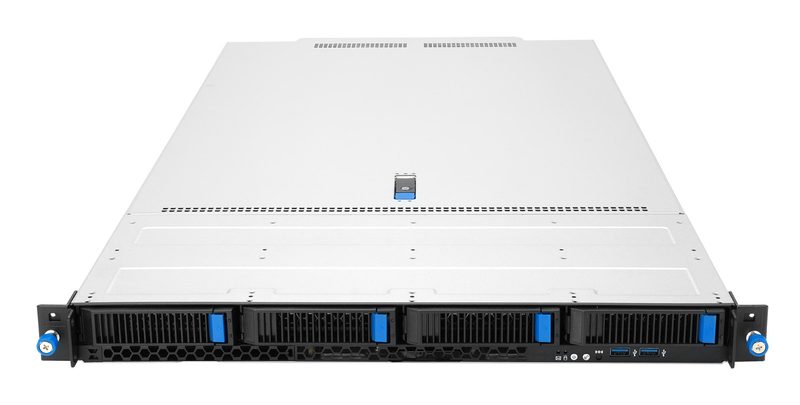

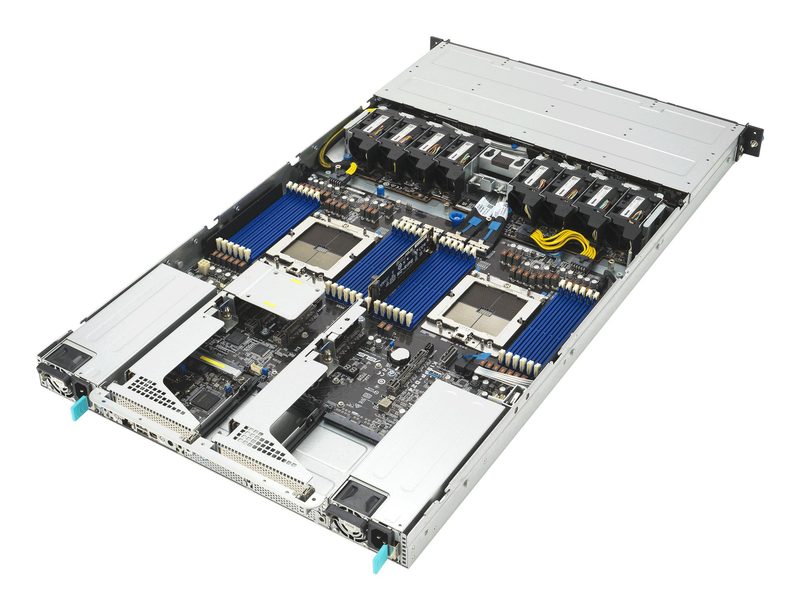

ASUS RS700A-E13-RS4U LGA 6096P Rack (1U) Black, Silver
ASUSModel 90SF0451-M004B0
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 12 A
- Redundant power supply (RPS) support
- Yes
Overview
ASUS RS700A-E13-RS4U LGA 6096P Rack (1U) Black, Silver is a ASUS workstations & server with a certification of BSMI, CE, CB, RCM, FCC(Class A), ISED and a number of m.2 (m) slots of 2. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is BSMI, CE, CB, RCM, FCC(Class A), ISED. Number of M.2 (M) slots is 2. 80 PLUS certification is 80 PLUS Titanium. Power supply is 2000 W. On-board graphics card memory is 64 MB. Supported memory types is DDR5-SDRAM. Weight is 13.8 kg. Height is 43.2 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Input current | 12 A |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| Power supply | 2000 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Certification | BSMI, CE, CB, RCM, FCC(Class A), ISED |
|---|
| Supported memory types | DDR5-SDRAM |
|---|
| Built-in processor | No |
|---|
| Supported storage drive types | HDD & SSD |
|---|---|
| Storage drive sizes supported | M.2,2.5,3.5 |
| Number of storage drives supported | 6 |
| SSD form factor | M.2 |
| Hot-swap HDD bays | Yes |
| Maximum internal memory | 3 TB |
|---|---|
| Number of DIMM slots | 24 |
| Supported DIMM module capacities | 32GB, 64GB, 128GB |
| Maximum RDIMM memory | 3 TB |
| Supported RDIMM clock speeds | 6400,5600 MHz |
| Processor manufacturer | AMD |
|---|---|
| Processor family | AMD EPYC |
| Number of processors supported | 2 |
| Processor socket | LGA 6096P |
| Number of 3.5" bays | 4 |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| Width | 821.7 mm |
|---|---|
| Depth | 483 mm |
| Height | 43.2 mm |
| Weight | 13.8 kg |
| Package weight | 16.7 kg |
|---|
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| On-board graphics card model | Aspeed AST2600 |
|---|---|
| On-board graphics card memory | 64 MB |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
|---|
| LED indicators | Yes |
|---|
| Mini DisplayPorts quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 0 |
| Cooling type | Active |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
| Number of fans | 8 fan(s) |
