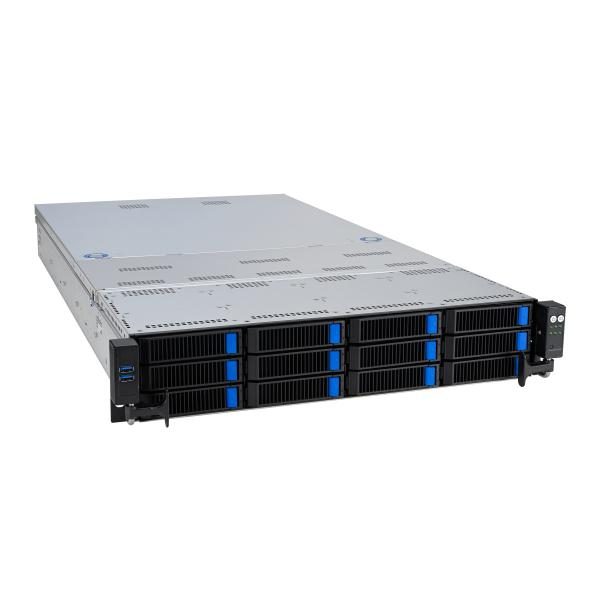

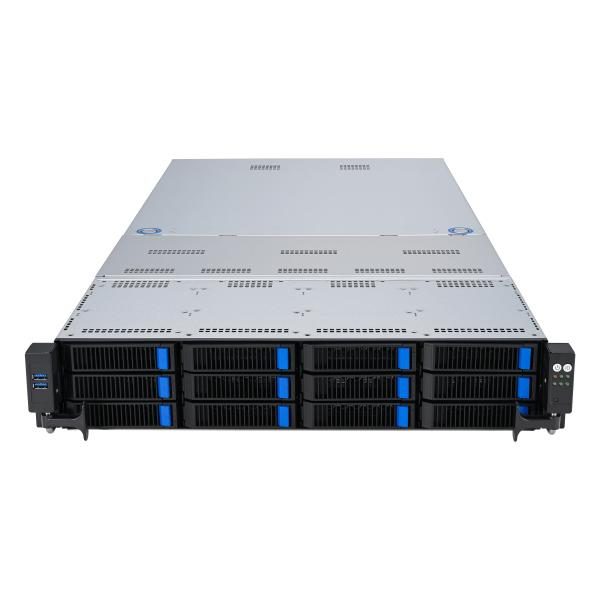

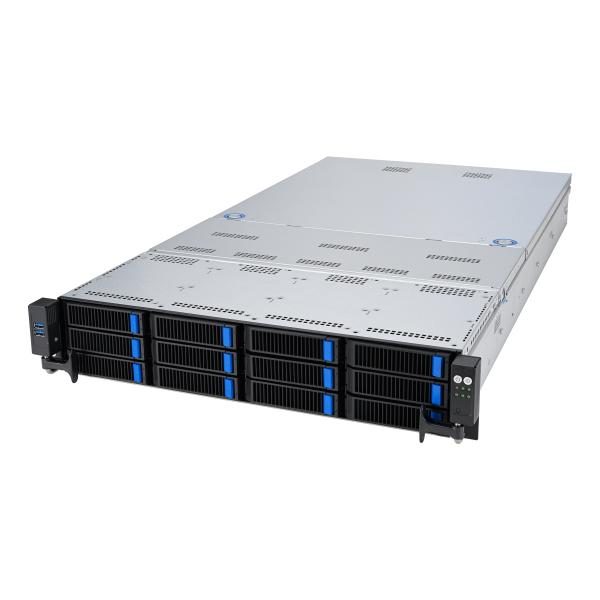

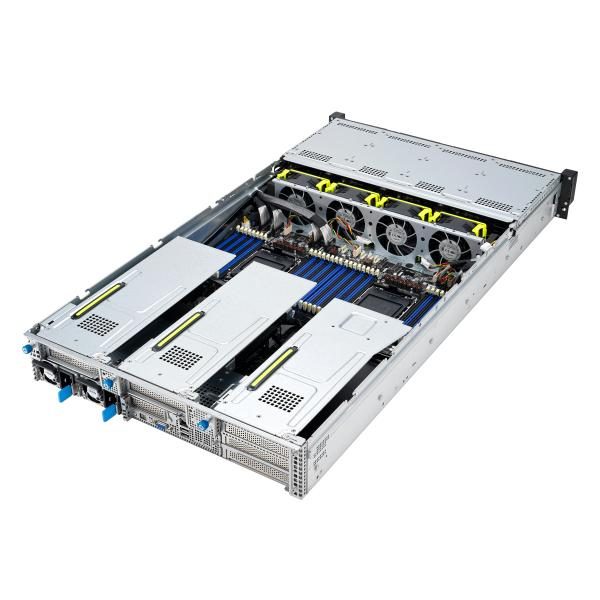

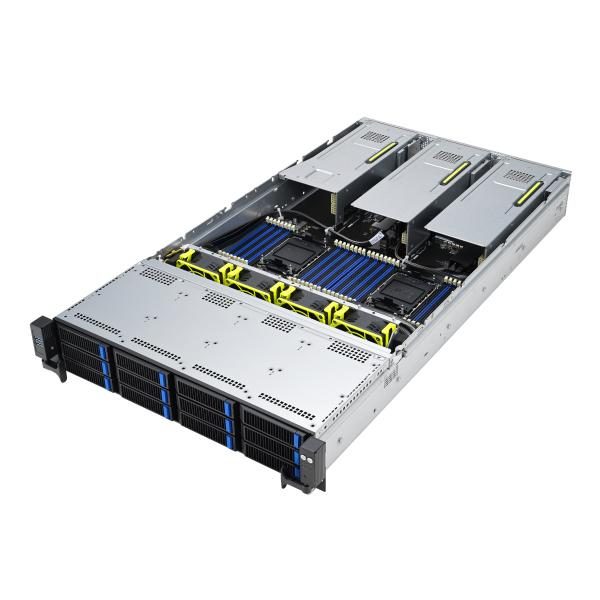

ASUS RS720-E11-RS12U Intel C741 Rack (2U) Black, Silver
ASUSModel 90SF01Z1-M00270
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of main power supplies
- 2
- Power supply
- 2600 W
- 80 PLUS certification
- 80 PLUS Titanium
- On/off switch
- Yes
Overview
ASUS RS720-E11-RS12U Intel C741 Rack (2U) Black, Silver is a ASUS workstations & server with a number of m.2 (m) slots of 2 and a ethernet lan (rj-45) ports of 2. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Number of M.2 (M) slots is 2. Ethernet LAN (RJ-45) ports is 2. Ethernet LAN data rates is 1000,10000 Mbit/s. 80 PLUS certification is 80 PLUS Titanium. Power supply is 2600 W. On-board graphics card memory is 64 MB. Supported memory types is DDR5-SDRAM. Weight is 26.9 kg. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Number of main power supplies | 2 |
|---|---|
| Power supply | 2600 W |
| 80 PLUS certification | 80 PLUS Titanium |
| On/off switch | Yes |
|---|---|
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Supported memory types | DDR5-SDRAM |
|---|
| Motherboard chipset | Intel C741 |
|---|---|
| Built-in processor | No |
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| IPMI LAN (RJ-45) port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 0 |
| Storage drive sizes supported | 2.5,3.5,M.2 |
|---|---|
| Number of storage drives supported | 14 |
| Hot-swap HDD bays | Yes |
| Maximum internal memory | 4 TB |
|---|---|
| Number of DIMM slots | 32 |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB, 256GB |
| Maximum RDIMM memory | 4 TB |
| Supported RDIMM clock speeds | 5600,4400 MHz |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Xeon® Scalable |
| Compatible processor series | Intel® Xeon® |
| Number of processors supported | 1 |
| PCI Express slots version | 5.0 |
| PCI Express x8 slots | 6 |
|---|---|
| PCI Express x16 slots | 3 |
| Number of M.2 (M) slots | 2 |
| Width | 840 mm |
|---|---|
| Depth | 447 mm |
| Height | 88 mm |
| Weight | 26.9 kg |
| On-board graphics card model | Aspeed AST2600 |
|---|---|
| On-board graphics card memory | 64 MB |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
|---|
| LED indicators | Yes |
|---|
| Cooling type | Active |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
| Number of fans | 4 fan(s) |
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel X710-AT2 |
