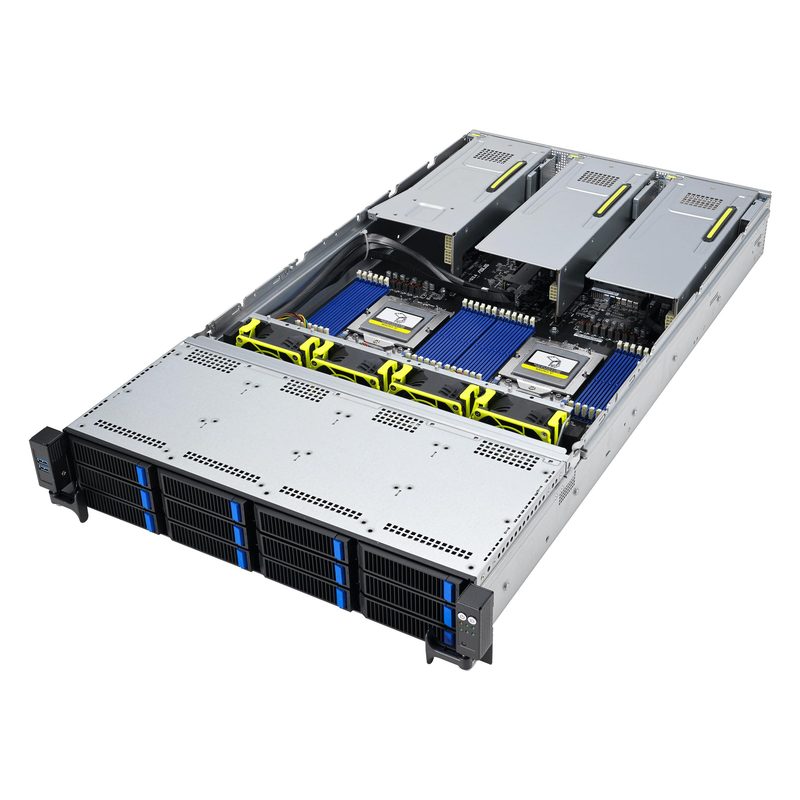

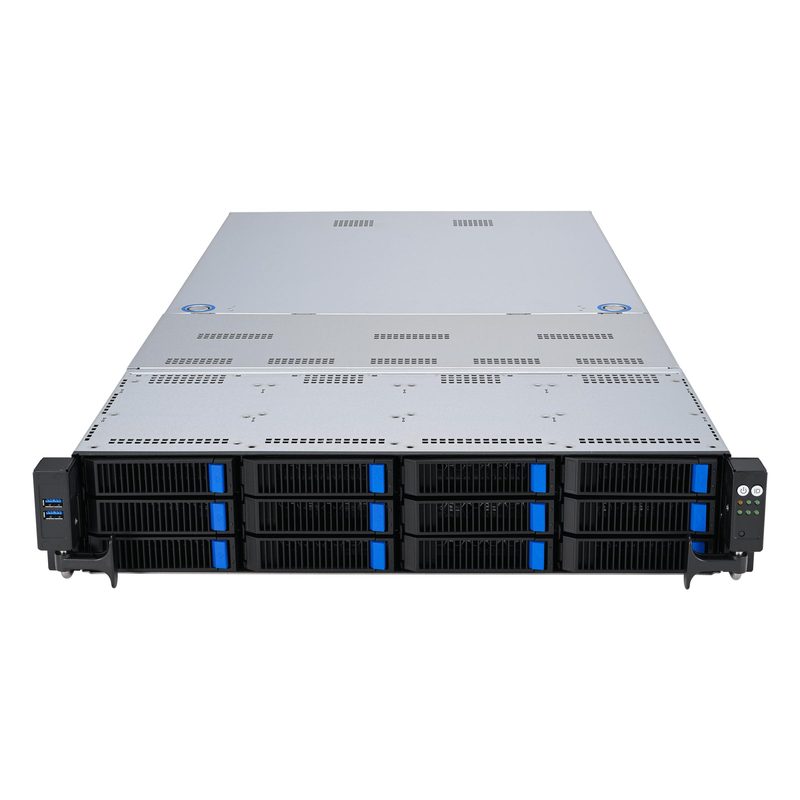

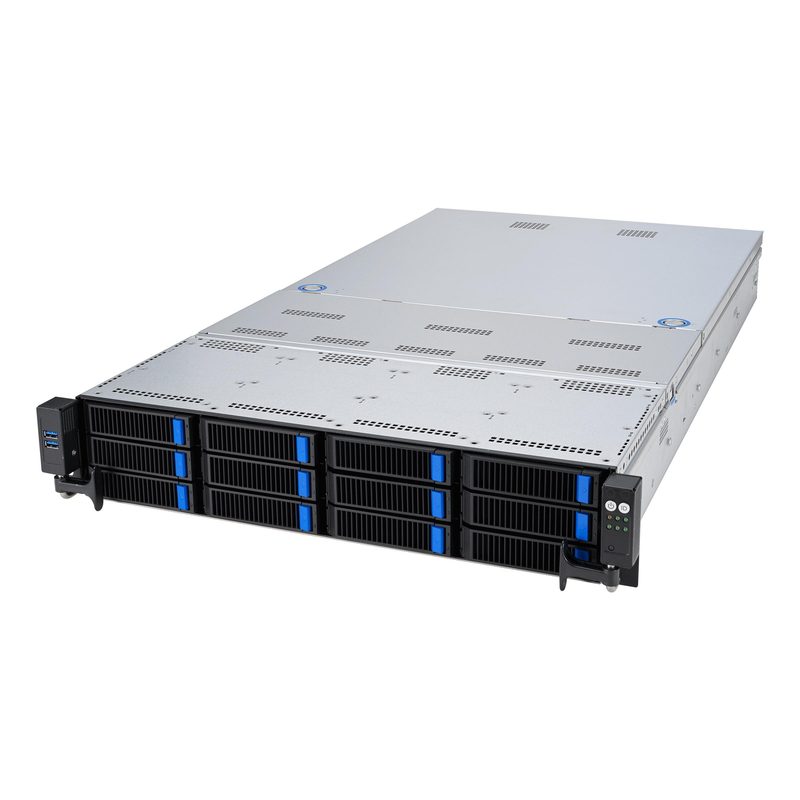

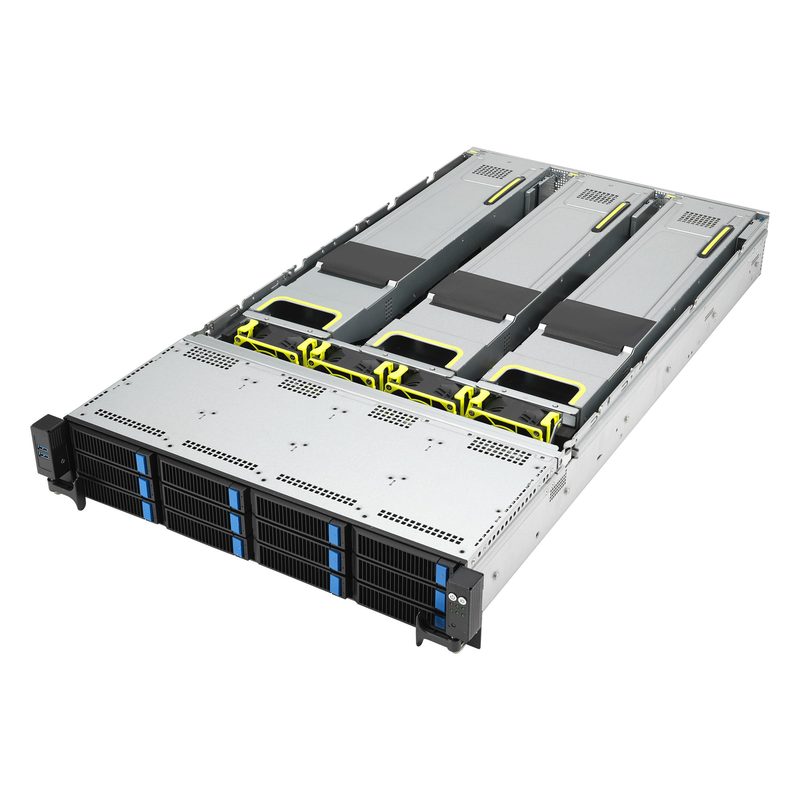

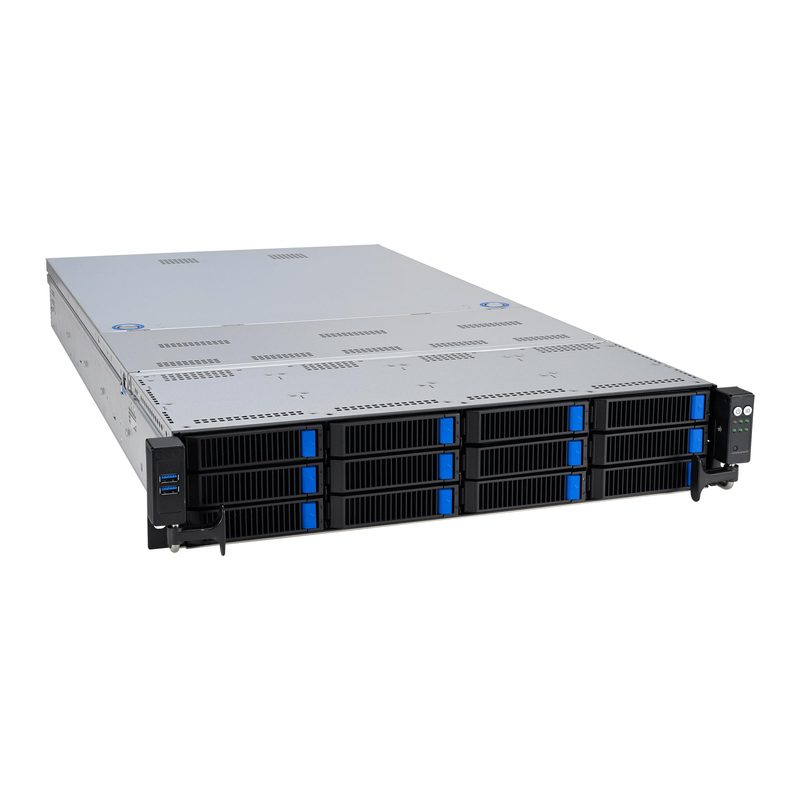

ASUS RS720A-E12-RS12 Socket SP5 Rack (2U) Black, Steel
ASUSModel 90SF02E1-M00680
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 12 A
- Number of main power supplies
- 2
Overview
ASUS RS720A-E12-RS12 Socket SP5 Rack (2U) Black, Steel is a ASUS workstations & server with a certification of BSMI, CE, CB, C-Tick, FCC(Class A) and a number of m.2 (m) slots of 2. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is BSMI, CE, CB, C-Tick, FCC(Class A). Number of M.2 (M) slots is 2. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 1000,10000 Mbit/s. 80 PLUS certification is 80 PLUS Titanium. Power supply is 2600 W. On-board graphics card memory is 64 MB. Supported memory types is DDR5-SDRAM. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Input current | 12 A |
| Number of main power supplies | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 2600 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | BSMI, CE, CB, C-Tick, FCC(Class A) |
| Supported memory types | DDR5-SDRAM |
|---|
| Built-in processor | No |
|---|
| Supported storage drive types | HDD & SSD |
|---|---|
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Number of storage drives supported | 14 |
| SSD form factor | M.2 |
| Hot-swap HDD bays | Yes |
| Number of DIMM slots | 24 |
|---|---|
| Supported DIMM module capacities | 32GB, 64GB, 128MB |
| Maximum RDIMM memory | 3 TB |
| Supported RDIMM clock speeds | 4400,4800 MHz |
| Compatible processor series | AMD EPYC 9004 |
|---|---|
| Number of processors supported | 2 |
| Processor socket | Socket SP5 |
| PCI Express slots version | 4.0, 5.0 |
| Number of 3.5" bays | 12 |
|---|---|
| PCI Express x8 slots | 6 |
| PCI Express x16 slots | 3 |
| Number of M.2 (M) slots | 2 |
| Width | 840 mm |
|---|---|
| Depth | 449 mm |
| Height | 88.1 mm |
| Weight | 19.3 kg |
| Package weight | 25.8 kg |
|---|
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| On-board graphics card model | Aspeed AST2600 |
|---|---|
| On-board graphics card memory | 64 MB |
| Supported storage drive interfaces | Serial ATA III, Serial Attached SCSI (SAS) |
|---|
| LED indicators | Yes |
|---|
| Cooling type | Active |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Steel |
| Number of fans | 2 fan(s) |
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I350-AM4 |
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 0 |
