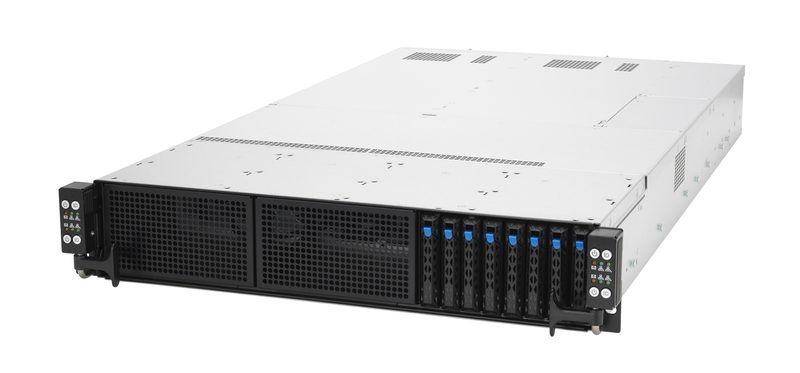

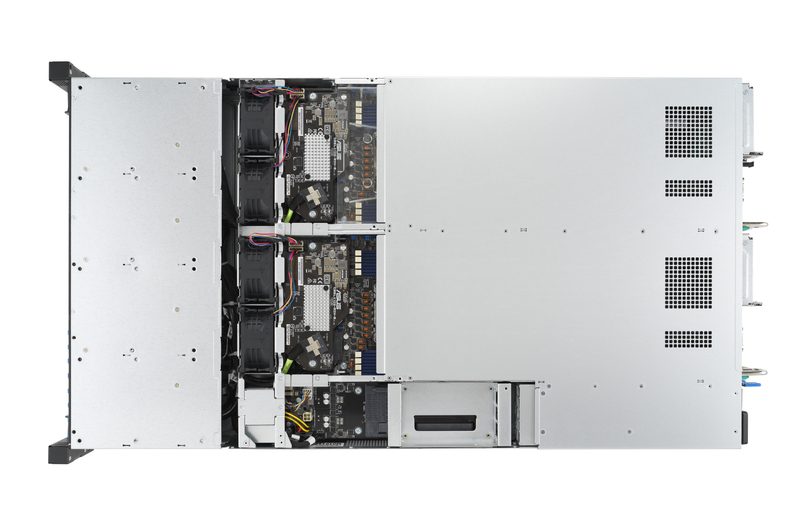

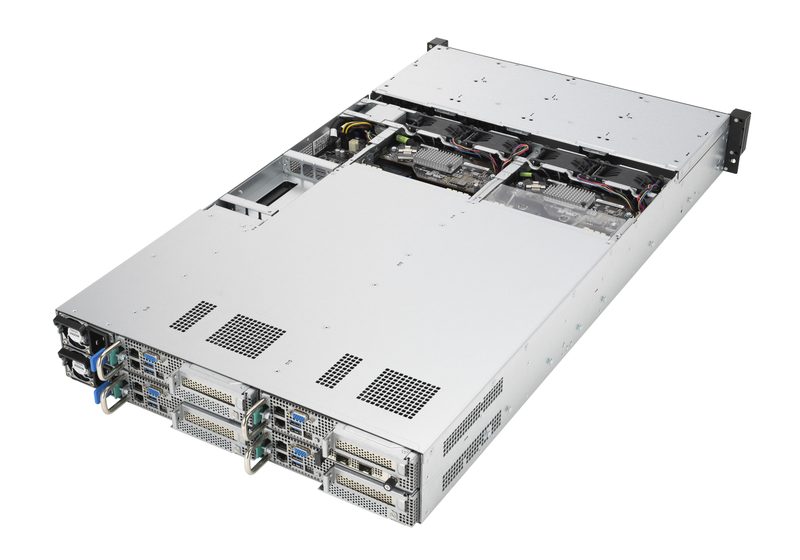

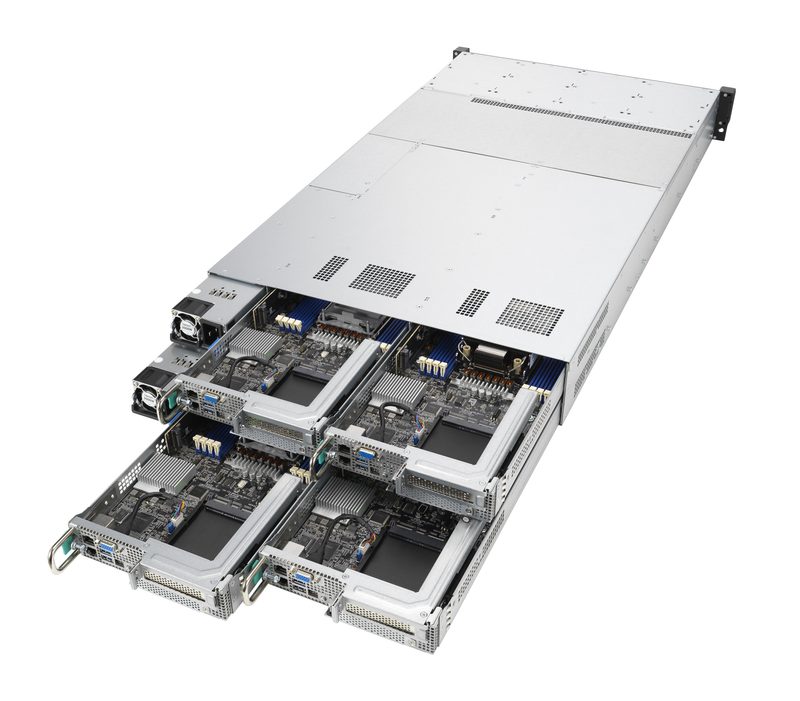

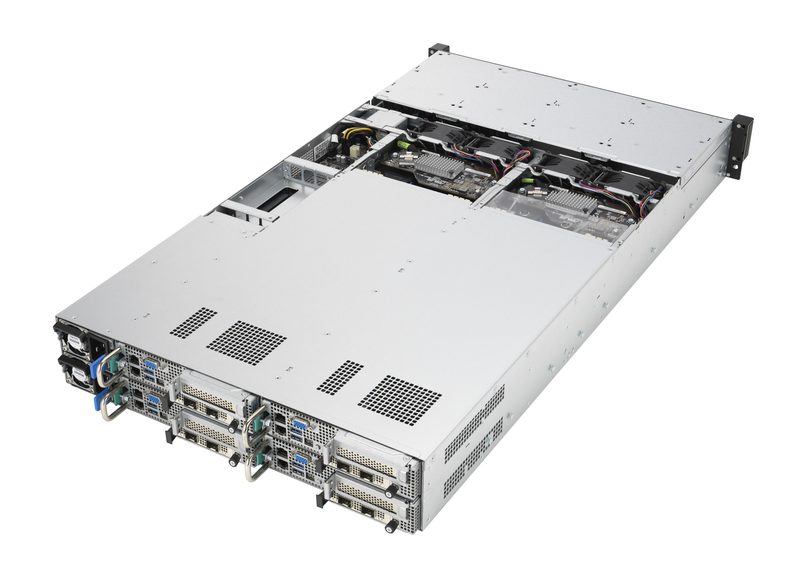

ASUS RS720Q-E10-RS8U Intel C621A LGA 4189 Rack (2U) Black, Silver
ASUSModel 90SF0141-M000C0
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- AC input voltage
- 200 - 240 V
- AC input frequency
- 50/60 Hz
- Number of main power supplies
- 2
- Power supply
- 3000 W
Overview
ASUS RS720Q-E10-RS8U Intel C621A LGA 4189 Rack (2U) Black, Silver is a ASUS workstations & server with a number of m.2 (m) slots of 2 and a ethernet lan (rj-45) ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Number of M.2 (M) slots is 2. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 10,100,1000 Mbit/s. 80 PLUS certification is 80 PLUS Titanium. Power supply is 3000 W. On-board graphics card memory is 64 MB. Supported memory types is DDR4-SDRAM. Weight is 39 kg. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| AC input voltage | 200 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Number of main power supplies | 2 |
| Power supply | 3000 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Supported memory types | DDR4-SDRAM |
|---|
| Motherboard chipset | Intel C621A |
|---|---|
| Built-in processor | No |
| Storage drive sizes supported | 2.5,M.2 |
|---|---|
| Number of storage drives supported | 8 |
| SSD form factor | M.2 |
| Hot-swap HDD bays | Yes |
| Maximum internal memory | 4 TB |
|---|---|
| Number of DIMM slots | 16 |
| Supported DIMM module capacities | 32GB, 64GB, 128GB, 256GB, 512GB |
| Supported RDIMM clock speeds | 2933,3200 MHz |
| Compatible processor series | Intel® Xeon® |
|---|---|
| Number of processors supported | 2 |
| Processor socket | LGA 4189 |
| PCI Express slots version | 4.0 |
| PCI Express x16 slots | 1 |
|---|---|
| Number of M.2 (M) slots | 2 |
| Width | 800 mm |
|---|---|
| Depth | 444 mm |
| Height | 88 mm |
| Weight | 39 kg |
| Package weight | 43 kg |
|---|
| Operating temperature (T-T) | 10 - 30 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| On-board graphics card model | Aspeed AST2600 |
|---|---|
| On-board graphics card memory | 64 MB |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
|---|
| LED indicators | Yes |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Chassis type | Rack (2U) |
|---|---|
| Product colour | Black, Silver |
| Number of 2.5" bays | 8 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I210-AT |
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 0 |
