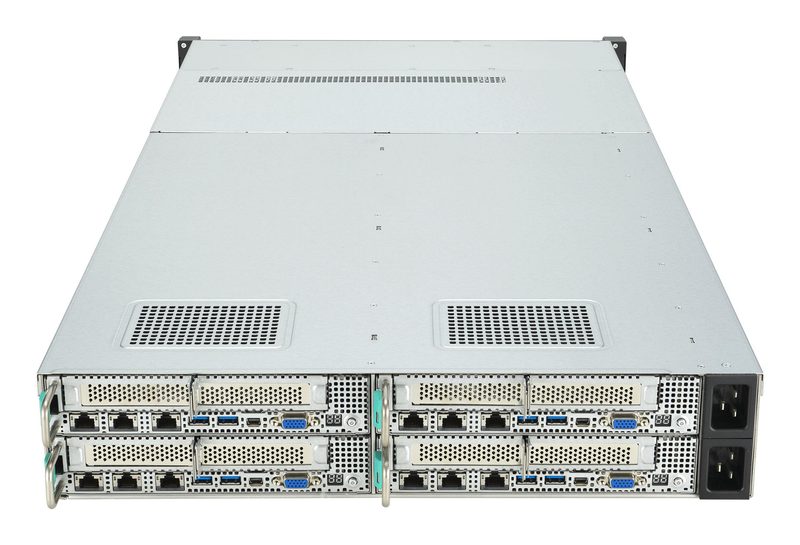

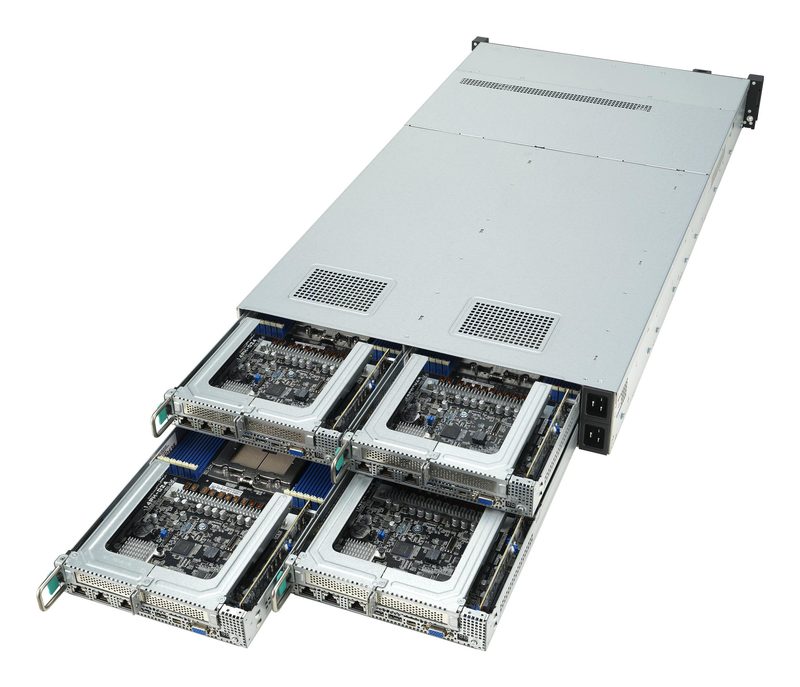

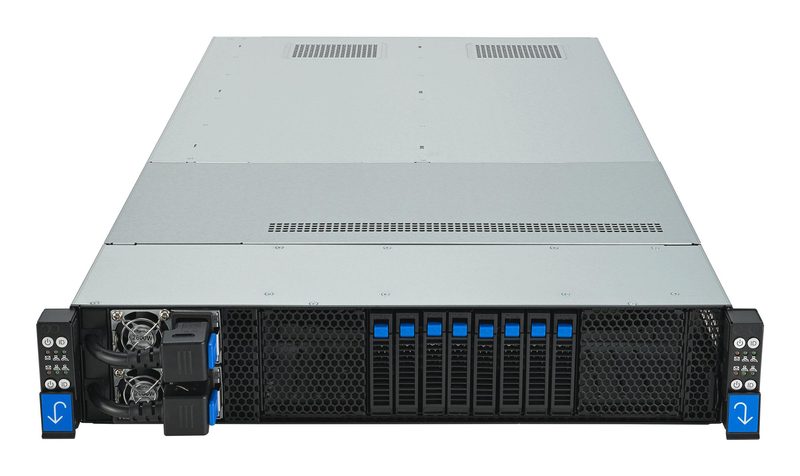

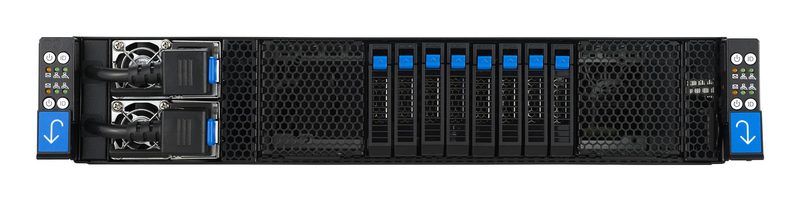

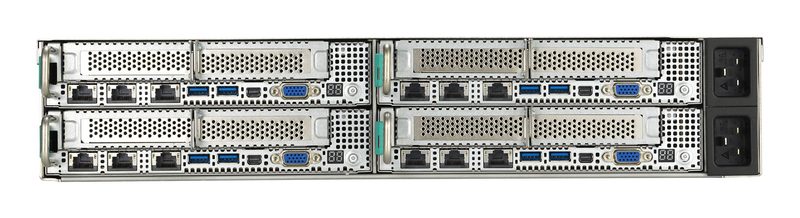

ASUS RS720QA-E12-RS8U LGA 6096 Rack (2U) Black, Silver
ASUSModel 90SF02R1-M000L0
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of main power supplies
- 2
- Redundant power supply (RPS) support
- Yes
- Number of redundant power supplies supported
- 2
- Power supply
- 2600 W
Overview
ASUS RS720QA-E12-RS8U LGA 6096 Rack (2U) Black, Silver is a ASUS workstations & server with a number of m.2 (m) slots of 8 and a ethernet lan (rj-45) ports of 8. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Number of M.2 (M) slots is 8. Ethernet LAN (RJ-45) ports is 8. Ethernet LAN data rates is 10,100,1000,10000 Mbit/s. 80 PLUS certification is 80 PLUS Titanium. Power supply is 2600 W. On-board graphics card memory is 64 MB. Supported memory types is DDR5-SDRAM. Weight is 29.2 kg. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Number of main power supplies | 2 |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| Power supply | 2600 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 8 |
| Supported memory types | DDR5-SDRAM |
|---|
| Built-in processor | No |
|---|
| Storage drive sizes supported | 2.5,M.2 |
|---|---|
| Number of storage drives supported | 16 |
| SSD form factor | M.2 |
| Hot-swap HDD bays | Yes |
| Maximum internal memory | 6 TB |
|---|---|
| Number of DIMM slots | 96 |
| Supported DIMM module capacities | 32GB, 64GB |
| Supported RDIMM clock speeds | 4800 MHz |
| Ethernet interface type | 10 Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Compatible processor series | AMD EPYC 9004 |
|---|---|
| Processor series | AMD EPYC™ 9004 Series |
| Number of processors supported | 8 |
| Processor socket | LGA 6096 |
| PCI Express slots version | 5.0 |
| PCI Express x16 (Gen 5.x) slots | 8 |
|---|---|
| Number of M.2 (M) slots | 8 |
| Width | 847 mm |
|---|---|
| Depth | 444 mm |
| Height | 87.3 mm |
| Weight | 29.2 kg |
| Package weight | 33.4 kg |
|---|
| Operating temperature (T-T) | 10 - 30 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| On-board graphics card model | Aspeed AST2600 |
|---|---|
| On-board graphics card memory | 64 MB |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
|---|
| LED indicators | Yes |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| Mini DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 2.0 ports quantity | 0 |
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Chassis type | Rack (2U) |
|---|---|
| Product colour | Black, Silver |
| Number of 2.5" bays | 8 |
