Image 1 of 5
ASUSModel 90SF01U1-M00H80

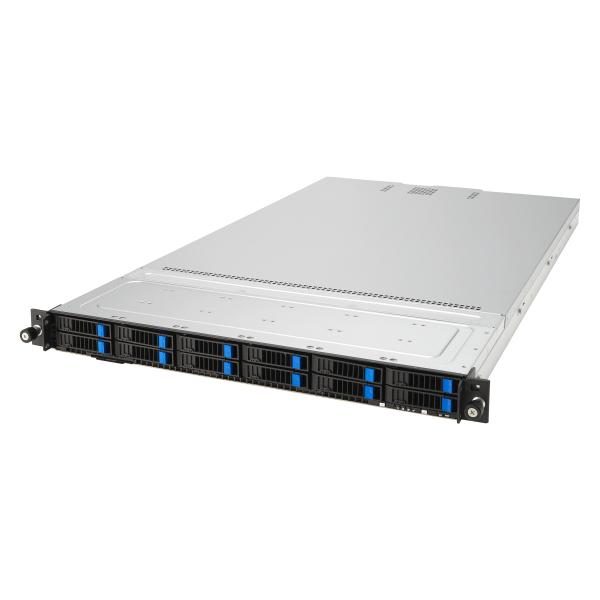

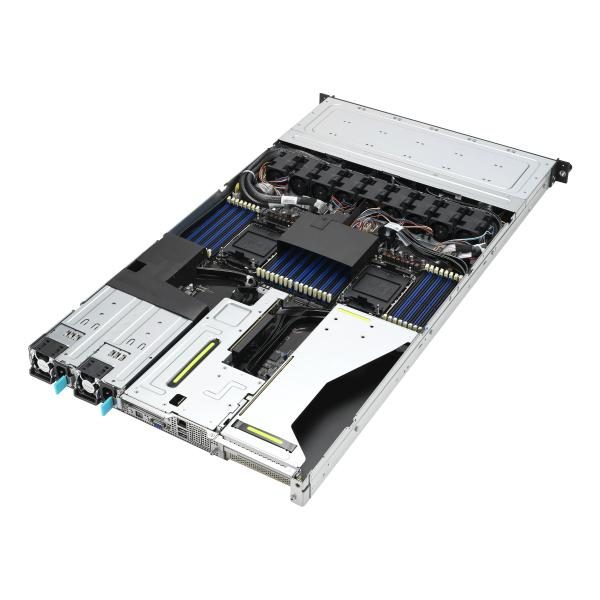

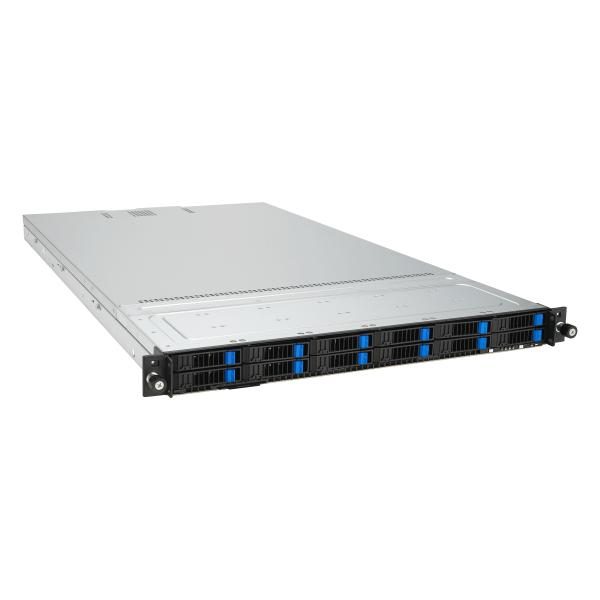

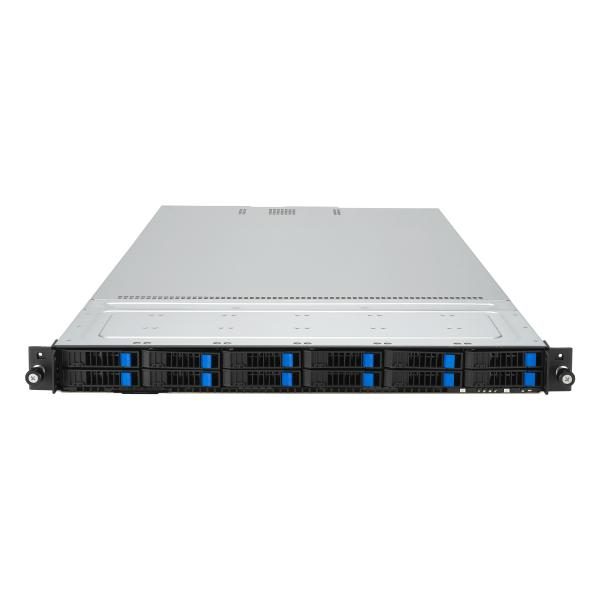

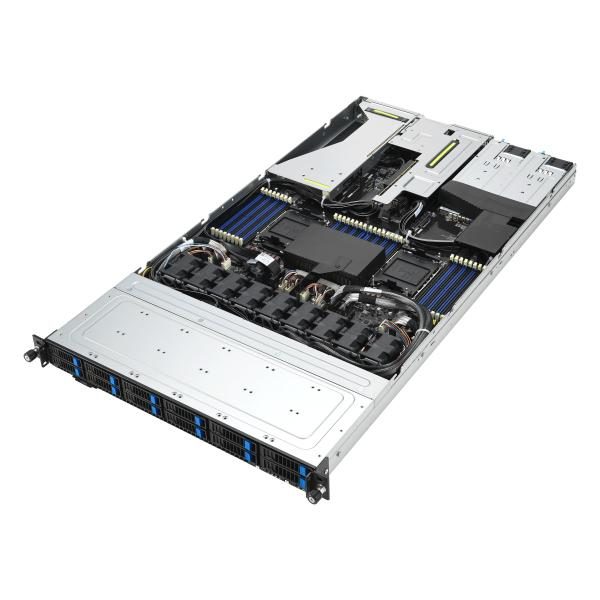

ASUS SRS700-E11-RS12U Intel C741 Rack (1U) Black, Steel
Available to order
ASUS Workstations & Server. Available from OfficeLand with nationwide delivery; request a quote for pricing.
At a glance
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Number of main power supplies
- 2
- Redundant power supply (RPS) support
- Yes
- Number of redundant power supplies supported
- 2
- Power supply
- 1600 W
Request a quote for pricing
Answered within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, SON certified. Quotes answered within one business day.
Specifications
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Number of main power supplies | 2 |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| Power supply | 1600 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Cooling type | Active |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| Number of 2.5" bays | 12 |
| Number of fans | 9 fan(s) |
| Redundant fans support | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Supported memory types | DDR5-SDRAM |
|---|
| Motherboard chipset | Intel C741 |
|---|---|
| Built-in processor | No |
| VGA (D-Sub) ports quantity | 2 |
|---|---|
| IPMI LAN (RJ-45) port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 0 |
| On-board graphics card model | Aspeed AST2600 |
|---|---|
| Maximum graphics card memory | 64 MB |
| On-board graphics card memory | 64 MB |
| Supported storage drive types | HDD & SSD |
|---|---|
| Storage drive sizes supported | 2.5,M.2 |
| Number of storage drives supported | 14 |
| SSD form factor | M.2 |
| Hot-swap HDD bays | Yes |
| Number of DIMM slots | 32 |
|---|---|
| Supported RDIMM clock speeds | 4400,4800 MHz |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Xeon® Scalable |
| Compatible processor series | Intel® Xeon® |
| Processor generation | Intel Xeon Scalable 4th Gen |
| Number of processors supported | 2 |
| PCI Express slots version | 5.0 |
| Width | 439.5 mm |
|---|---|
| Depth | 842.5 mm |
| Height | 44 mm |
| Weight | 22.6 kg |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
|---|
| LED indicators | Yes |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| PCI Express x8 slots | 1 |
|---|---|
| PCI Express x16 slots | 2 |
| PCI slots | 4 |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I350-AM4, Intel X710-AT2 |
